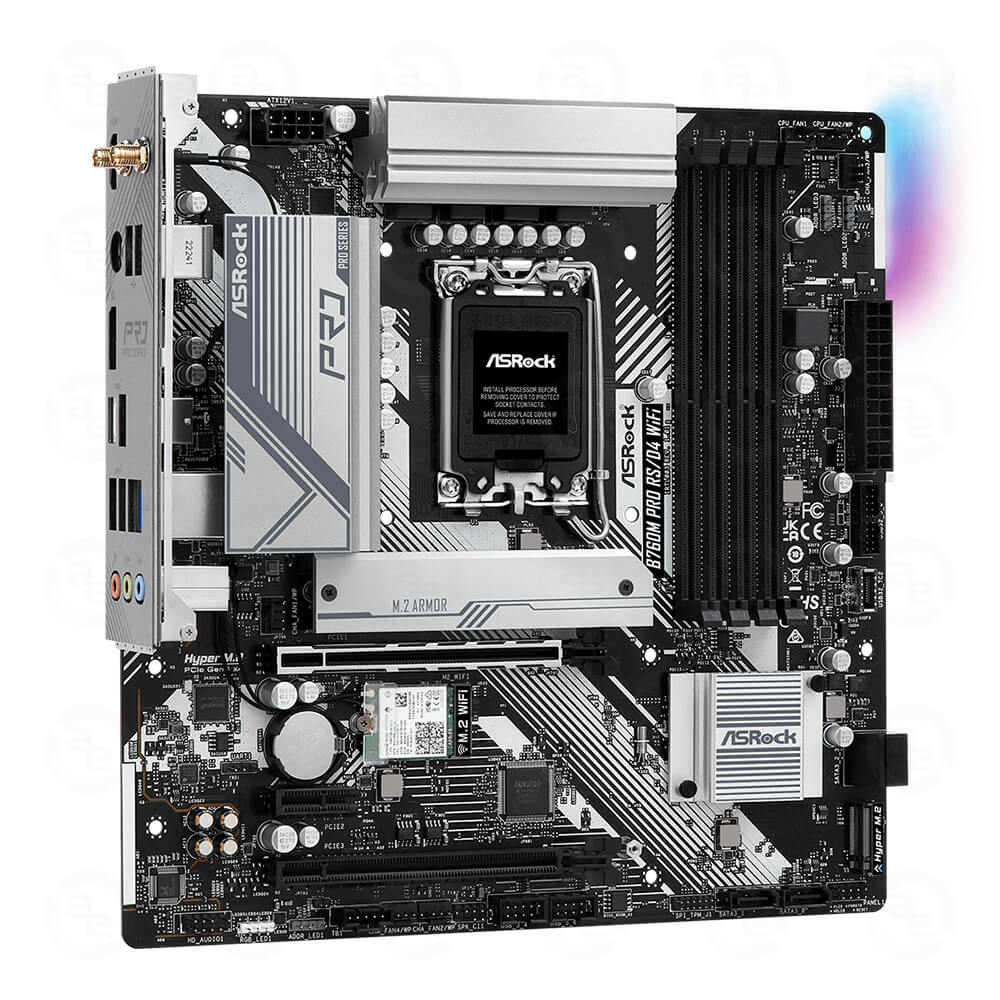

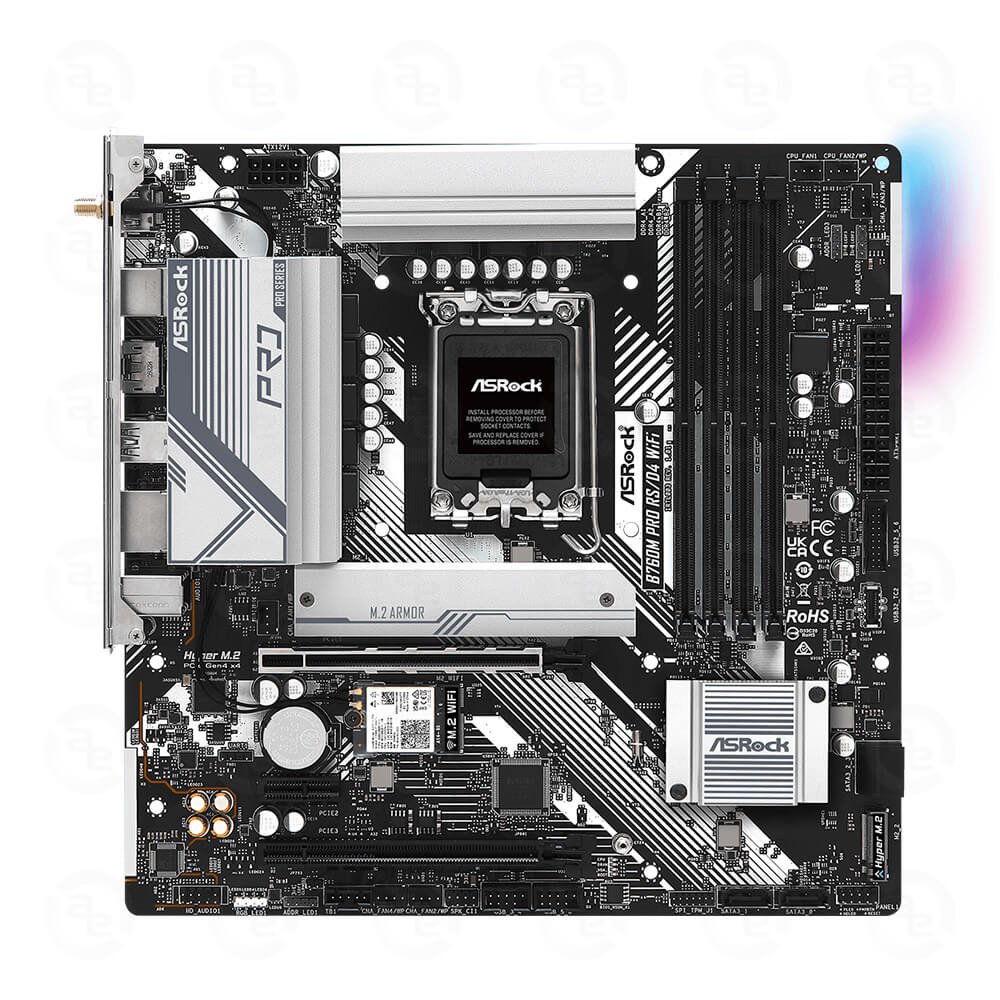

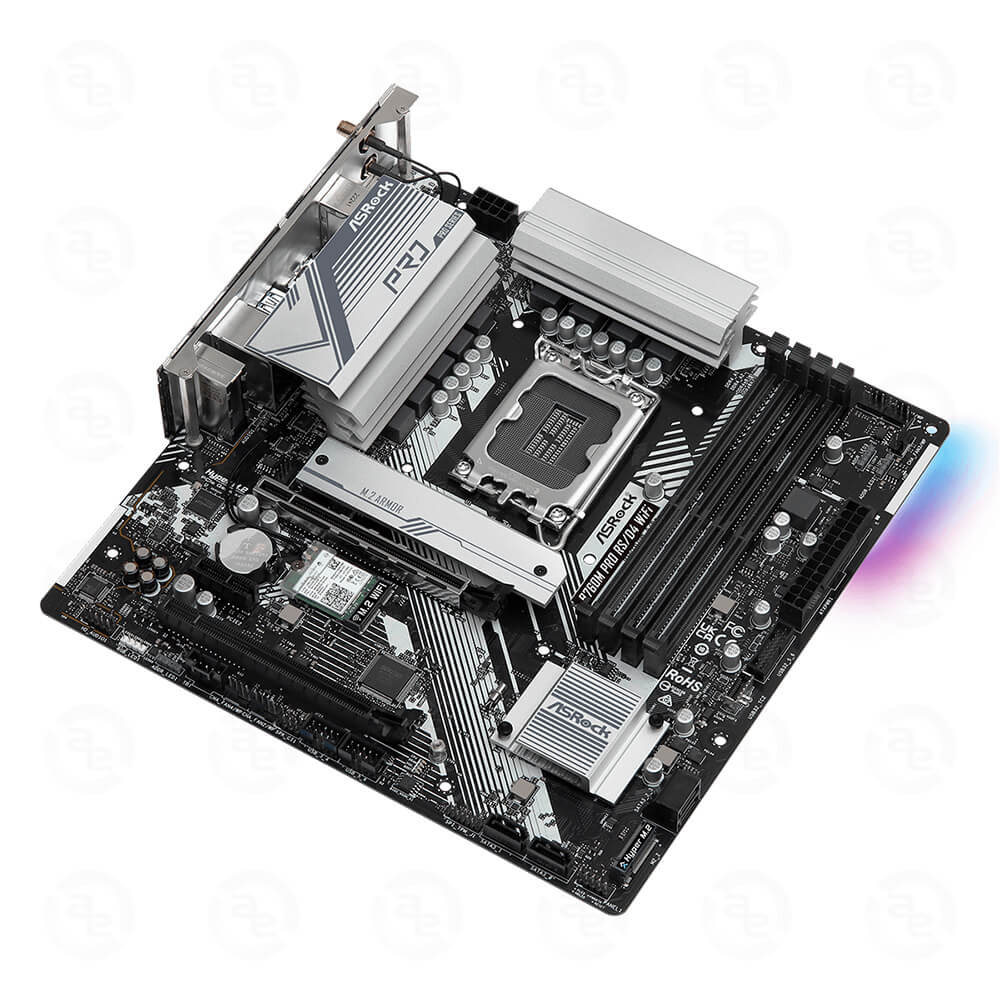

Name: Mainboard Asrock B760M PRO RS/D4 WIFI
Brand: Intel
SKU: 1391
Price: 3499000 VND
Availability: InStock
Rating: 5 (151 reviews)

Mainboard Asrock B760M PRO RS/D4 WIFI

Mã SP: SP1391

5 đánh giá Lượt xem: 151

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot

Khe cắm ổ cứng: M.2 connectors, 4 x SATA 6Gb/s ports

Giá niêm yết: ~~4,499,000 đ~~

Giá khuyến mại:

3,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock B760M PRO RS/D4 WIFI

3,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

Model B760M PRO RS/D4 WIFI

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)

Khe cắm mở rộng CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel®CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks - Supports AMD CrossFire™

Ổ cứng hỗ trợ CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal) - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

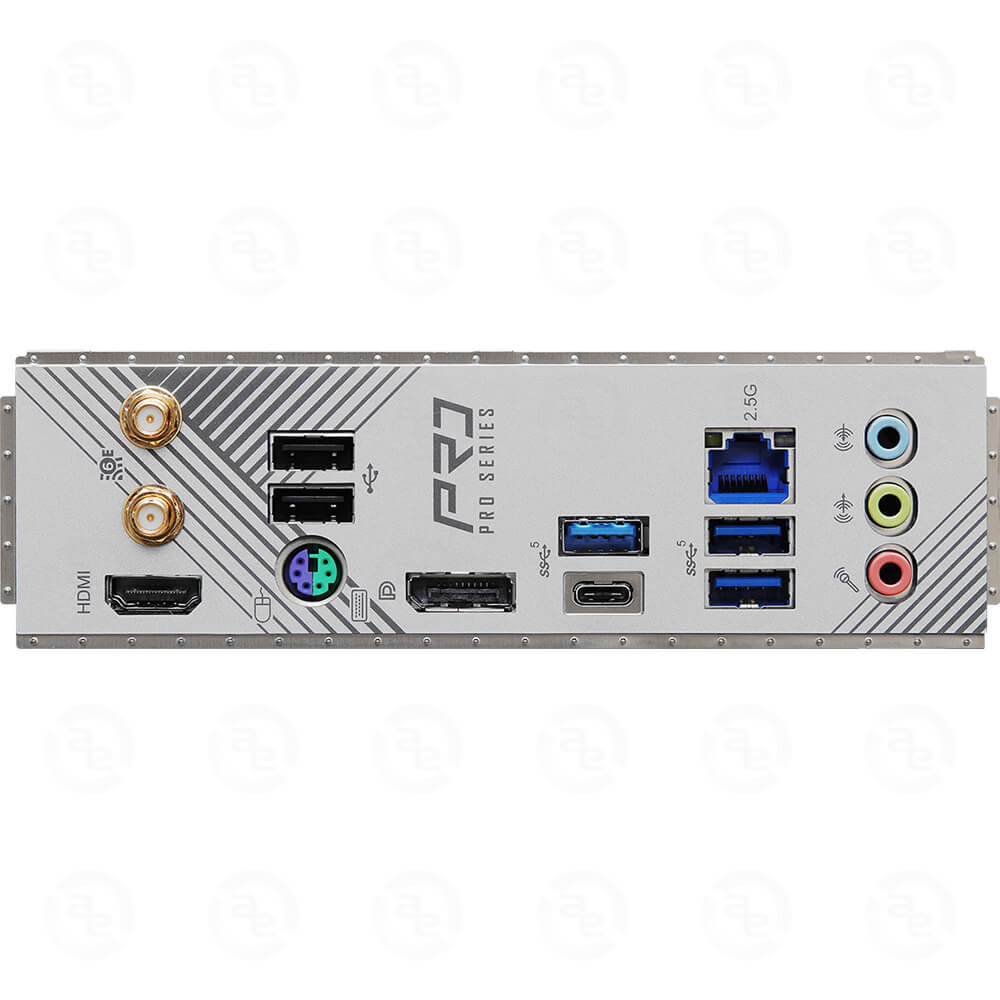

Cổng kết nối (Back Panel) - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO

Kích cỡ Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
