Name: Mainboard Asrock X870E Nova Wifi DDR5
Brand: AMD
SKU: 1783
Price: 11799000 VND
Availability: InStock
Rating: 5 (558 reviews)

Mainboard Asrock X870E Nova Wifi DDR5

Mã SP: SP1783

5 đánh giá Lượt xem: 558

Socket: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode, 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode, 1 x Vertical M.2 Socket (Key E)

Khe cắm ổ cứng: 1 x Blazing M.2 Socket (M2_1, Key M), 1 x Hyper M.2 Socket (M2_2, Key M), 1 x Hyper M.2 Socket (M2_3, Key M), 1 x Hyper M.2 Socket (M2_4, Key M), 1 x M.2 Socket (M2_5, Key M), 2 x SATA3 6.0 Gb/s Connectors, 2 x SATA3 6.0 Gb/s Connectors

Giá niêm yết: ~~13,599,000 đ~~

Giá khuyến mại:

11,799,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock X870E Nova Wifi DDR5

11,799,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

Model PHANTOM GAMING X870E Nova WiFi

CPU hỗ trợ AMD

Chipset AMD X870E

RAM hỗ trợ - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Khe cắm mở rộng CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Ổ cứng hỗ trợ CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal) - 3 x Thermistor Cable Headers - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED

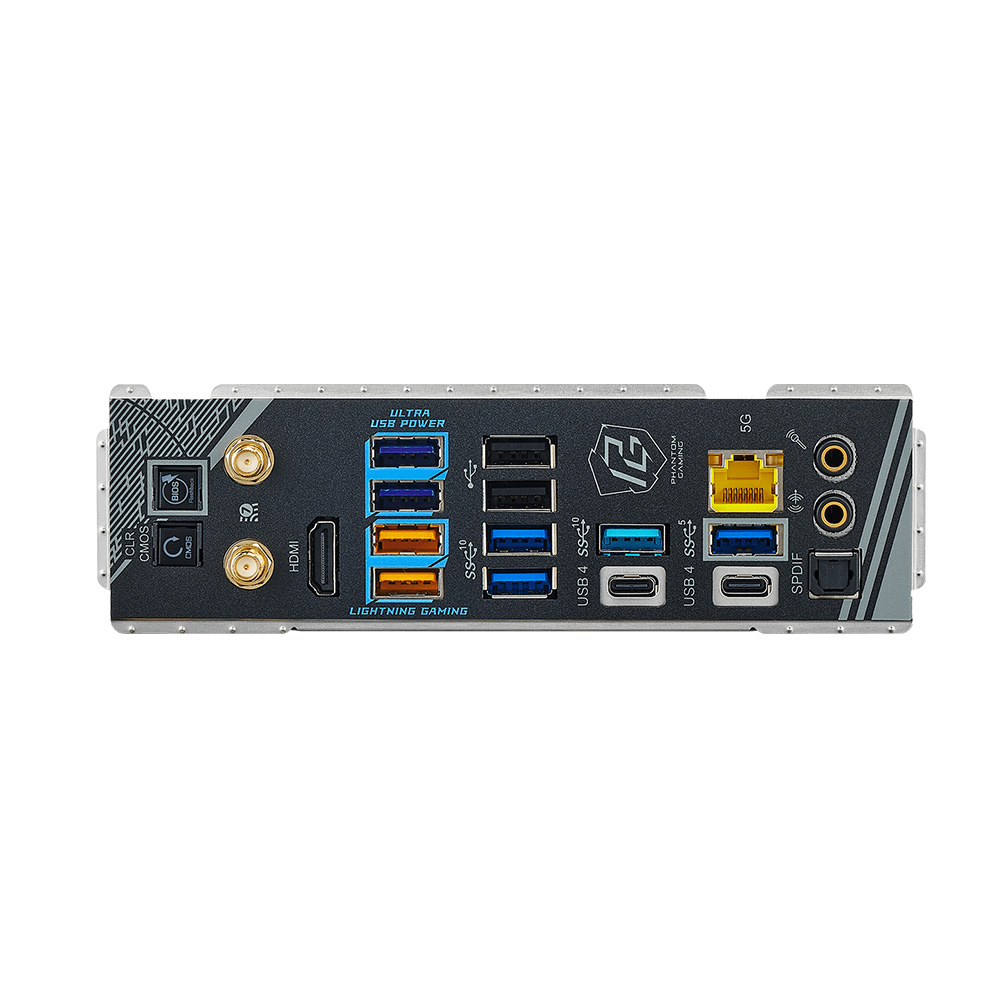

Cổng kết nối (Back Panel) - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

LAN / Wireless - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO

Kích cỡ - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB

Mainboard Asrock X870E Nova Wifi DDR5
