Name: Mainboard Asus PRIME B840M-A-CSM DDR5
Brand: ASUS
SKU: 2240
Price: 5399000 VND
Availability: InStock
Rating: 5 (217 reviews)

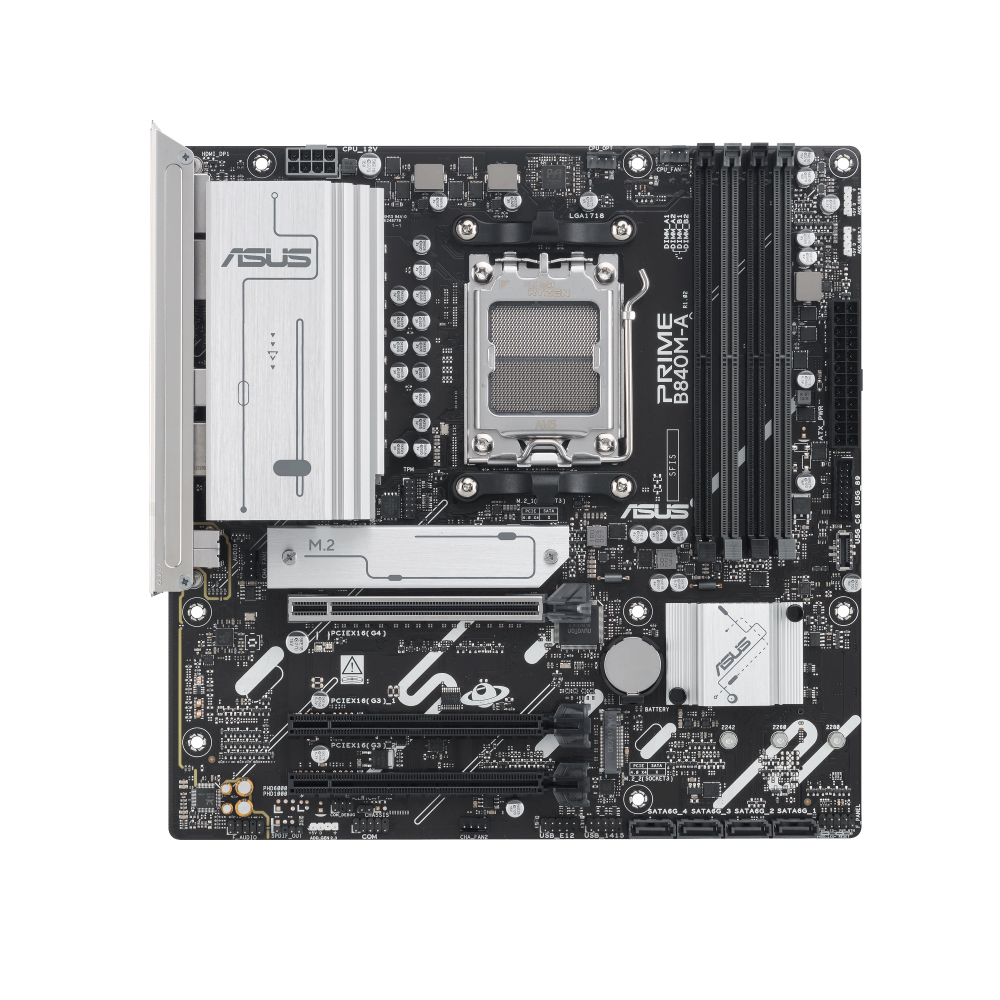

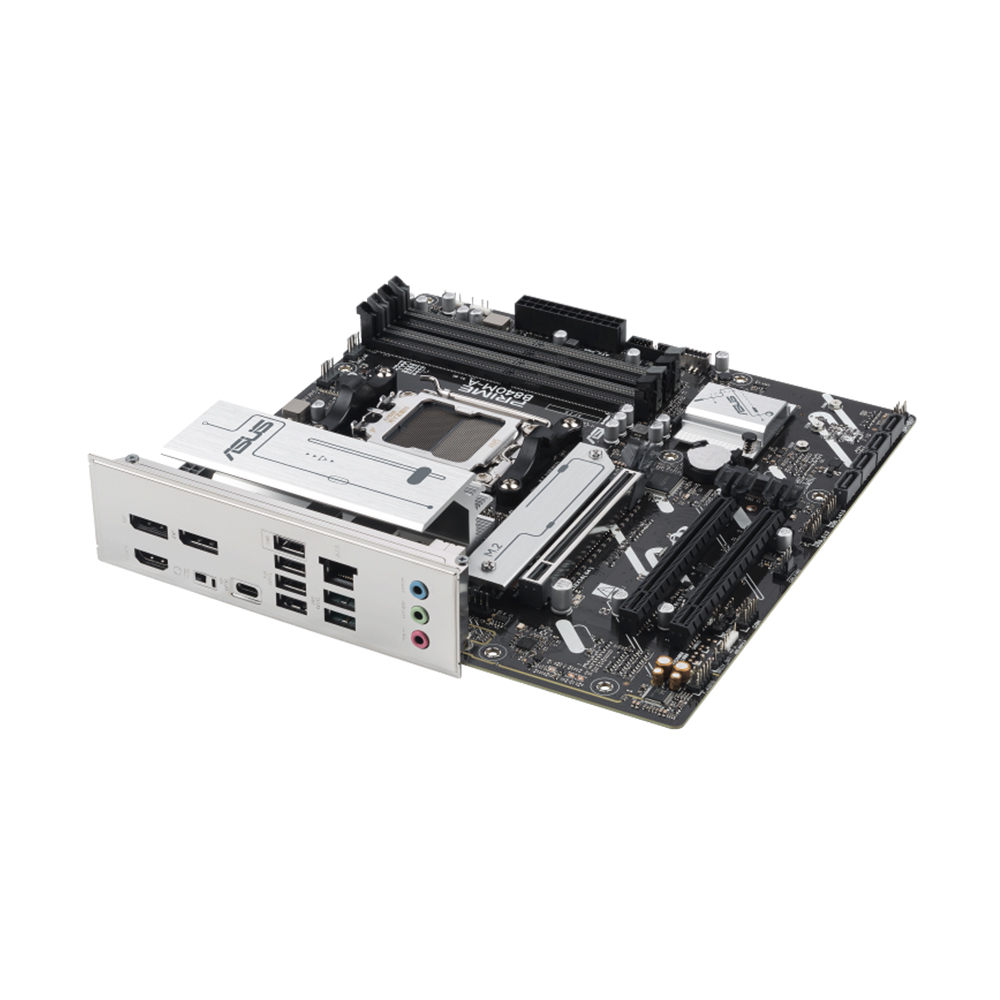

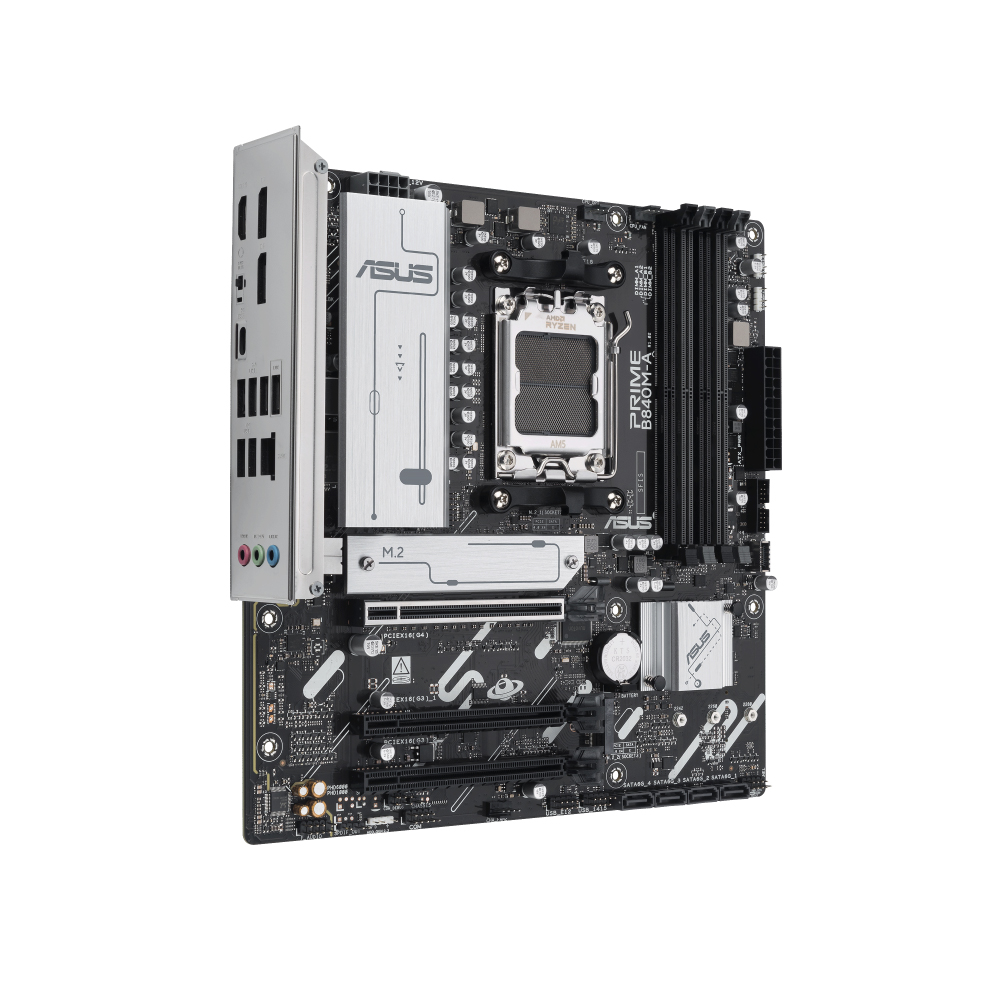

Mainboard Asus PRIME B840M-A-CSM DDR5

Mã SP: SP2240

5 đánh giá Lượt xem: 217

Socket: AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Kích thước: micro-ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode)

Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~5,939,000 đ~~

Giá khuyến mại:

5,399,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PRIME B840M-A-CSM DDR5

5,399,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ AMD

Chipset AMD B840 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 256GB, DDR5 Supports up to 7600+MT/s (OC) with Ryzen™9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM

Khe cắm mở rộng AMD Ryzen™9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B840 Chipset 2 x PCIe 3.0 x16 slots (support x1 mode)

Ổ cứng hỗ trợ Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B840 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header

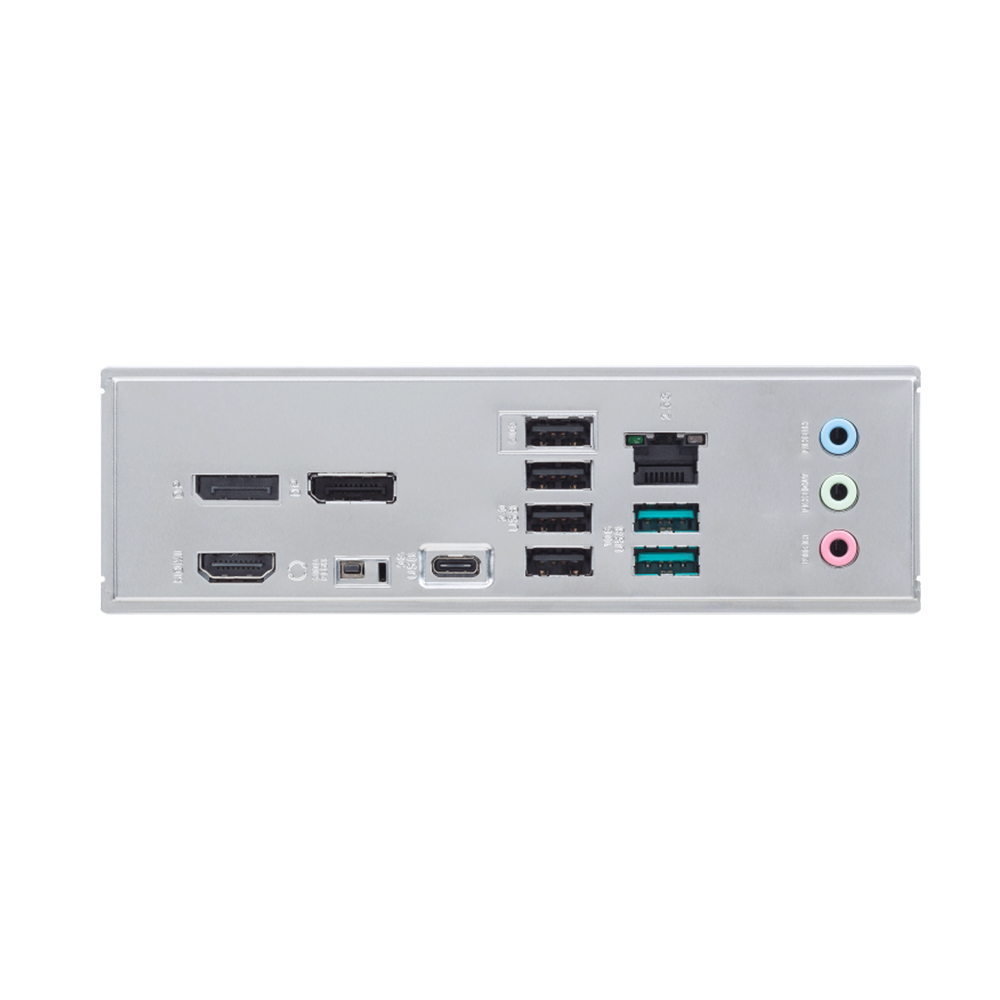

Cổng kết nối (Back Panel) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI™port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™button

LAN / Wireless 1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Kích cỡ micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Mainboard Asus PRIME B840M-A-CSM DDR5
