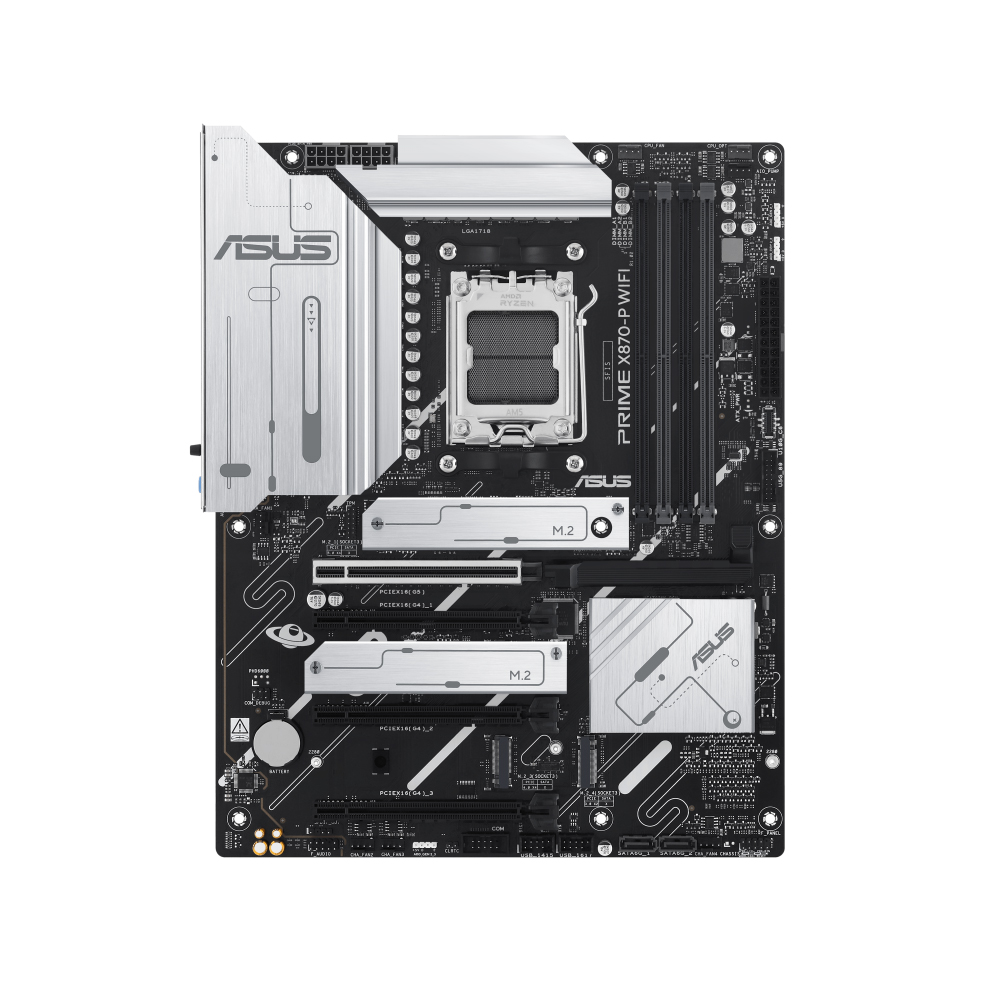

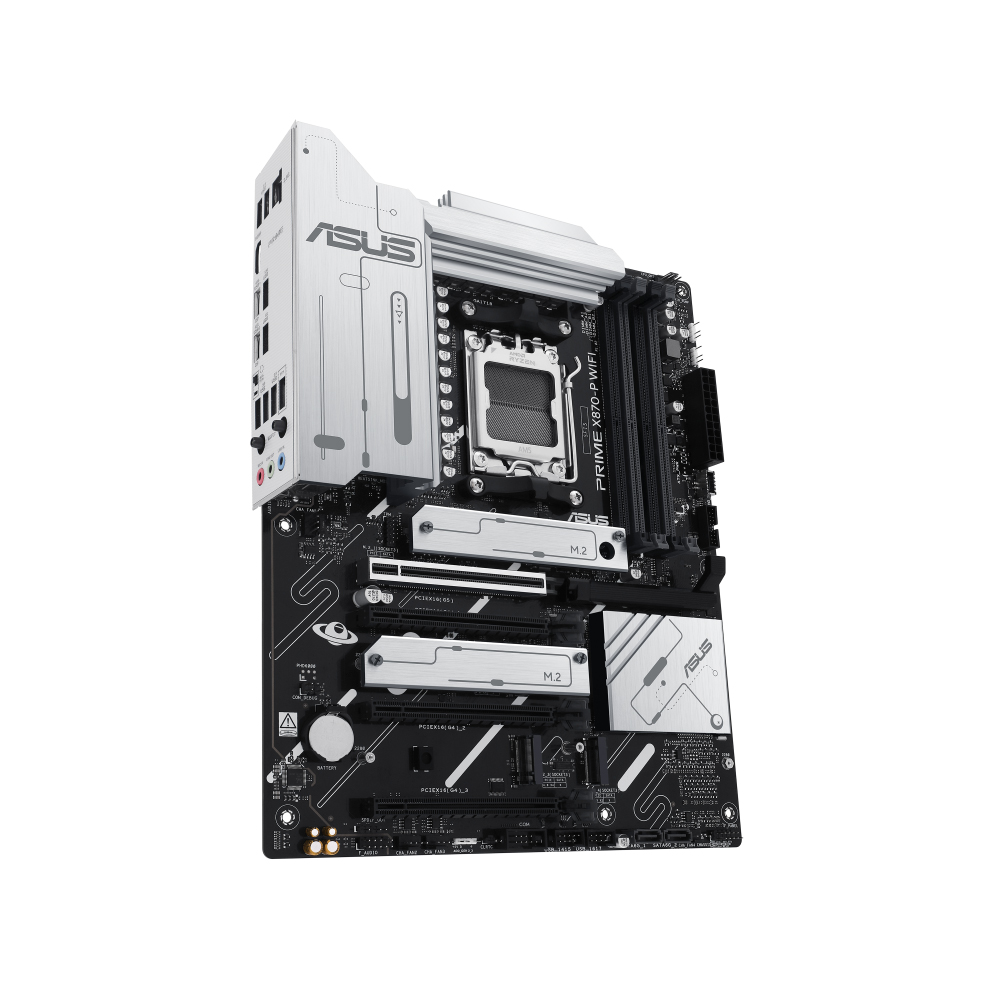

Name: Mainboard Asus PRIME X870-P WIFI-CSM DDR5
Brand: ASUS
SKU: 1878
Price: 6590000 VND
Availability: InStock
Rating: 4 (389 reviews)

Mainboard Asus PRIME X870-P WIFI-CSM DDR5

Mã SP: MAP870P

4 đánh giá Lượt xem: 389

Socket: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot (supports x16 mode), 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), 3 x PCIe 4.0 x16 slots (support x1 mode)

Khe cắm ổ cứng: 4 x M.2 slots and 2 x SATA 6Gb/s ports

Giá niêm yết: ~~10,199,000 đ~~

Giá khuyến mại:

6,590,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PRIME X870-P WIFI-CSM DDR5

6,590,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ AMD

Chipset AMD X870 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 192GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen™9000 & 8000 & 7000 Series ProcessorsECC and Non-ECC, Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visithttps://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Khe cắm mở rộng AMD Ryzen™9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X870 Chipset3 x PCIe 4.0 x16 slots (support x1 mode)**** Please check the PCIe bifurcation table on the support site

Ổ cứng hỗ trợ Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen™9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)AMD Ryzen™8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)AMD X870 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****2 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related4 x M.2 slots (Key M)2 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header

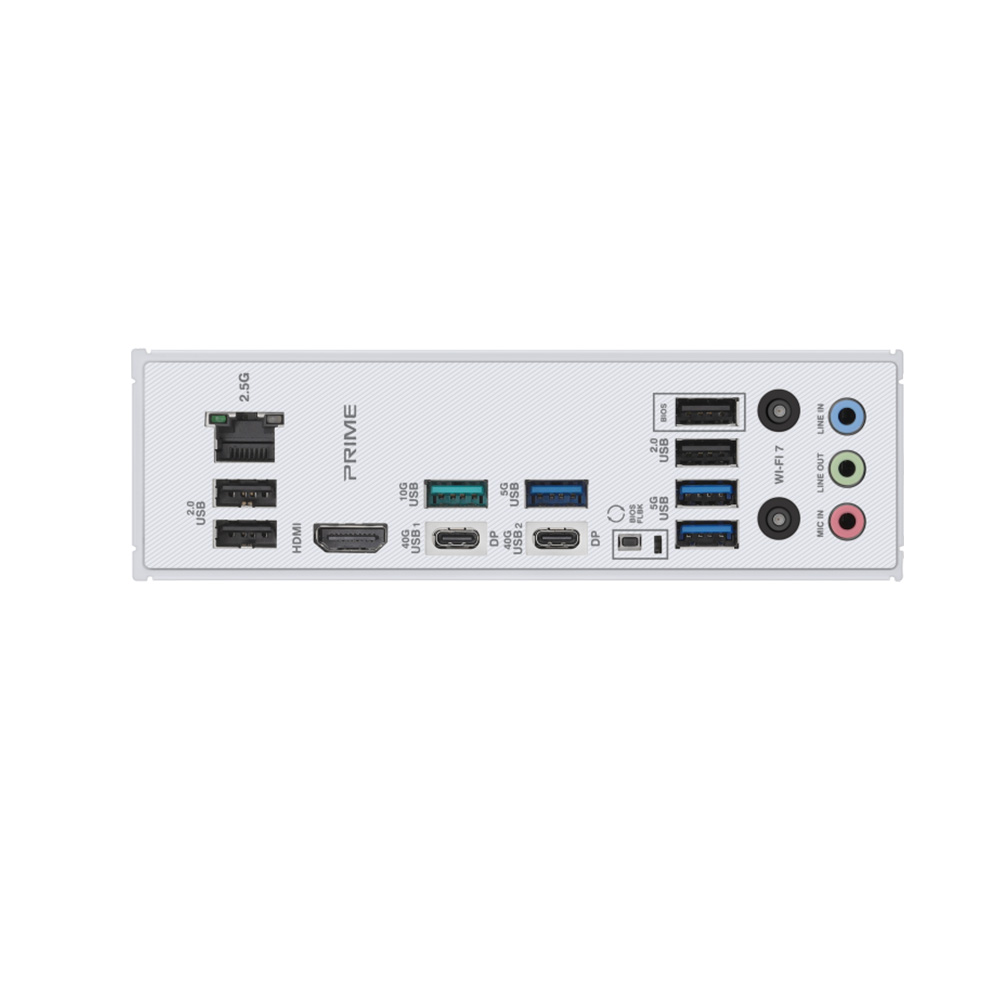

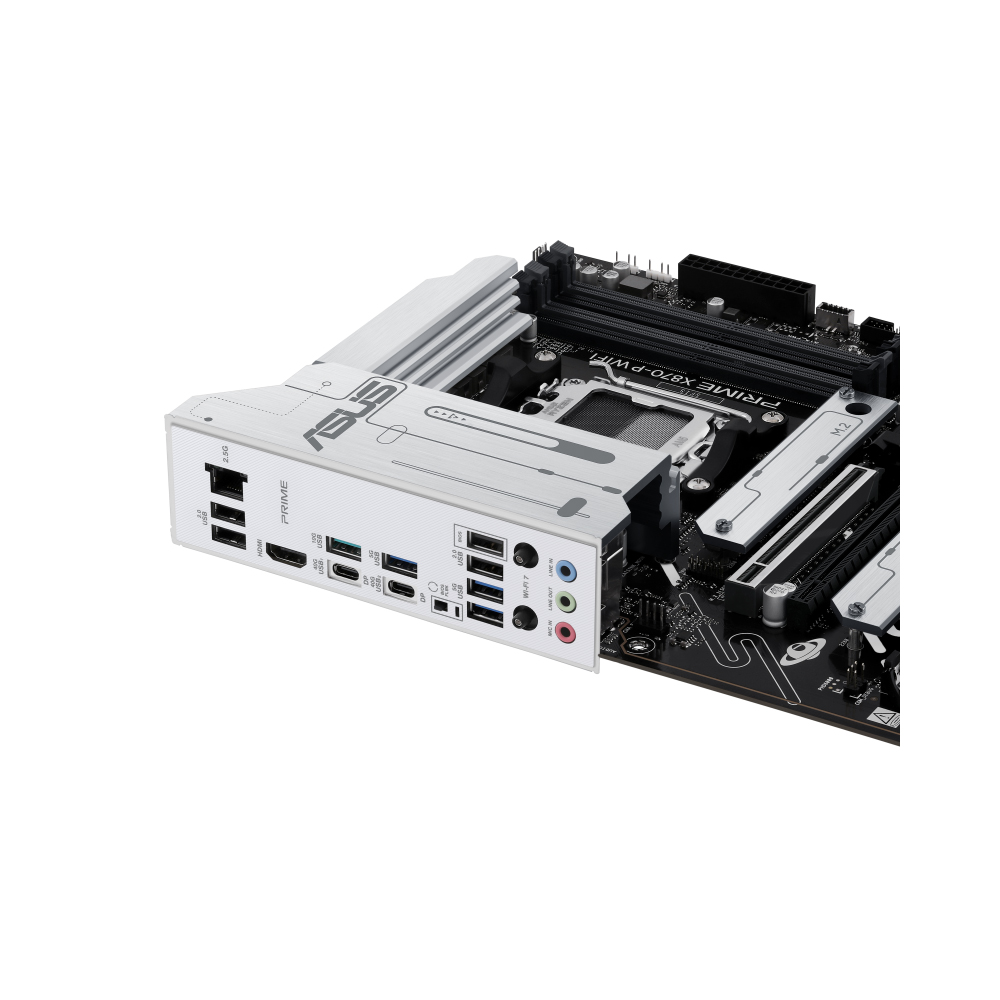

Cổng kết nối (Back Panel) 2 x USB4®(40Gbps) ports (2 x USB Type-C®)1 x USB 10Gbps port (1 x Type-A)3 x USB 5Gbps ports (3 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x HDMI™port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™button

LAN / Wireless 1 x Realtek 2.5Gb EthernetASUS LANGuardWi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.Bluetooth®v5.4

Kích cỡ ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
