Name: Mainboard Asus TUF GAMING B760M-BTF WIFI DDR4
Brand: ASUS
SKU: 240
Price: 5999000 VND
Availability: InStock
Rating: 4 (822 reviews)

Mainboard Asus TUF GAMING B760M-BTF WIFI DDR4

Mã SP: SP240

4 đánh giá Lượt xem: 822

Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 & 13

Kích thước: micro-ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot

Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~6,799,000 đ~~

Giá khuyến mại:

5,999,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus TUF GAMING B760M-BTF WIFI DDR4

5,999,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model TUF GAMING B760M-BTF WIFI DDR4

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC) 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng Intel®13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel®B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header

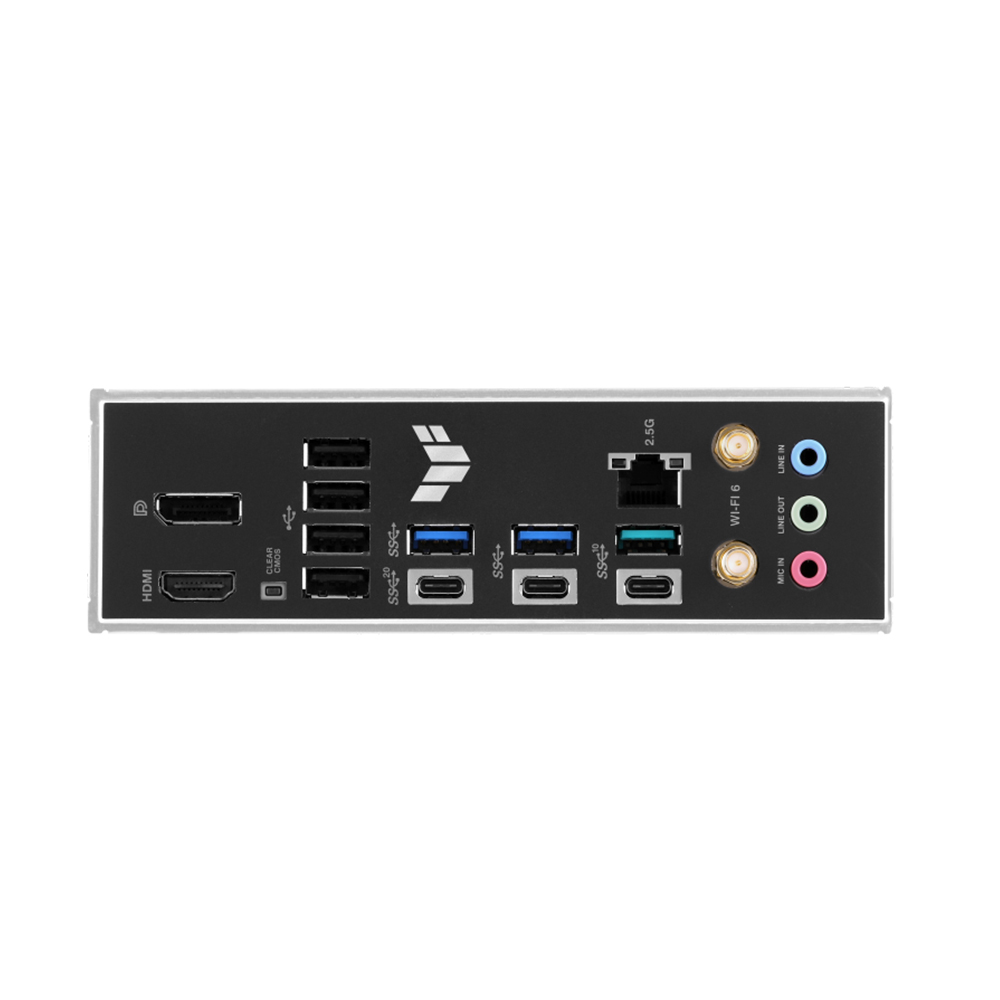

Cổng kết nối (Back Panel) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C®) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITMport 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button

LAN / Wireless Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth®v5.2 1 x Realtek 2.5Gb Ethernet

Kích cỡ micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Mainboard Asus TUF GAMING B760M-BTF WIFI DDR4
