Name: Mainboard Asus PRIME Z890M-PLUS WIFI DDR5
Brand: ASUS
SKU: 920
Price: 8699000 VND
Availability: InStock
Rating: 4 (490 reviews)

Mainboard Asus PRIME Z890M-PLUS WIFI DDR5

Mã SP: SP920

4 đánh giá Lượt xem: 490

Socket: Support Intel Core Ultra Processors (Series 2), LGA1851; Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x16 slots (support x1 mode)

Khe cắm ổ cứng: 3 x M.2 slots and 6 x SATA 6Gb/s ports

Giá niêm yết: ~~9,699,000 đ~~

Giá khuyến mại:

8,699,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PRIME Z890M-PLUS WIFI DDR5

8,699,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel Z890 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 192GB, DDR5 Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture

Khe cắm mở rộng Intel Core Ultra Processors 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode)

Ổ cứng hỗ trợ Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Core Ultra Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header

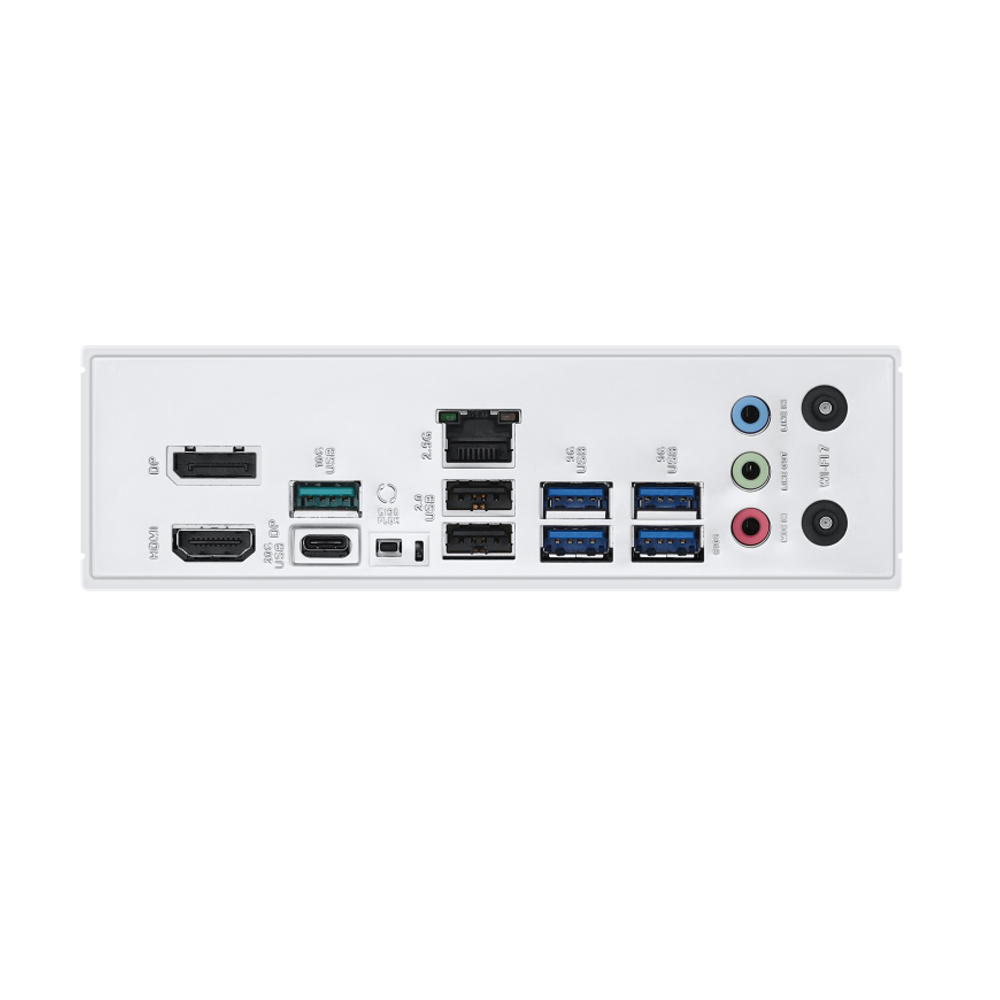

Cổng kết nối (Back Panel) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button

LAN / Wireless LAN 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4

Kích cỡ mATX Form Factor 24.4 cm x 24.4 cm

Mainboard Asus PRIME Z890M-PLUS WIFI DDR5
