Name: Mainboard MSI MAG X870 TOMAHAWK WIFI DDR5
Brand: MSI
SKU: 462
Price: 9090000 VND
Availability: InStock
Rating: 3 (138 reviews)

Mainboard MSI MAG X870 TOMAHAWK WIFI DDR5

Mã SP: MAMZ7386

3 đánh giá Lượt xem: 138

Socket: Socket AM5 Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 3x PCI-E x16 slot, PCI_E1 slot

Khe cắm ổ cứng: 4x M.2

Giá niêm yết: ~~11,499,000 đ~~

Giá khuyến mại:

9,090,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI MAG X870 TOMAHAWK WIFI DDR5

9,090,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng MSI

Model MAG X870 TOMAHAWK WIFI

CPU hỗ trợ AMD

Chipset AMD X870

RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPO™Supports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only

Khe cắm mở rộng 3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Ổ cứng hỗ trợ 4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

Cổng kết nối (Internal) 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C ports

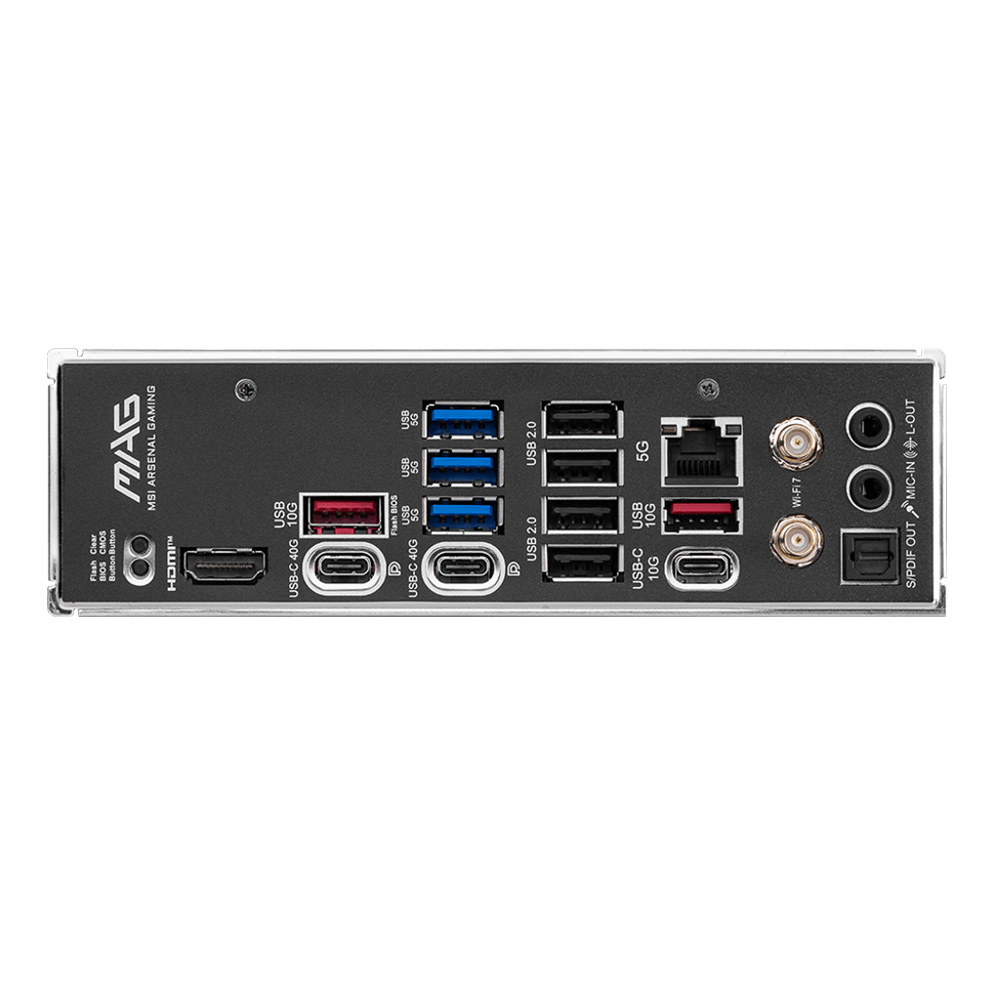

BACK PANEL Clear CMOS ButtonUSB 10Gbps Type-AUSB 5Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMI™USB 40Gbps Type-CUSB 10Gbps Type-CUSB 10Gbps Type-A

LAN / Wireless Realtek®8126-CG 5G LANWi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth®5.4**, MLO, 4KQAM

Kích cỡ ATX304.8mmx243.84mm

Mainboard MSI MAG X870 TOMAHAWK WIFI DDR5
