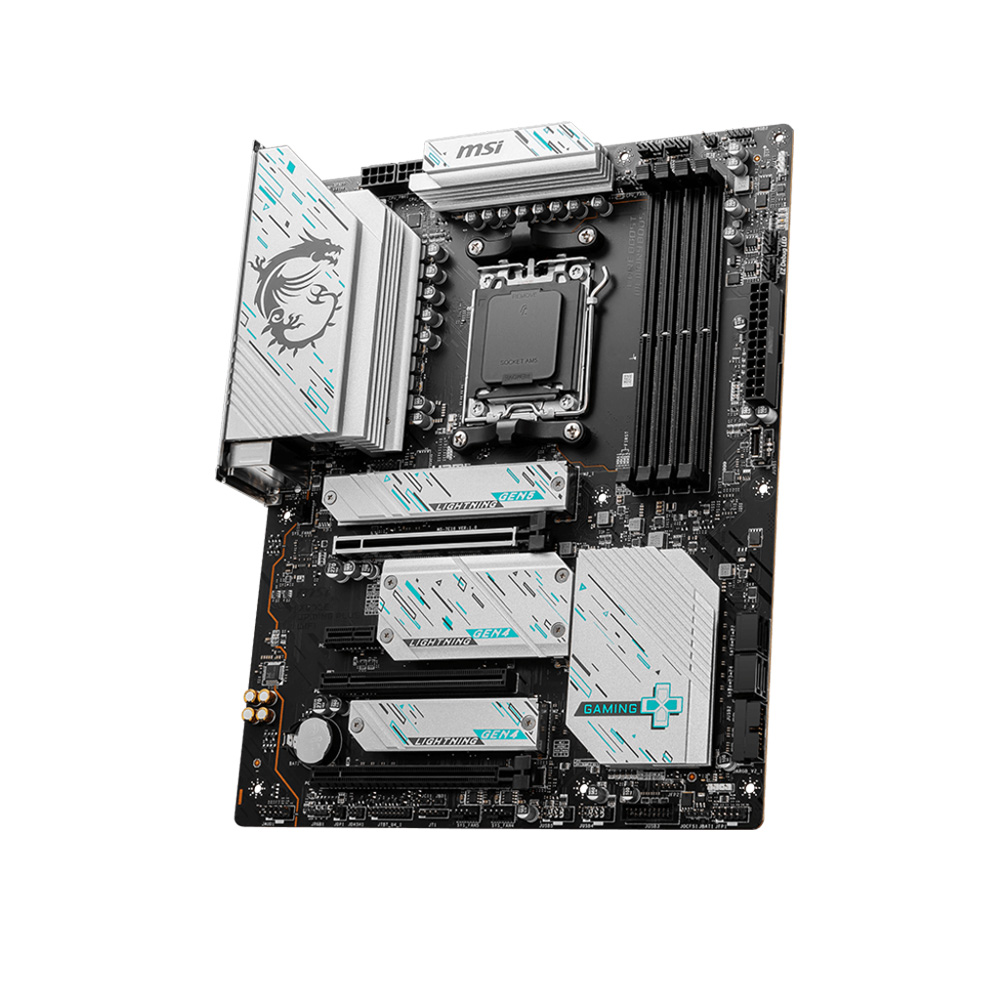

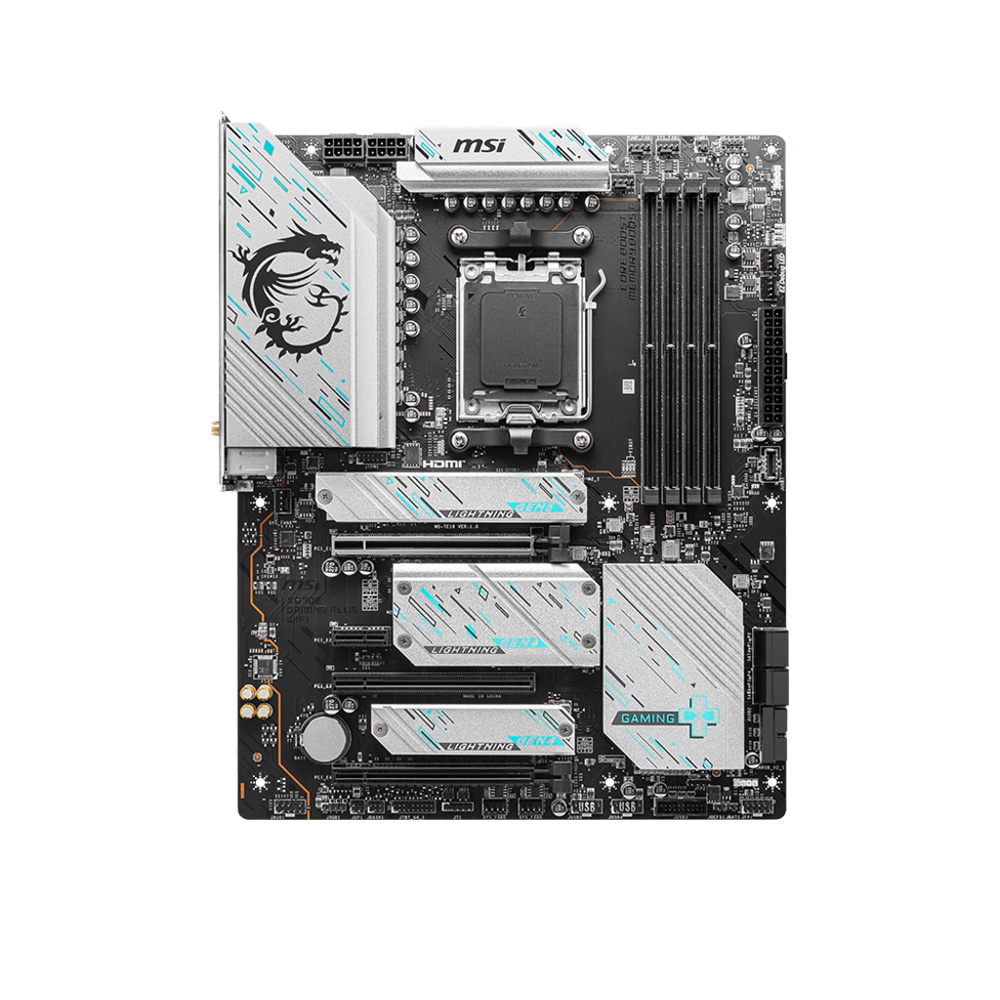

Name: Mainboard MSI X670E Gaming Plus Wifi DDR5
Brand: MSI
SKU: 505
Price: 7499000 VND
Availability: InStock
Rating: 4 (290 reviews)

Mainboard MSI X670E Gaming Plus Wifi DDR5

Mã SP: SP505

4 đánh giá Lượt xem: 290

Socket: AM5 Hỗ trợ AMD Ryzen™ 9000/ 8000/ 7000

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 3x PCI-E x16 slot, 1x PCI-E x1 slot

Khe cắm ổ cứng: 4x M.2 slot, 4x SATA 6G

Giá niêm yết: ~~9,299,000 đ~~

Giá khuyến mại:

7,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI X670E Gaming Plus Wifi DDR5

7,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng MSI

Model X670E GAMING PLUS WIFI

CPU hỗ trợ AMD

Chipset AMD X670

RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz

Khe cắm mở rộng 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

Cổng kết nối (Internal) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

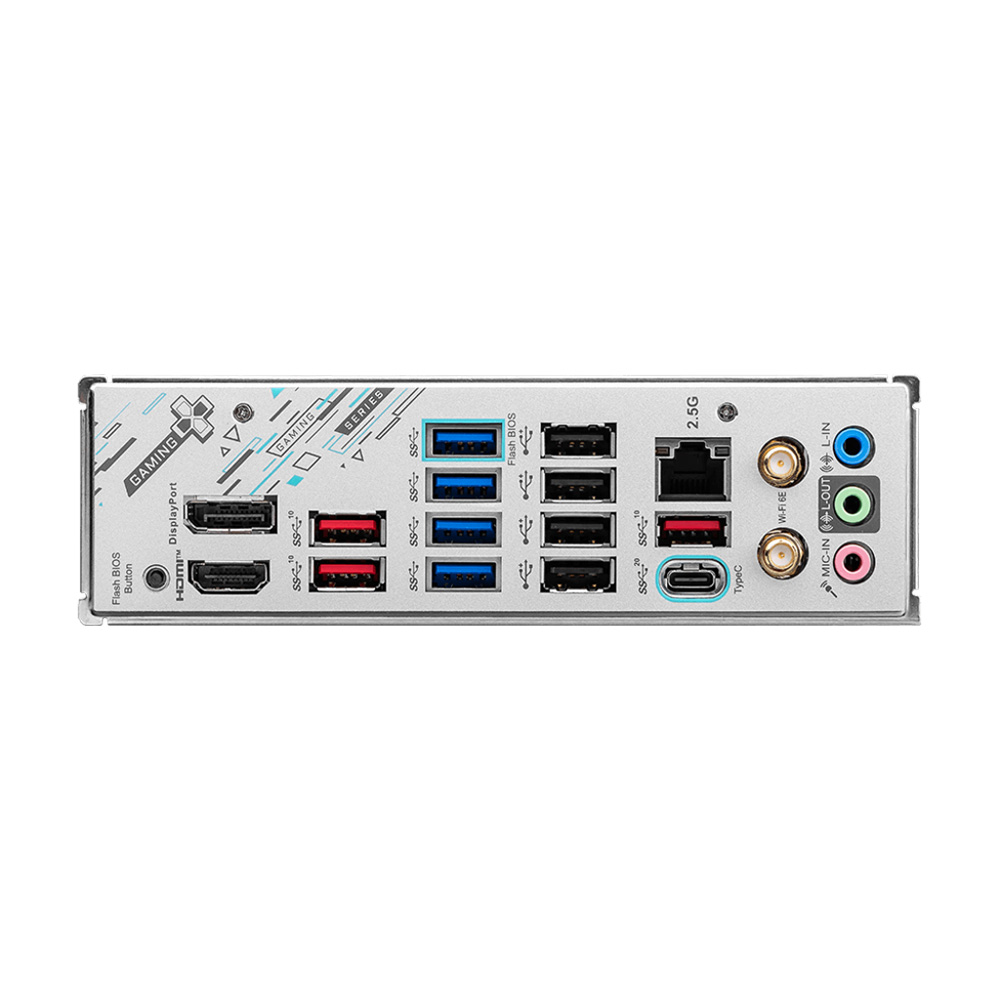

BACK PANEL DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 (Type-A) 2.5G LAN Flash BIOS Button HDMI™ USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors

LAN / Wireless Realtek®RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth®5.3**

Kích cỡ ATX 243.84mmx304.8mm
