Name: Mainboard Asrock Z890 Taichi AQUA DDR5 (Wifi+Bluetooth+Thunderbolt 4)
Brand: Intel
SKU: 1419
Price: 27299000 VND
Availability: InStock
Rating: 4 (405 reviews)

Mainboard Asrock Z890 Taichi AQUA DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Mã SP: SP1419

4 đánh giá Lượt xem: 405

CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration; Supports ASRock Hyper BCLK Engine

Kích thước: E-ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes; 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode; 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; Supports AMD CrossFire; 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)

Khe cắm ổ cứng: 6 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~29,999,000 đ~~

Giá khuyến mại:

27,299,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock Z890 Taichi AQUA DDR5 (Wifi+Bluetooth+Thunderbolt 4)

27,299,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

CPU - Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration - Supports ASRock Hyper BCLK Engine

Chipset Intel Z890

RAM hỗ trợ - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 9200MHz+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel Extreme Memory Profile (XMP) 3.0x

Khe cắm mở rộng CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)

Ổ cứng hỗ trợ CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors

Connector - 3 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED

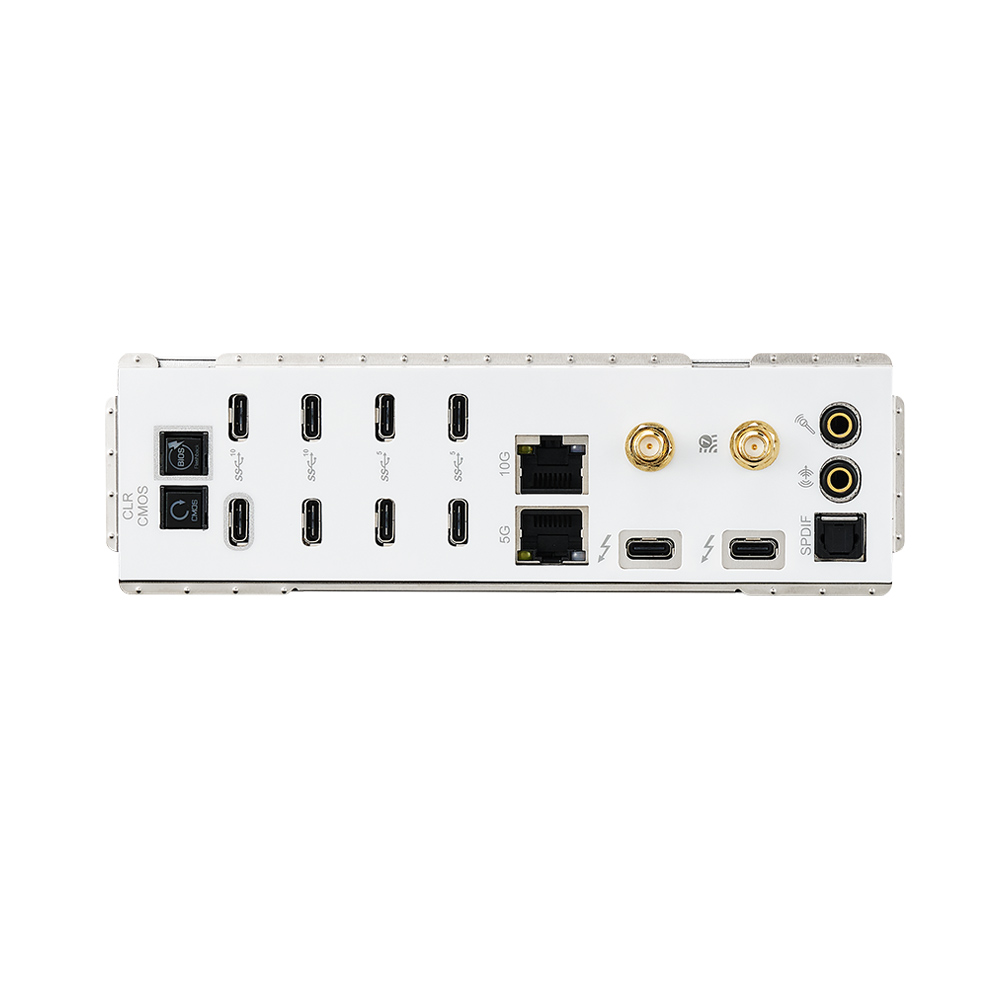

Rear Panel I/O - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) - 4 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 4 x USB 3.2 Gen1 Type-C Ports (USB32_TC_56 support Ultra USB Power.) - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

LAN / Wireless LAN: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) Wireless: - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 320MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO - Supports Killer LAN Software

Kích cỡ - EATX Form Factor: 12.0-in x 10.8-in, 30.5 cm x 27.4 cm - 10 Layer PCB - 2oz Copper PCB

Mainboard Asrock Z890 Taichi AQUA DDR5 (Wifi+Bluetooth+Thunderbolt 4)
