Name: Mainboard Asus B760M-AYW WIFI DDR5
Brand: ASUS
SKU: 1265
Price: 3249000 VND
Availability: InStock
Rating: 3 (326 reviews)

Mainboard Asus B760M-AYW WIFI DDR5

Mã SP: SP1265

3 đánh giá Lượt xem: 326

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: mATX

Khe cắm RAM: 2 khe (Tối đa 96GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~3,999,000 đ~~

Giá khuyến mại:

3,249,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus B760M-AYW WIFI DDR5

3,249,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model B760M-AYW WIFI

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC) 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture

Khe cắm mở rộng Intel®Core™ Processors (14th& 13th& 12thGen) 1 x PCIe 4.0 x16 slot Intel®B760 Chipset 2 x PCIe 4.0 x1 slots

Ổ cứng hỗ trợ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®Core™ Processors (14th& 13th& 12thGen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

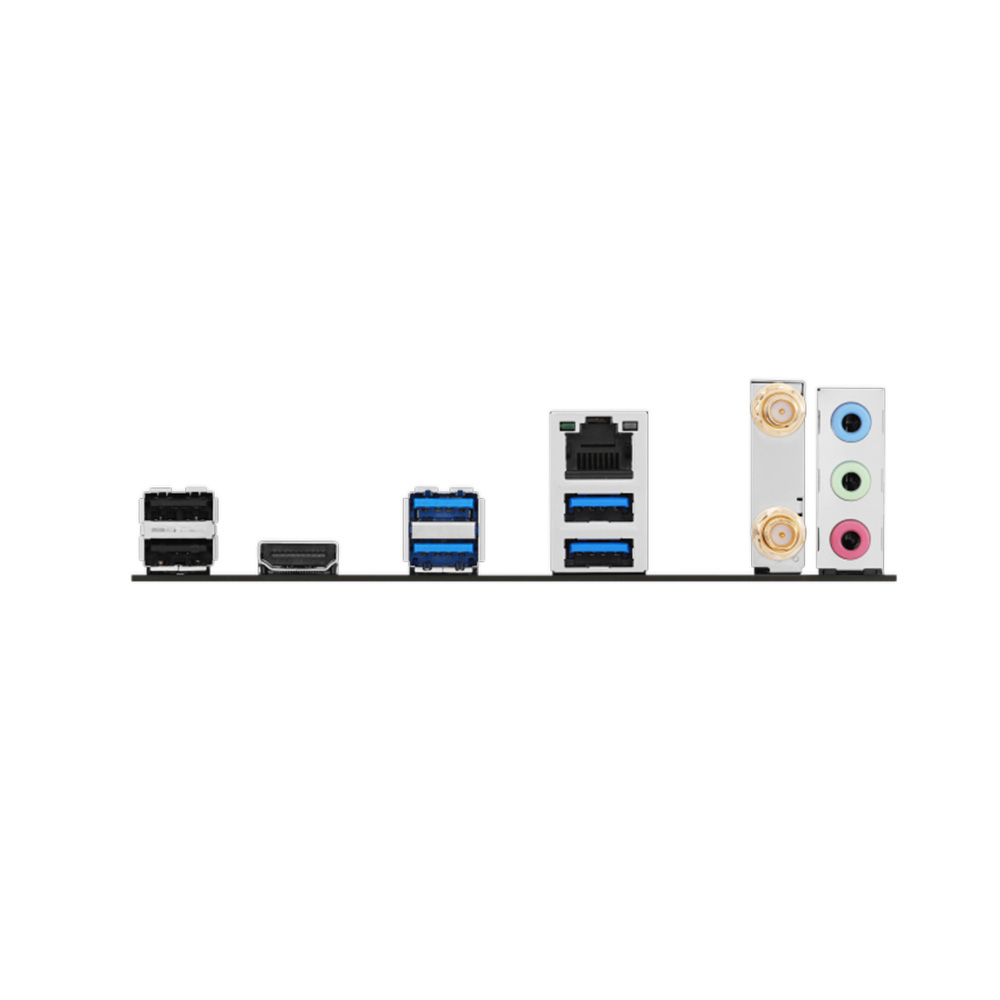

Cổng kết nối (Back Panel) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITMport 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks

LAN / Wireless 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth®v5.3*

Kích cỡ mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Mainboard Asus B760M-AYW WIFI DDR5
