Name: Mainboard Asrock B450M-HDV R4.0
Brand: AMD
SKU: 481
Price: 1449000 VND
Availability: InStock
Rating: 3 (327 reviews)

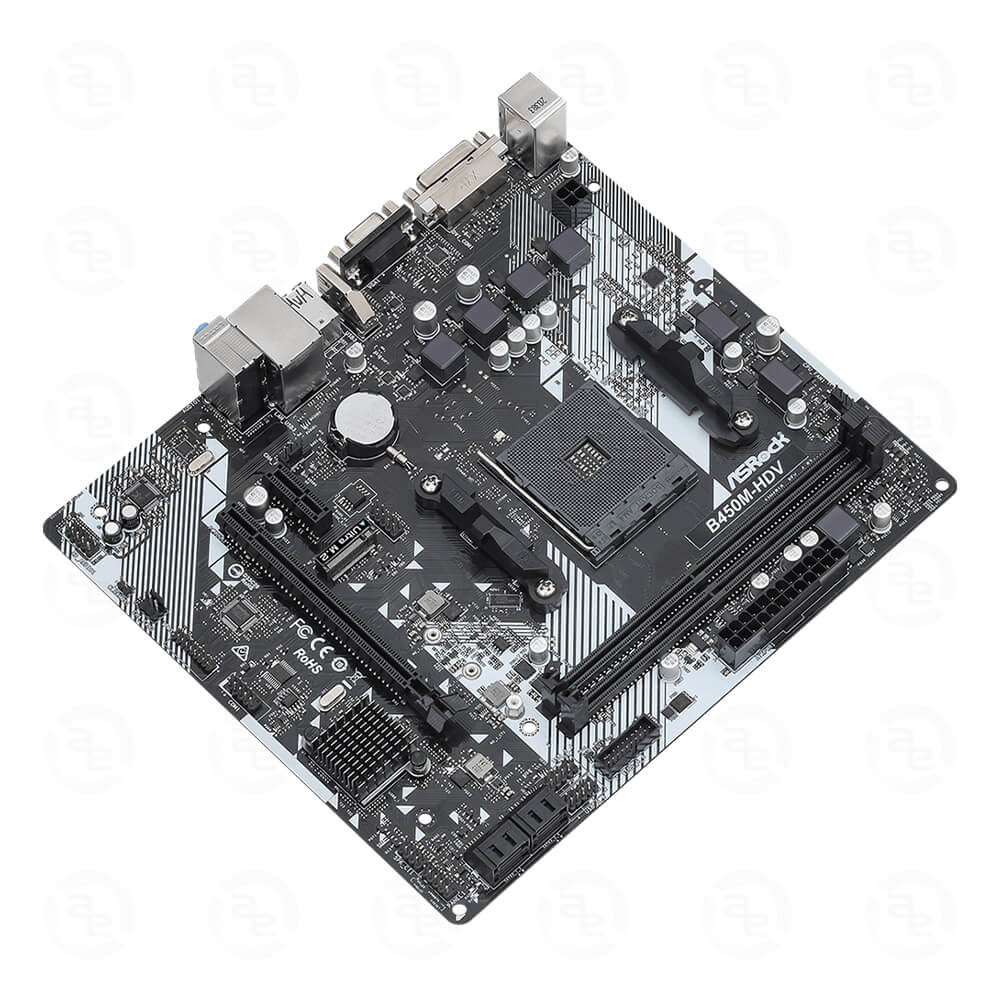

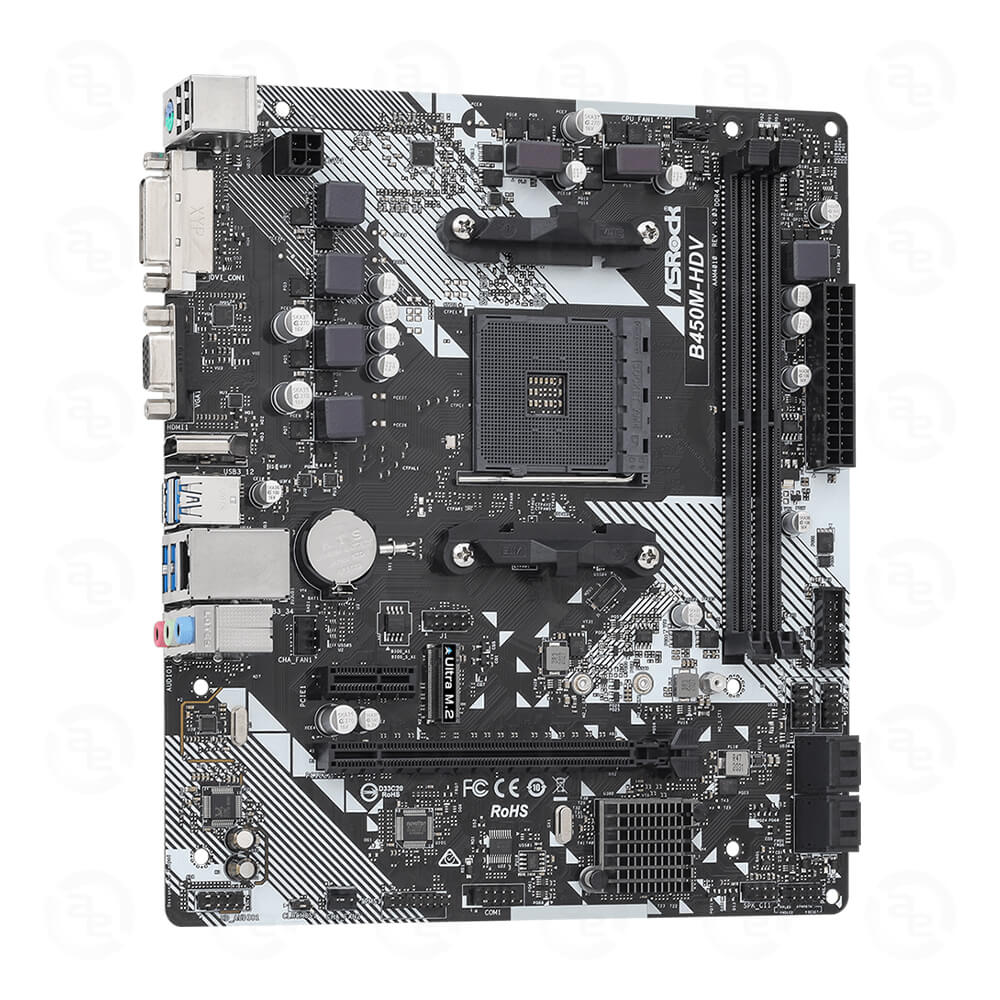

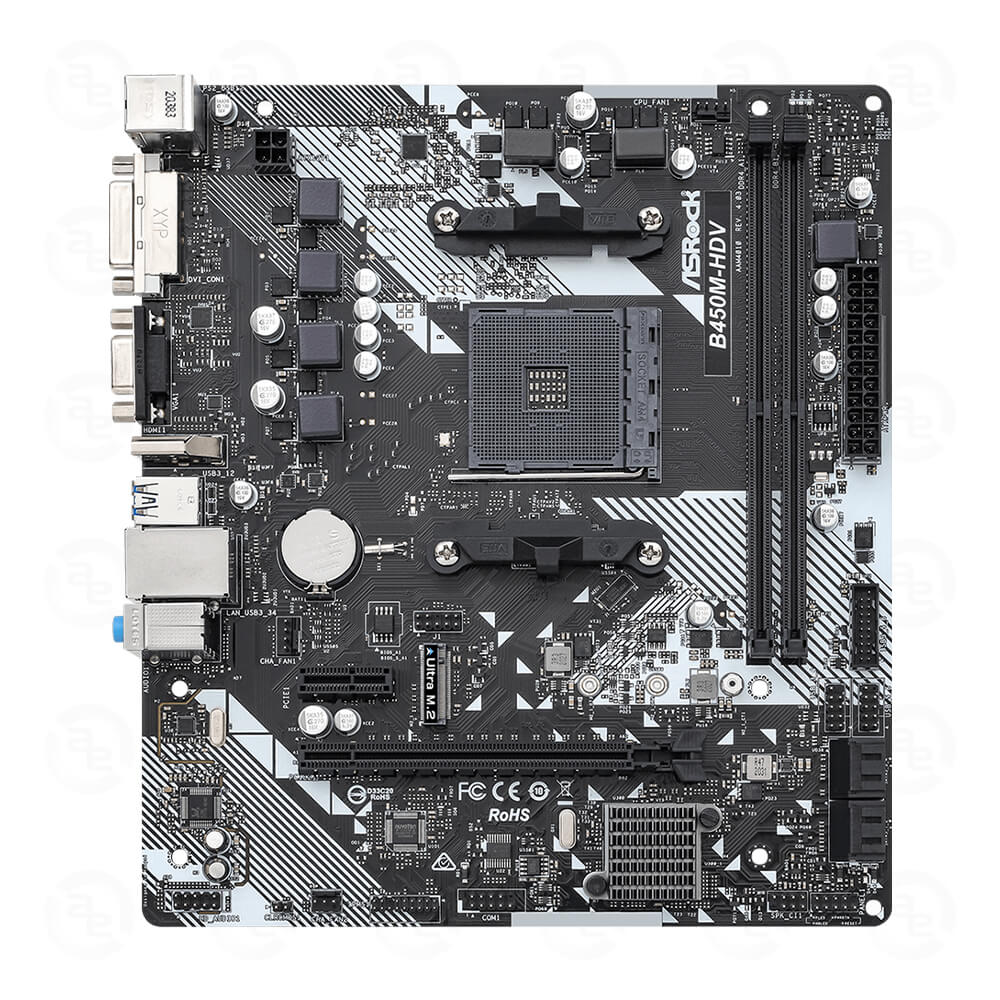

Mainboard Asrock B450M-HDV R4.0

Mã SP: SP481

3 đánh giá Lượt xem: 327

Socket: AMD AM4

Kích thước: Micro ATX

Khe cắm RAM: 2 khe (Tối đa 64GB)

Khe cắm mở rộng: PCI Express 3.0, PCI Express 2.0

Khe cắm ổ cứng: 4 x SATA3 6.0 Gb/s, 1 x M.2 Socket

Giá niêm yết: ~~2,199,000 đ~~

Giá khuyến mại:

1,449,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock B450M-HDV R4.0

1,449,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

Model B450M-HDV R4.0

CPU hỗ trợ AMD

Chipset B450

RAM hỗ trợ 2 x DDR4 DIMM Slots, support up to 64GB DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

Khe cắm mở rộng AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot

Ổ cứng hỗ trợ - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)

Cổng kết nối (Internal) - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

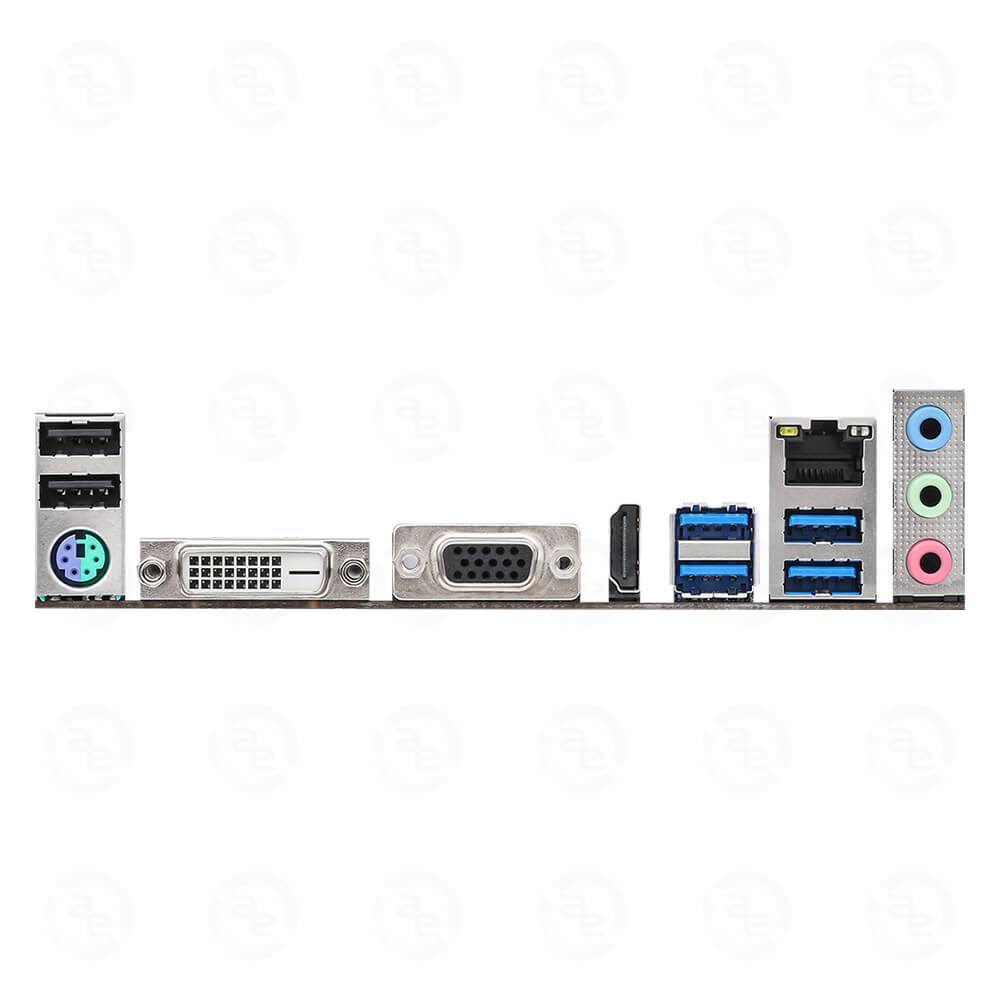

Cổng kết nối (Back Panel) - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE

Kích cỡ Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
