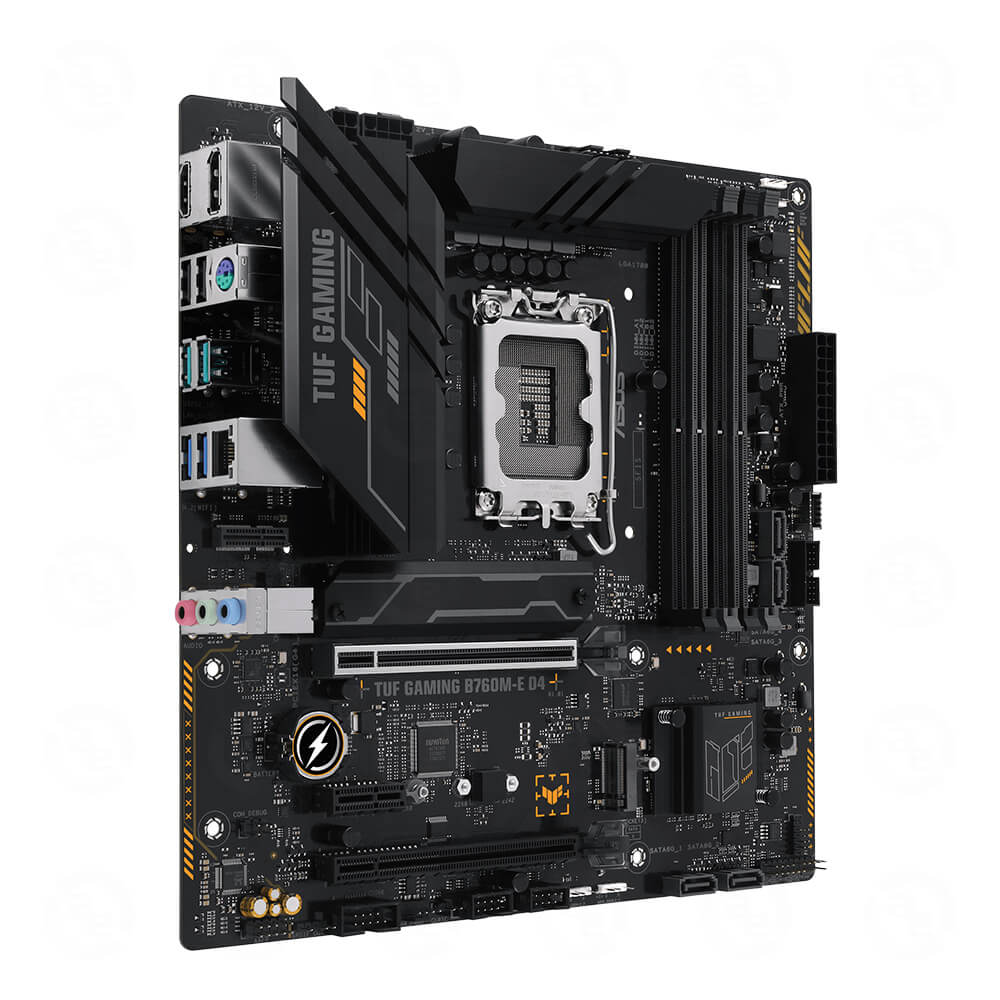

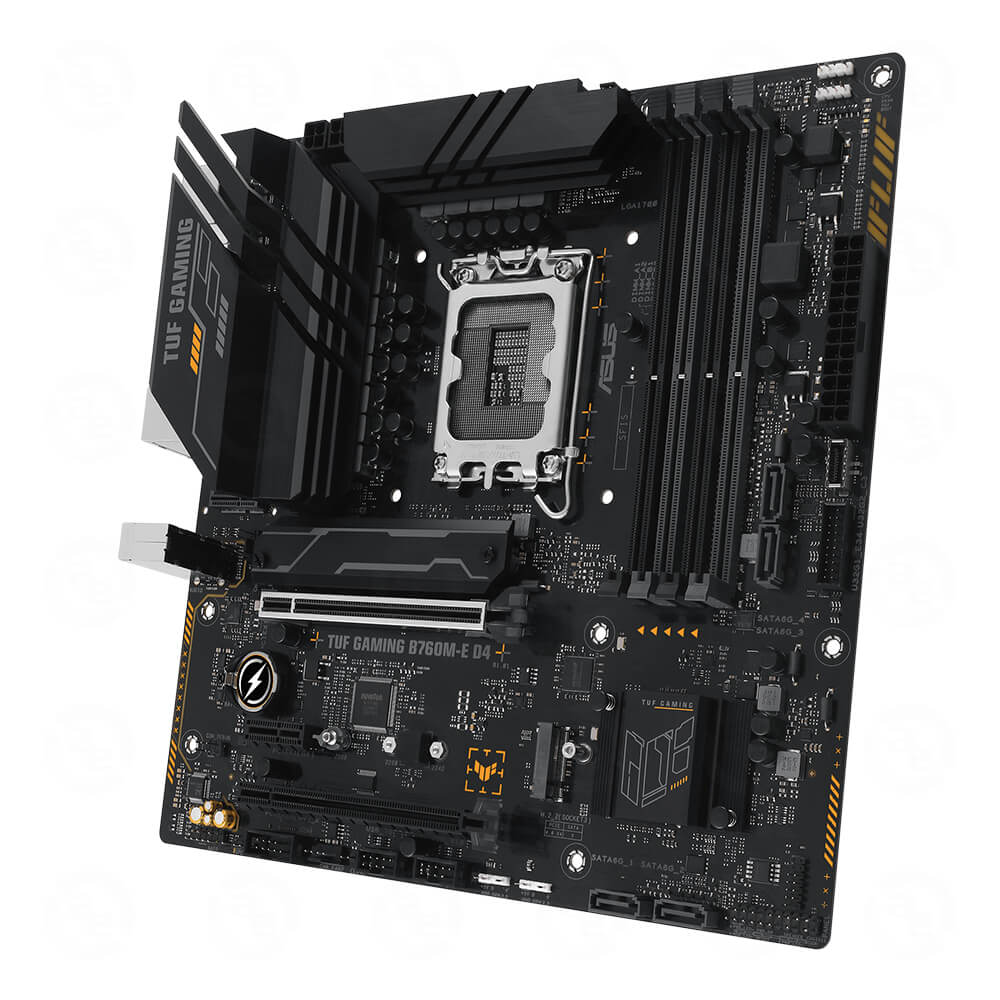

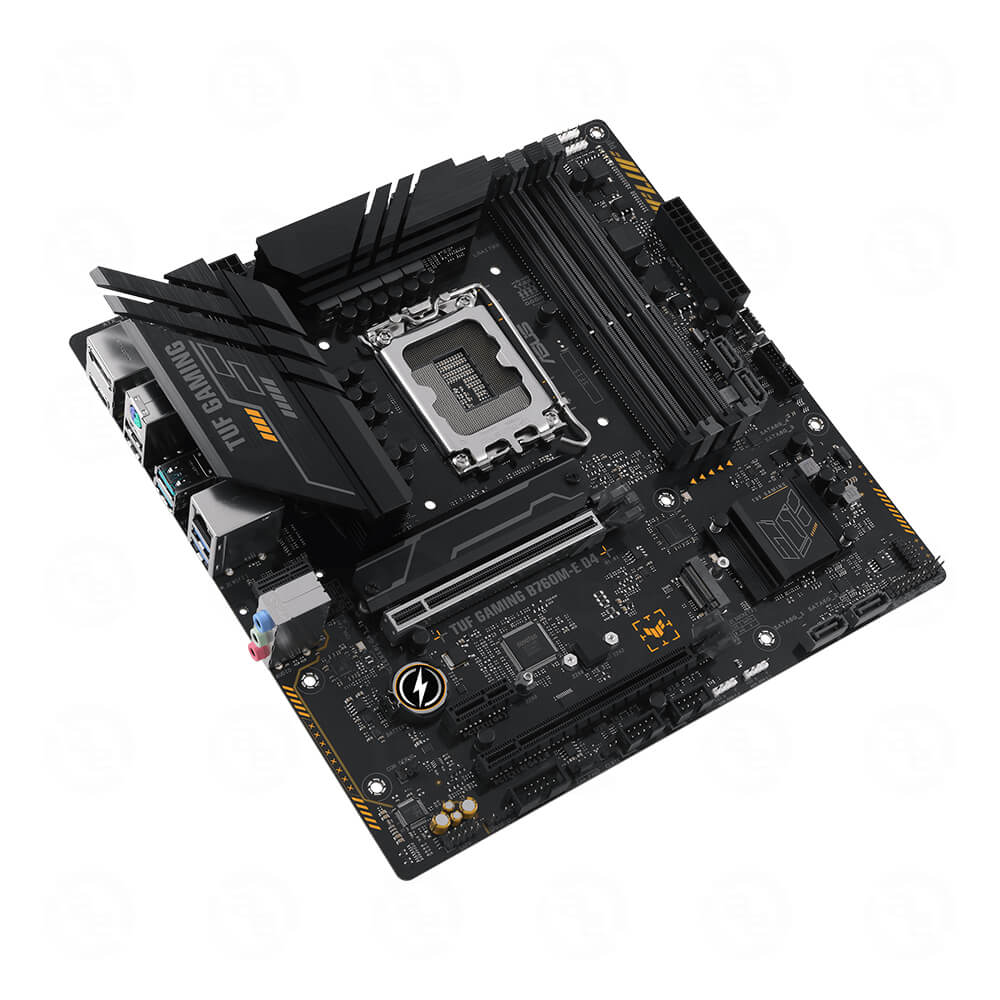

Name: Mainboard Asus TUF Gaming B760M-E DDR4
Brand: ASUS
SKU: 1806
Price: 3179000 VND
Availability: InStock
Rating: 3 (420 reviews)

Mainboard Asus TUF Gaming B760M-E DDR4

Mã SP: SP1806

3 đánh giá Lượt xem: 420

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot

Khe cắm ổ cứng: M.2 connectors, 4 x SATA 6Gb/s ports

Giá niêm yết: ~~4,199,000 đ~~

Giá khuyến mại:

3,179,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus TUF Gaming B760M-E DDR4

3,179,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model TUF Gaming B760M-E DDR4

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Khe cắm mở rộng Intel®13th& 12thGen Processors 1 x PCIe 4.0 x16 slot Intel®B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Ổ cứng hỗ trợ Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel®13th& 12thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel®Rapid Storage Technology supports SATA RAID 0/1/5/10.

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header

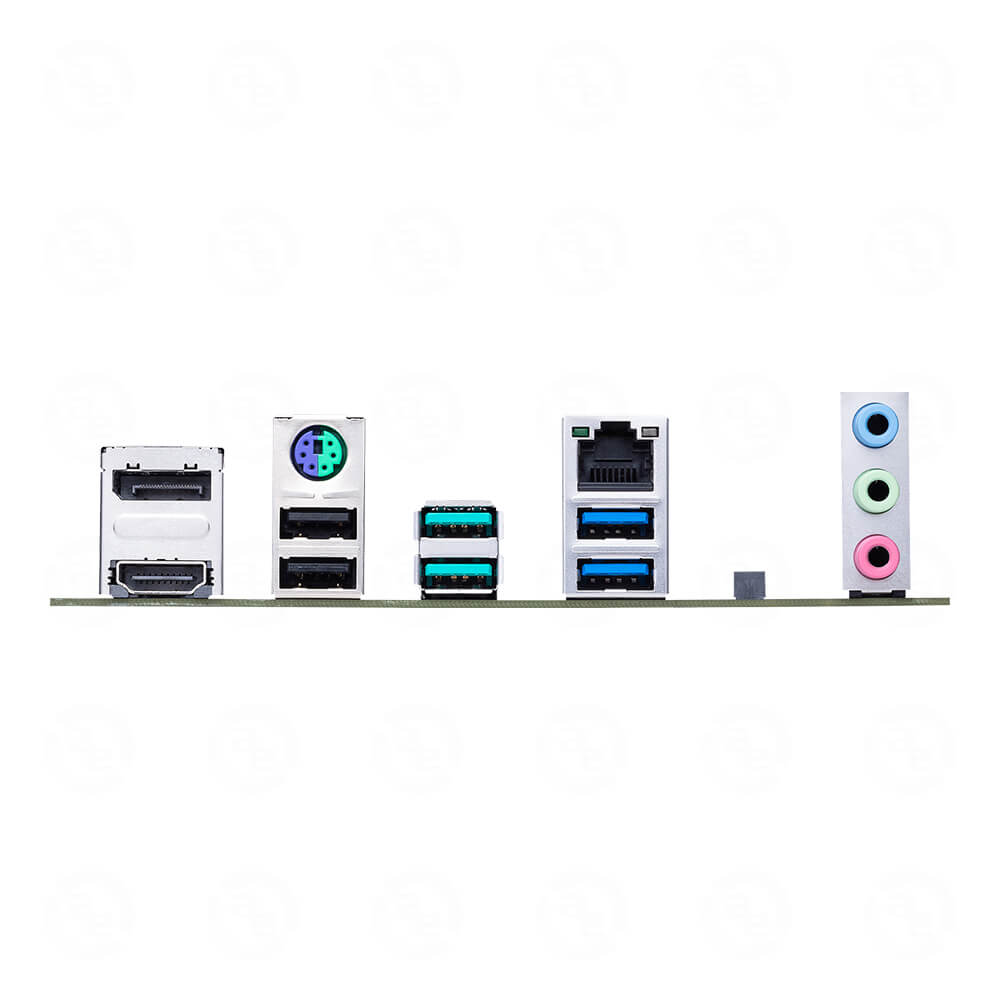

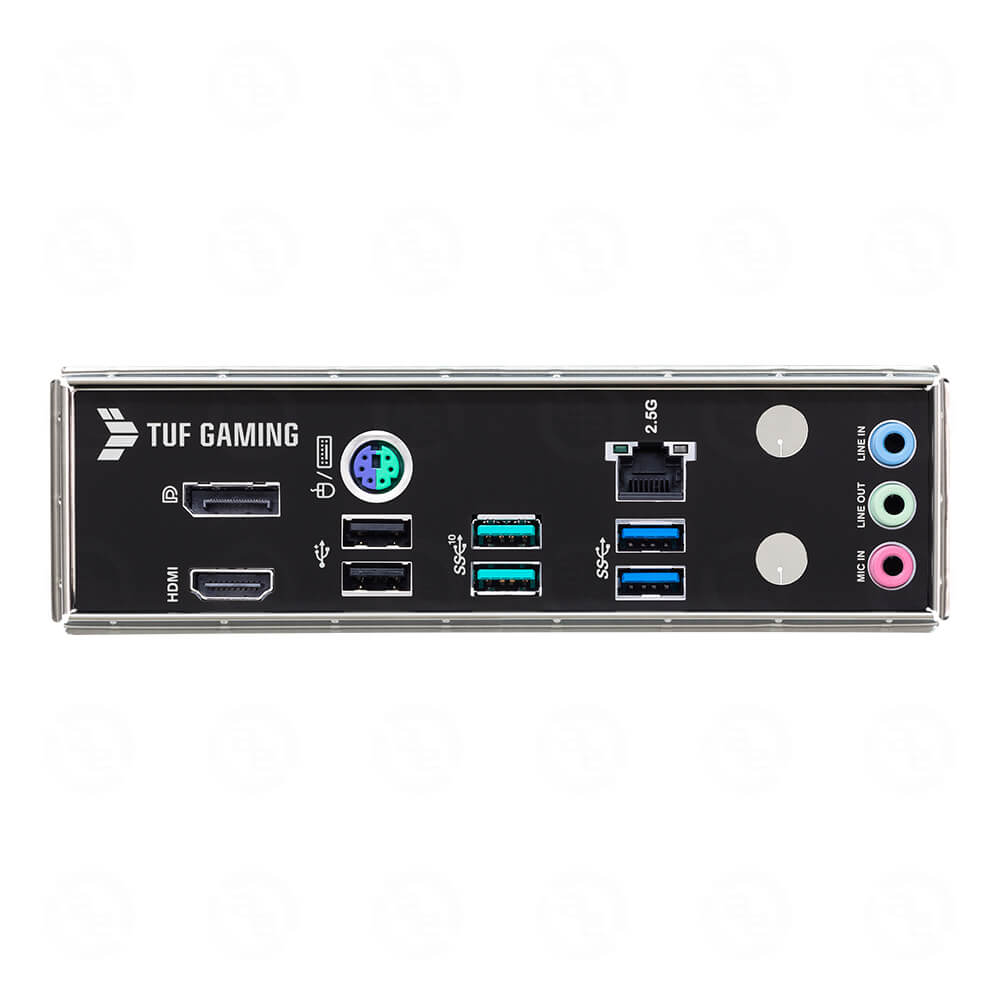

Cổng kết nối (Back Panel) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek2.5Gb Ethernet port 3 x Audio jacks 1 x Vertical M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless 1 x Realtek 2.5Gb Ethernet TUF LANGuard

Kích cỡ mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Mainboard Asus TUF Gaming B760M-E DDR4
