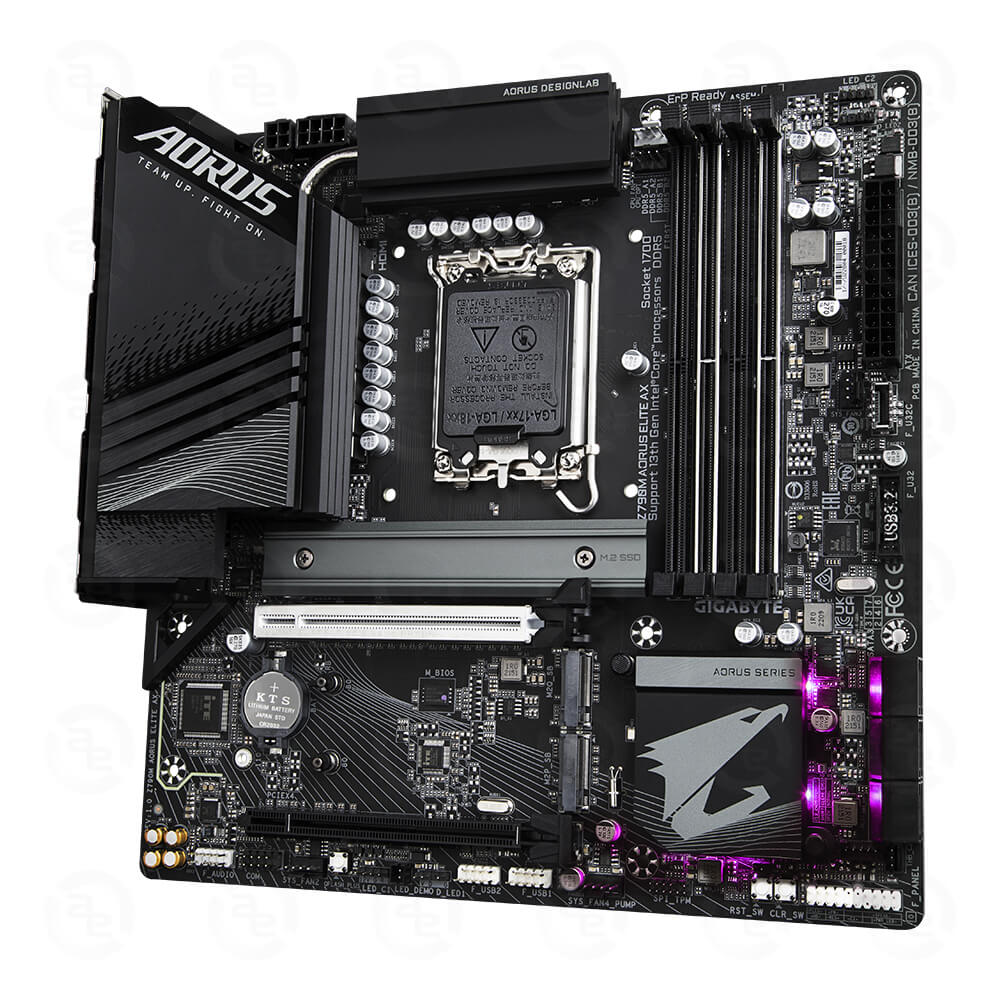

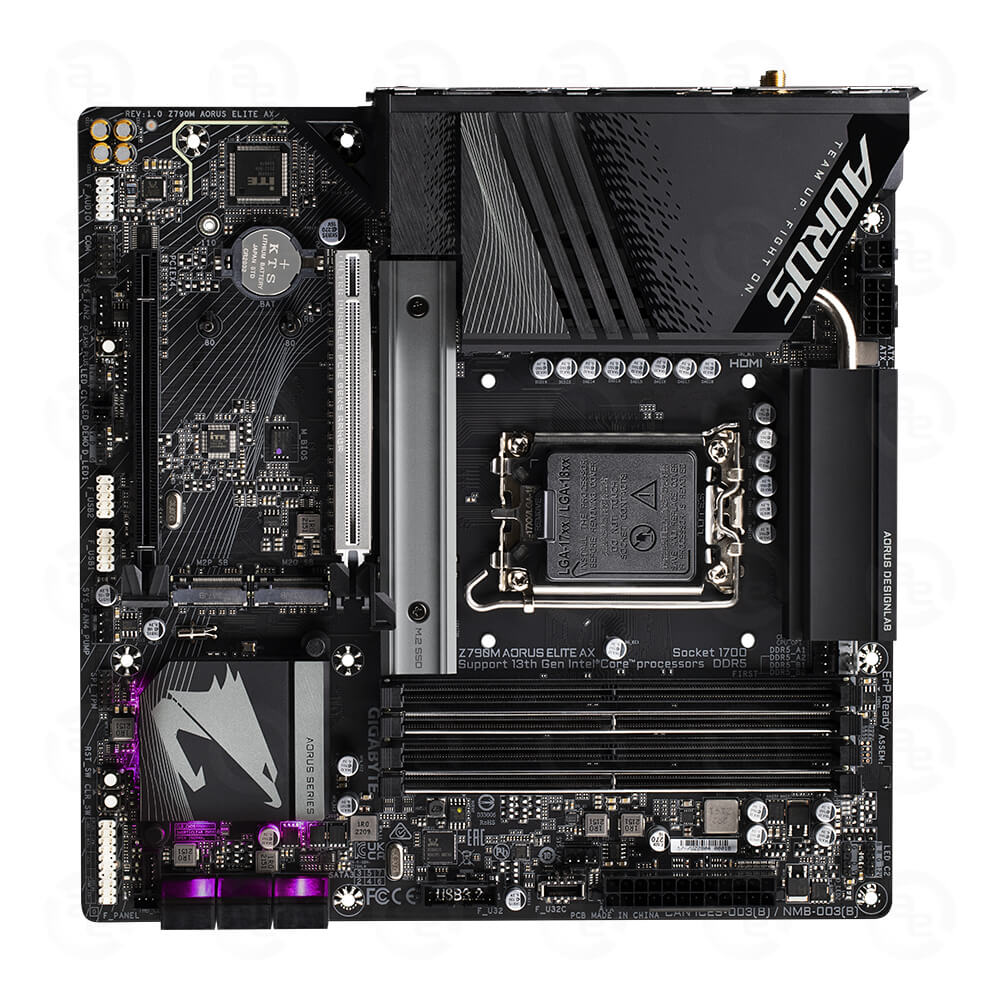

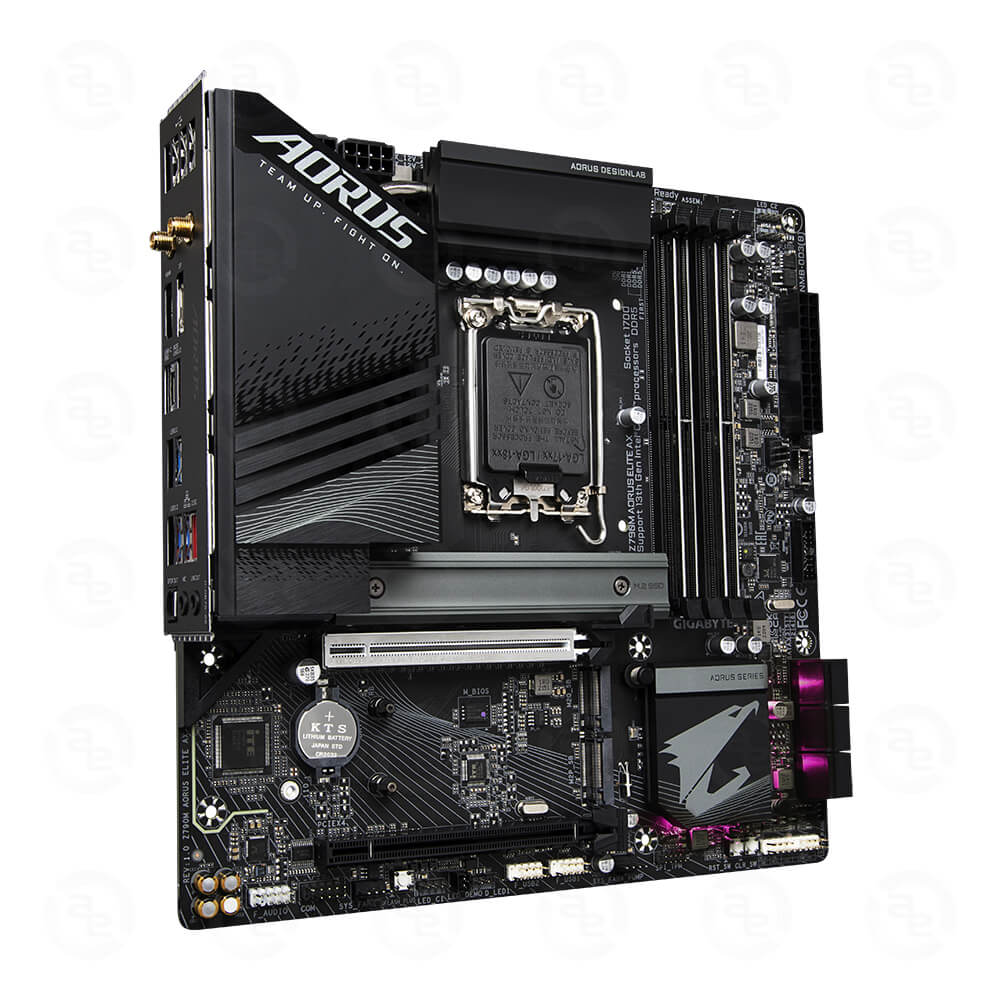

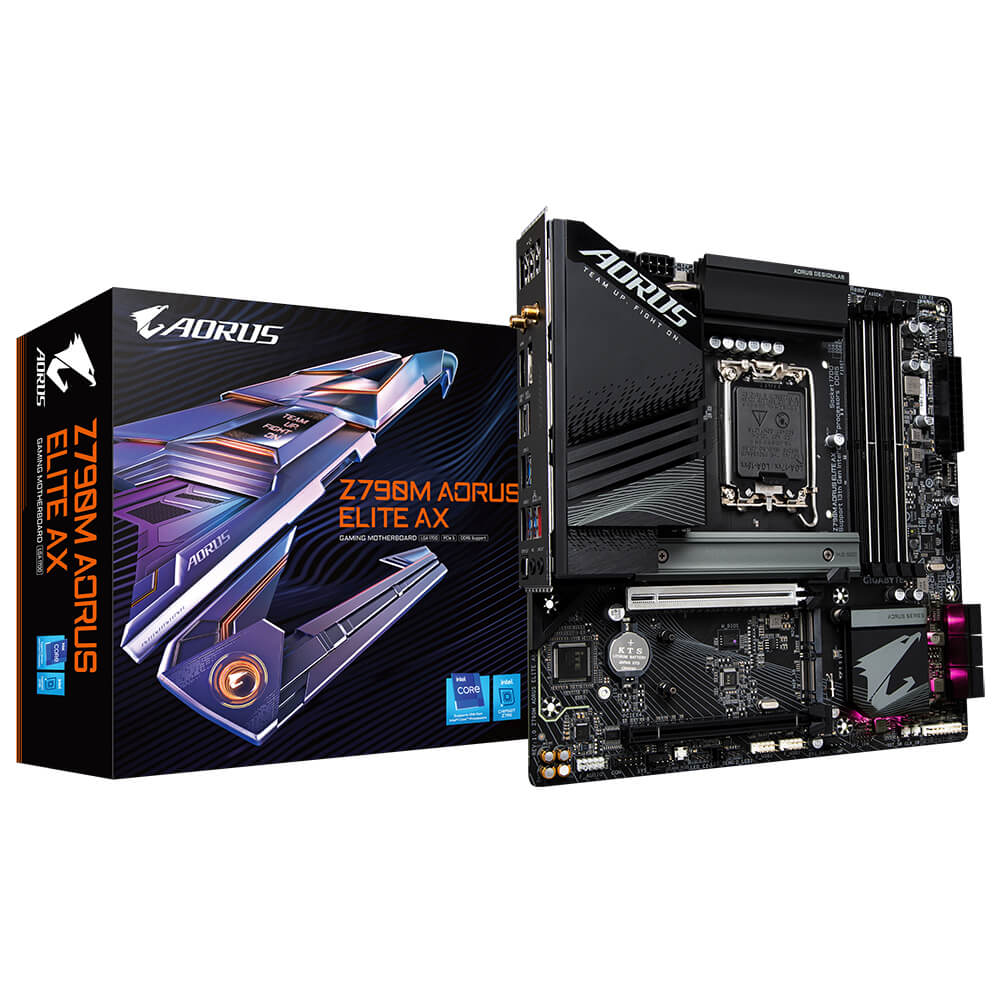

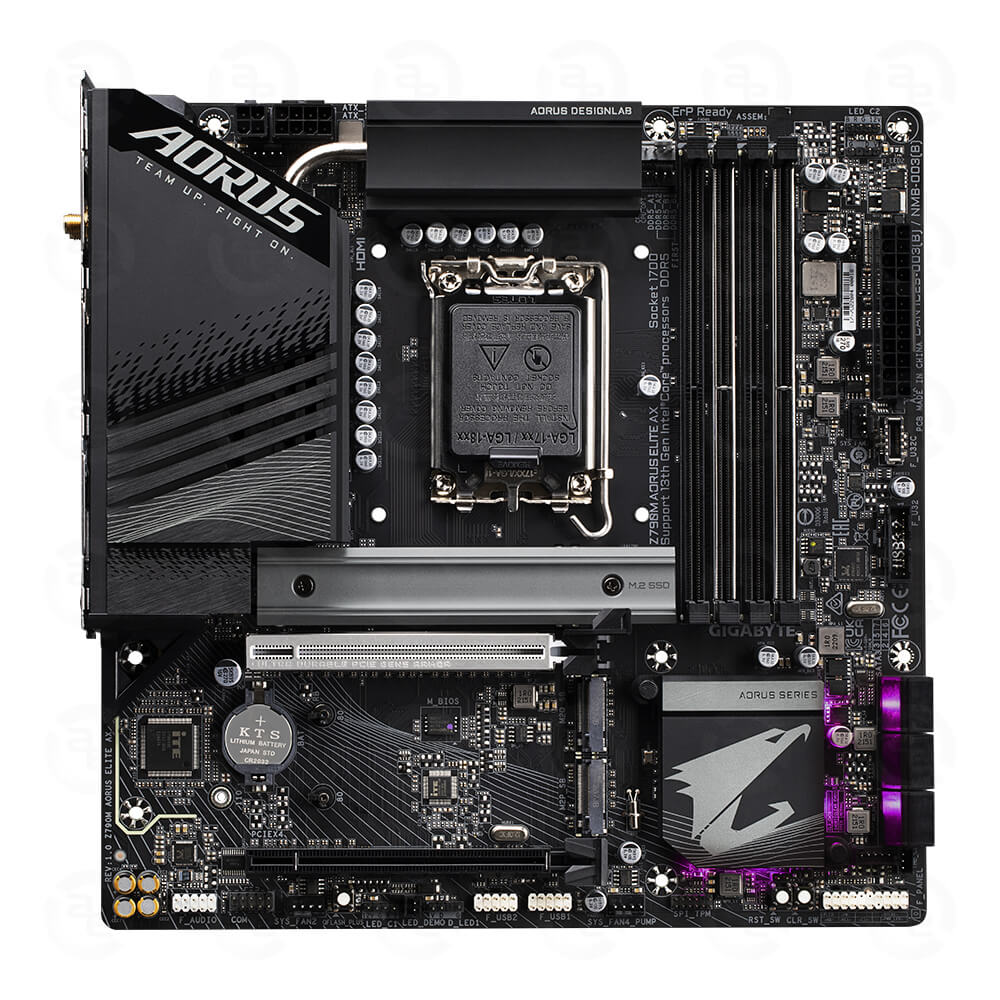

Name: Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)
Brand: Gigabyte
SKU: 144
Price: 6099000 VND
Availability: InStock
Rating: 4 (626 reviews)

Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)

Mã SP: SP144

4 đánh giá Lượt xem: 626

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCI Express 5.0 x16 slot, 1 x PCI Express 4.0 x16 slots

Khe cắm ổ cứng: 3 x M.2 slots, 6 x SATA 6Gb/s ports

Giá niêm yết: ~~7,699,000 đ~~

Giá khuyến mại:

6,099,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)

6,099,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

Model Z790M AORUS ELITE AX DDR5

CPU hỗ trợ Intel

Chipset Z790

RAM hỗ trợ Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 192 GB (32 GB single DIMM capacity)

Khe cắm mở rộng CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFire™ technology

Ổ cứng hỗ trợ CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper

Cổng kết nối (Back Panel) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

LAN / Wireless Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm

Mainboard Gigabyte Z790M AORUS ELITE AX DDR5 (Wifi+Bluetooth)
