Name: Mainboard ASUS TUF Gaming Z790 BTF WIFI DDR5
Brand: ASUS
SKU: 1708
Price: 8699000 VND
Availability: InStock
Rating: 3 (391 reviews)

Mainboard ASUS TUF Gaming Z790 BTF WIFI DDR5

Mã SP: SP1708

3 đánh giá Lượt xem: 391

Socket: Intel Socket LGA1700 hỗ trợ CPU intel Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slot

Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~9,599,000 đ~~

Giá khuyến mại:

8,699,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard ASUS TUF Gaming Z790 BTF WIFI DDR5

8,699,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model TUF GAMING Z790-BTF WIFI

CPU hỗ trợ Intel

Chipset Intel Z790 Chipset

RAM hỗ trợ 4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000 4800 Non-ECC, Un-buffered Memory

Khe cắm mở rộng Intel®Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel®Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot

Ổ cứng hỗ trợ Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®Core™ Processors (14th& 13th& 12thGen)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel®Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x Graphics Card High-Power slot 1 x 12V-2X6 Auxiliary Power connector 3 x 8-pin PCIe Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 20-3 pin System Panel header with chassis intrusion function 1 x Thunderbolt™ (USB4®) header

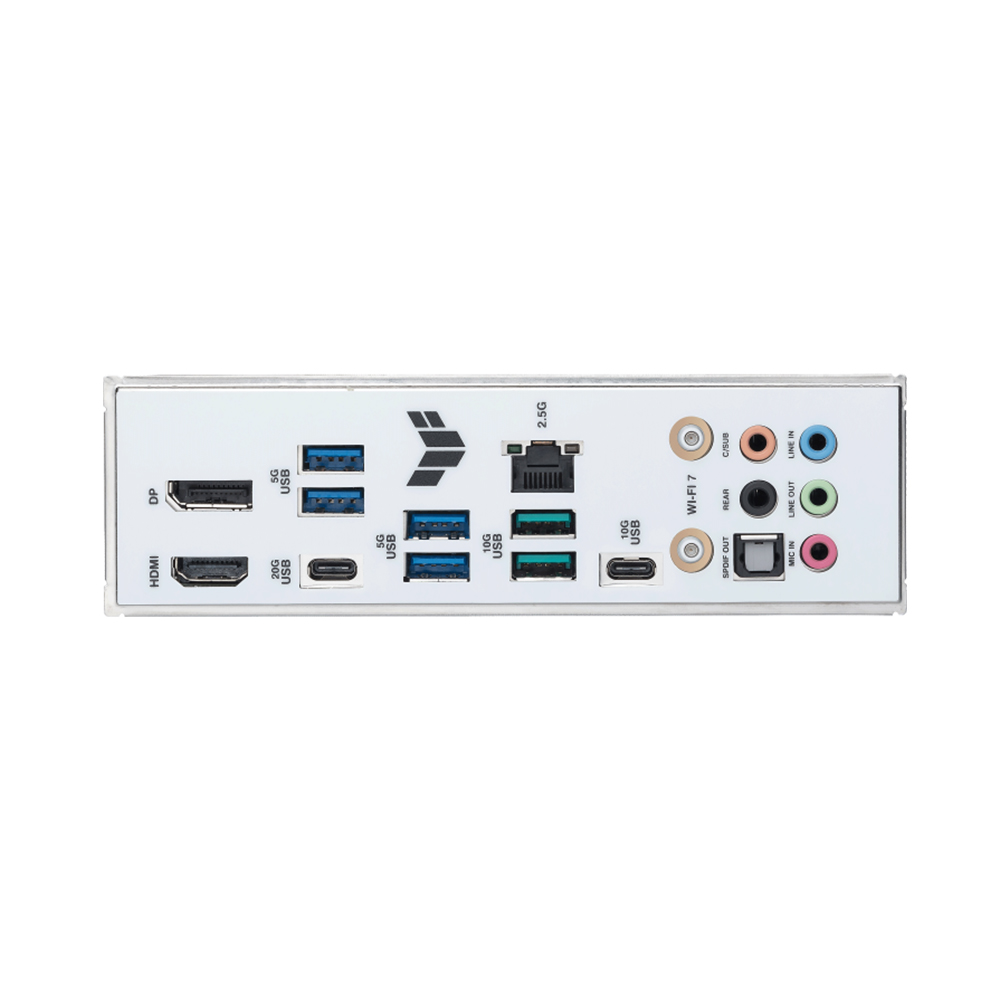

Cổng kết nối (Back Panel) 1 x USB 20Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel®2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

LAN / Wireless 1 x Intel®2.5Gb Ethernet TUF LANGuard Intel®Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth®v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.

Kích cỡ ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Mainboard ASUS TUF Gaming Z790 BTF WIFI DDR5
