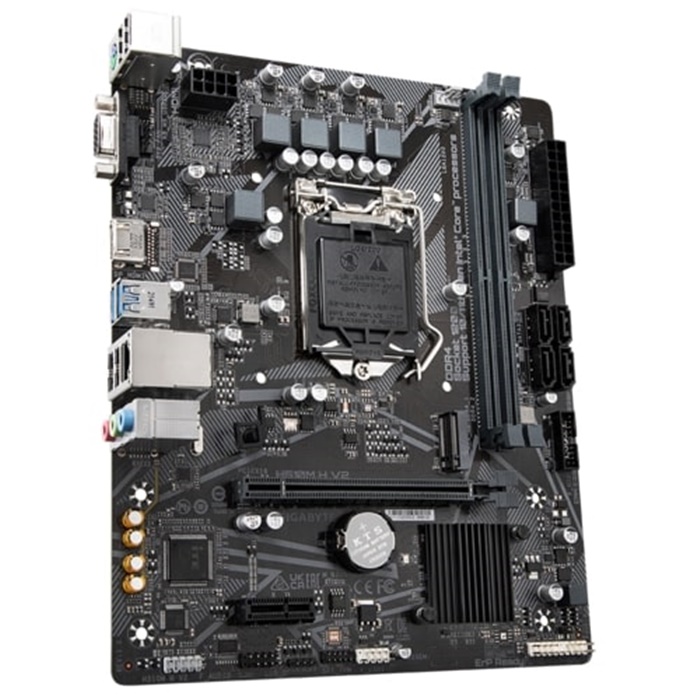

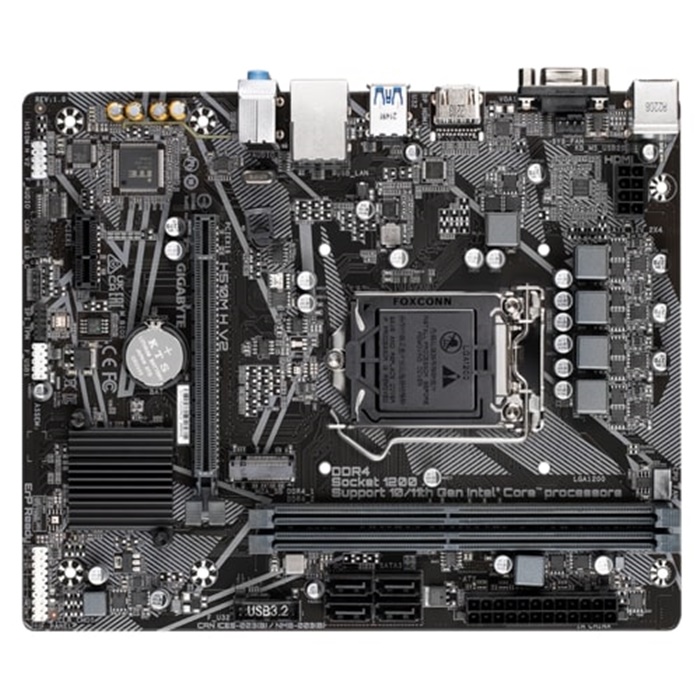

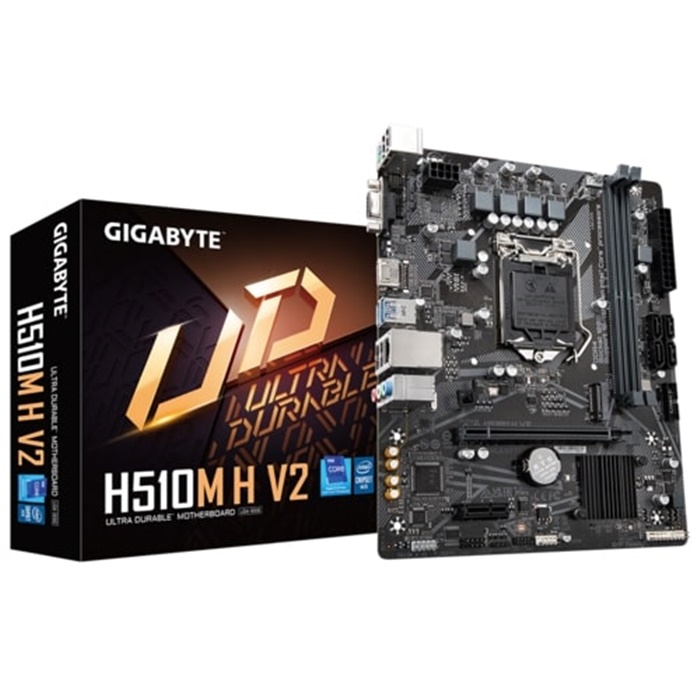

Name: Mainboard GIGABYTE H510M H V2
Brand: Gigabyte
SKU: 751
Price: 1599000 VND
Availability: InStock
Rating: 3 (579 reviews)

Mainboard GIGABYTE H510M H V2

Mã SP: SP751

3 đánh giá Lượt xem: 579

Socket: LGA1200 Hỗ trợ Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

Cổng xuất hình: HDMI+VGA (CPU Intel đầu 10 sử dụng được cả 2 cổng, CPU Intel đầu 11 chỉ sử dụng được cổng HDMI)

Kích thước: Micro ATX

Khe cắm RAM: 2 khe (Tối đa 64 GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Khe cắm ổ cứng: 4 x SATA 6Gb/s, 1 x M.2 connector

Giá niêm yết: ~~2,199,000 đ~~

Giá khuyến mại:

1,599,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard GIGABYTE H510M H V2

1,599,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Mainboard Gigabyte

Model H510M H V2

CPU hỗ trợ Intel

Chipset Intel®H470 Express Chipset

RAM hỗ trợ 11th Generation Intel®Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel®Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel®Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper

Back Panel 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

LAN / Wireless Realtek®GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Kích cỡ Micro ATX Form Factor; 22.6cm x 18.5cm

Mainboard GIGABYTE H510M H V2
