Name: Mainboard GIGABYTE Z790 EAGLE DDR5
Brand: Gigabyte
SKU: 313
Availability: InStock
Rating: 3 (544 reviews)

Mainboard GIGABYTE Z790 EAGLE DDR5

Mã SP: SP313

3 đánh giá Lượt xem: 544

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 256 GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 2 x PCI Express x1 slots

Khe cắm ổ cứng: 3 x M.2 slots, 4 x SATA 6Gb/s connectors

Giá niêm yết:

Giá khuyến mại:

Liên hệ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard GIGABYTE Z790 EAGLE DDR5

Liên hệ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

CPU hỗ trợ Intel

Chipset Z790

RAM hỗ trợ 4 x DDR5 DIMM sockets supporting up to 256 GB

Khe cắm mở rộng CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Ổ cứng hỗ trợ CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

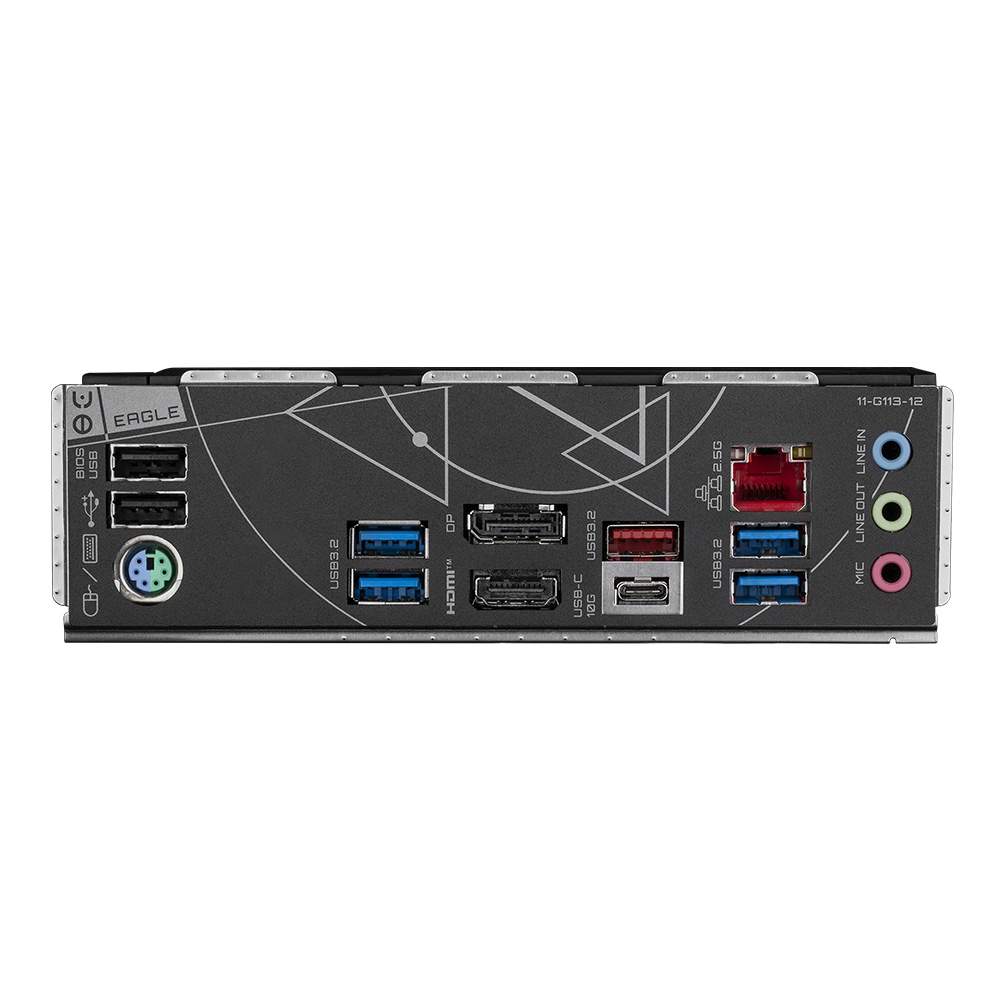

Cổng kết nối (Back Panel) 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks

LAN / Wireless Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ ATX Form Factor; 30.5cm x 24.4cm
