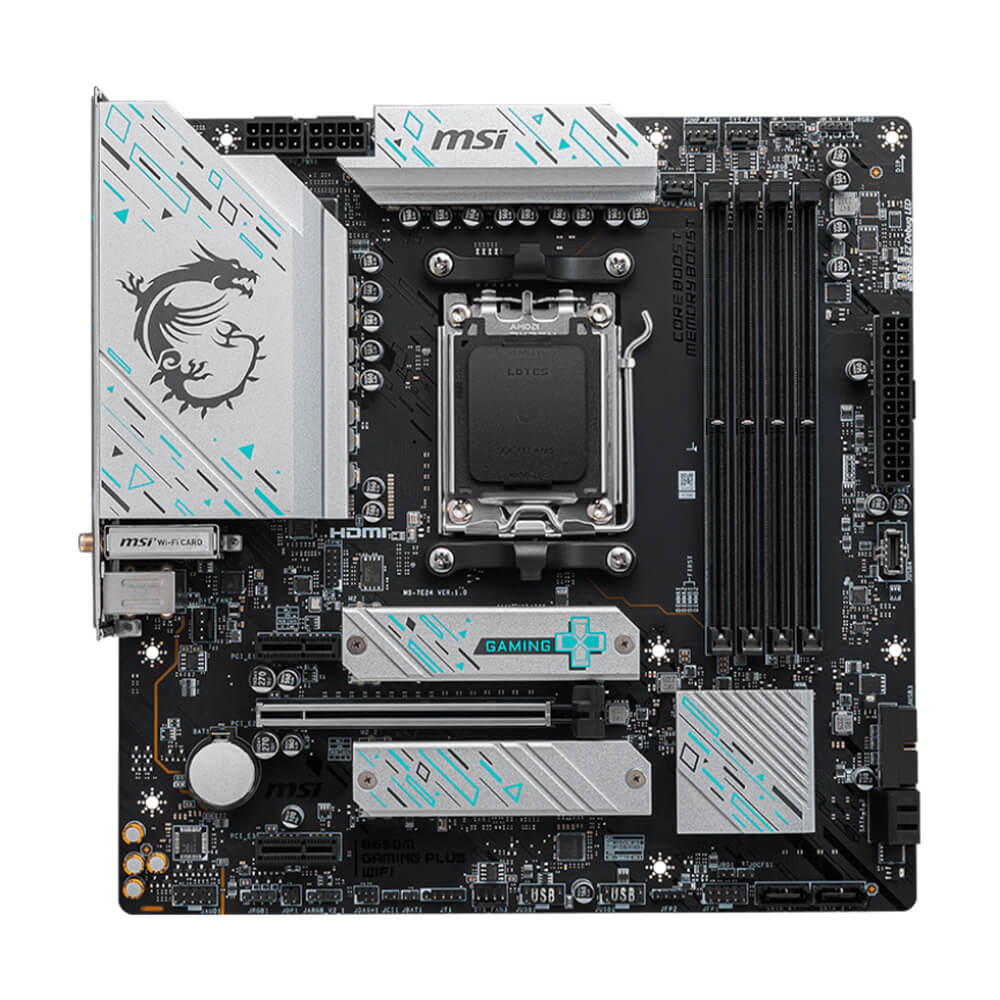

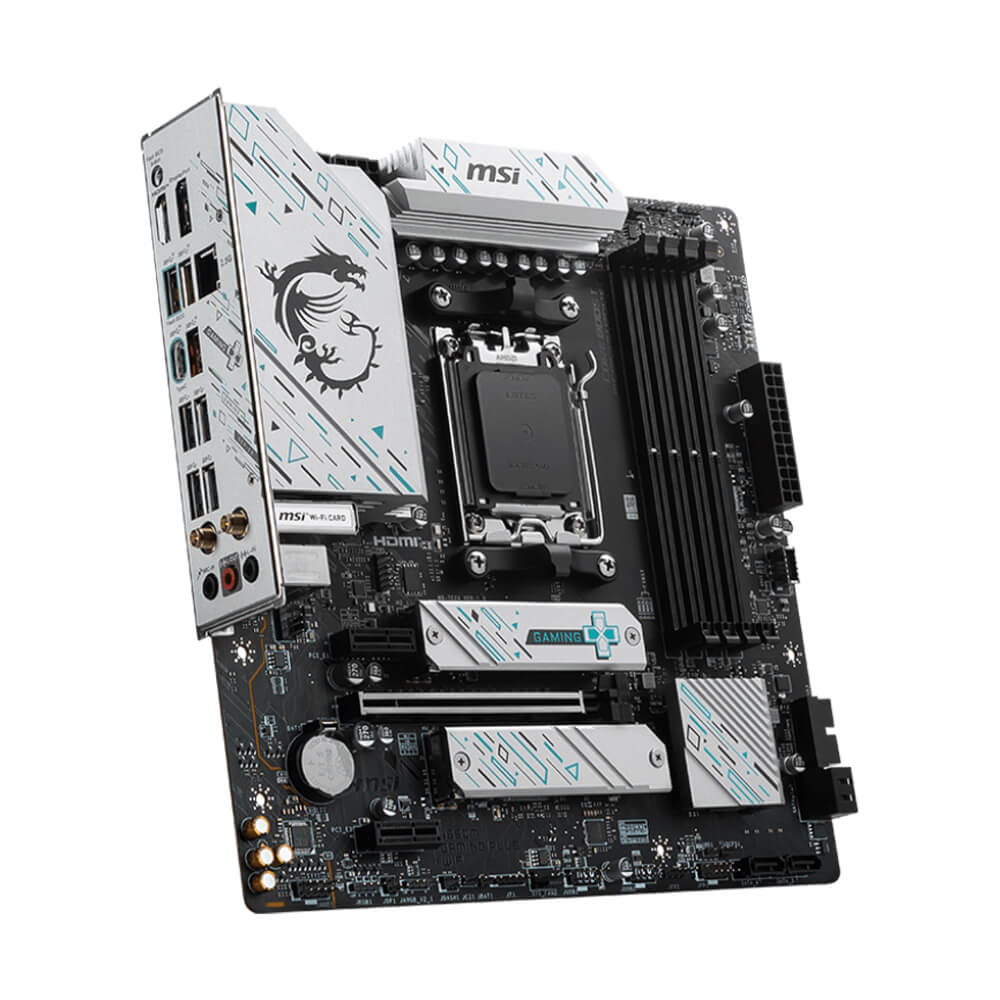

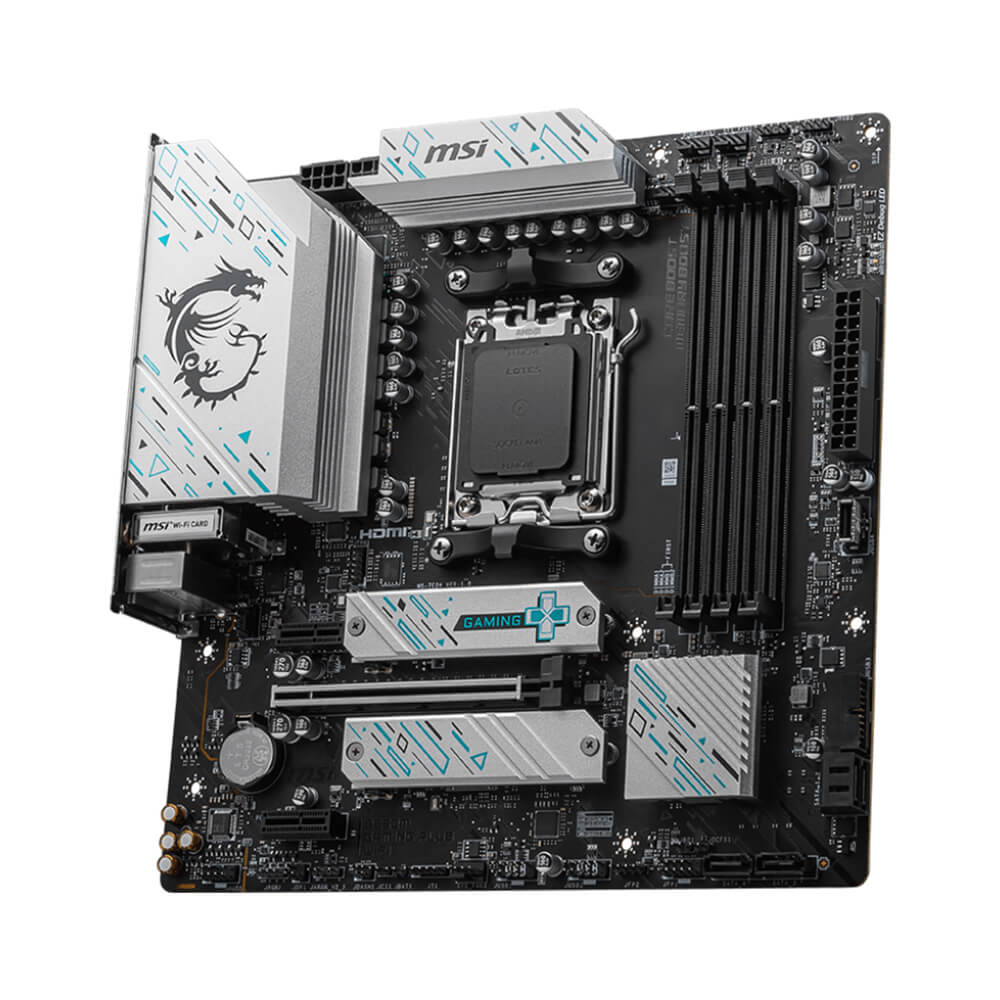

Name: Mainboard MSI B650M Gaming Plus Wifi DDR5
Brand: MSI
SKU: 748
Price: 4499000 VND
Availability: InStock
Rating: 5 (43 reviews)

Mainboard MSI B650M Gaming Plus Wifi DDR5

Mã SP: SP748

5 đánh giá Lượt xem: 43

Socket: AM5 Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Kích thước: M-ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1x PCI-E x16 slot, 2x PCI-E x1 slot

Khe cắm ổ cứng: 2x M.2, 4x SATA 6G

Giá niêm yết: ~~5,499,000 đ~~

Giá khuyến mại:

4,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI B650M Gaming Plus Wifi DDR5

4,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng MSI

CPU hỗ trợ AMD

Chipset B650

RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz

Khe cắm mở rộng 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Cổng kết nối (Internal) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports

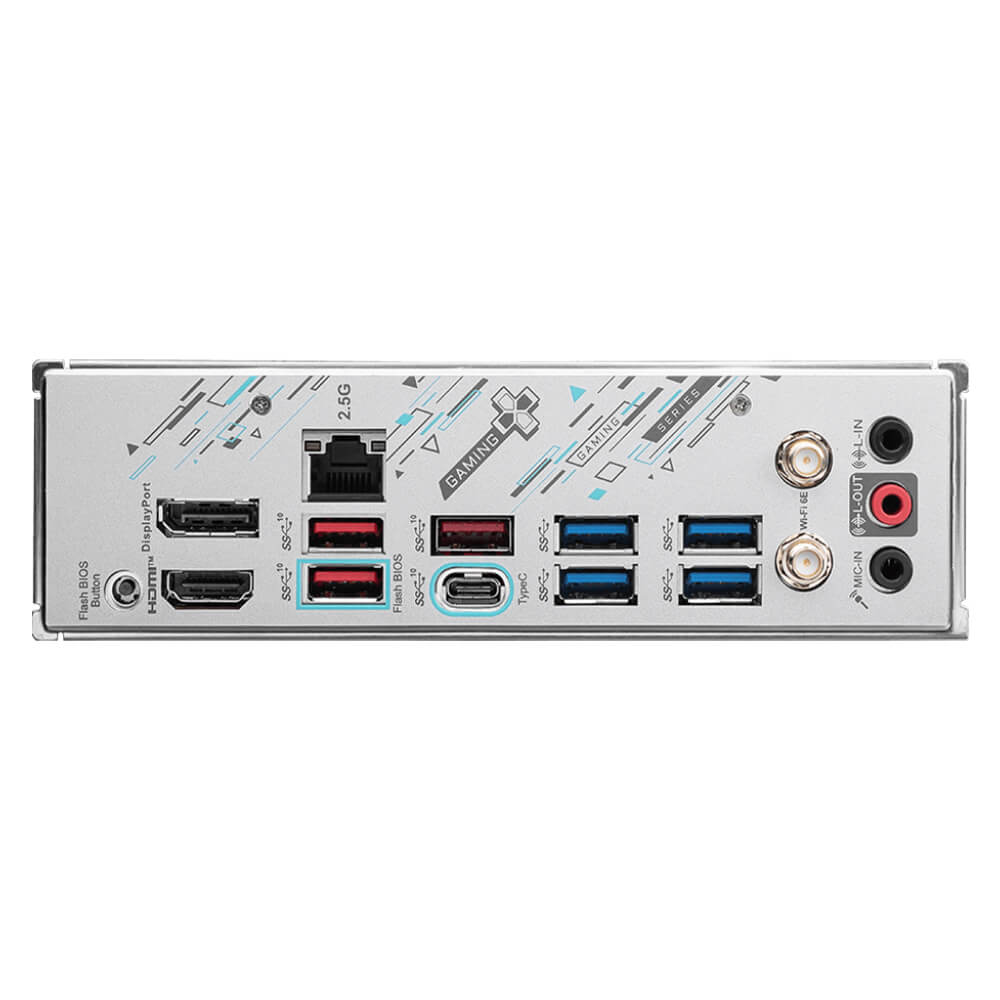

Cổng kết nối (Back Panel) DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Audio connectors

LAN / Wireless Realtek® RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3

Kích cỡ mATX 243.84mmx243.84mm
