Name: Mainboard MSI Z890 ACE DDR5 (Wifi+Bluetooth+Thunderbolt 4)
Brand: MSI
SKU: 1745
Price: 21499000 VND
Availability: InStock
Rating: 3 (172 reviews)

Mainboard MSI Z890 ACE DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Mã SP: SP1745

3 đánh giá Lượt xem: 172

Socket: LGA 1851 hỗ trợ CPU Intel® Core™ Ultra Processors (Series 2)

Kích thước:ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 3x PCI-E x16 slot

Khe cắm ổ cứng: 5x M.2, 4x SATA 6G

Giá niêm yết: ~~22,999,000 đ~~

Giá khuyến mại:

21,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI Z890 ACE DDR5 (Wifi+Bluetooth+Thunderbolt 4)

21,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Mainboard MSI

Model Mainboard MSI MEG Z890 ACE

CPU hỗ trợ Intel

Chipset INTEL Z890

RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s

Khe cắm mở rộng 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G

Cổng kết nối (Internal) 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

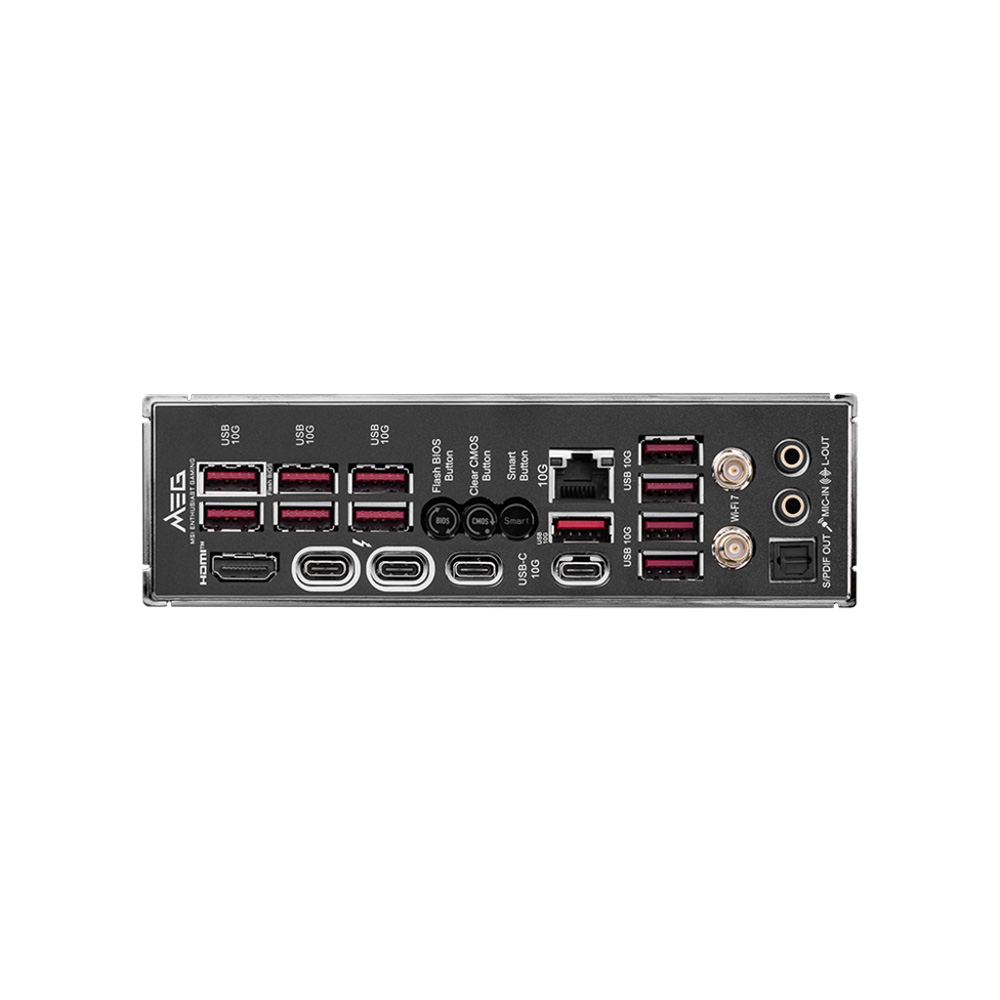

Cổng kết nối (Back Panel) USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN Wi-Fi / Bluetooth HD Audio Connectors HDMI™ 2.1 Port Thunderbolt™ 4 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out

LAN / Wireless 1x Marvell®AQC113CS 10Gbps LAN Intel®Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth®5.4**, MLO, 4KQAM

Onboard Thunderbolt 2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display

USB 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 11x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

Kích cỡ ATX 243.84mmx304.8mm

Mainboard MSI Z890 ACE DDR5 (Wifi+Bluetooth+Thunderbolt 4)
