Name: Mainboard Asrock X870E Taichi Lite DDR5 (Wifi+Bluetooth)
Brand: AMD
SKU: 1969
Availability: InStock
Rating: 3 (168 reviews)

Mainboard Asrock X870E Taichi Lite DDR5 (Wifi+Bluetooth)

Mã SP: SP1969

3 đánh giá Lượt xem: 168

Socket: AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Kích thước: EATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 2 x PCIe 5.0 x16 Slots, 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Khe cắm ổ cứng: 1 x Blazing M.2 Socket (M2_1, Key M), 1 x Hyper M.2 Socket (M2_2, Key M), 1 x Hyper M.2 Socket (M2_3, Key M), 1 x Hyper M.2 Socket (M2_4, Key M), 6 x SATA3 6.0 Gb/s Connectors

Giá niêm yết:

Giá khuyến mại:

Liên hệ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock X870E Taichi Lite DDR5 (Wifi+Bluetooth)

Liên hệ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

Model X870E Taichi Lite

CPU hỗ trợ AMD

Chipset AMD X870E

RAM hỗ trợ Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*- Max. capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Khe cắm mở rộng CPU:- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*Chipset:- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module- Supports AMD CrossFire™

Ổ cứng hỗ trợ CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 6 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal) - 3 x Thermistor Cable Headers- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED

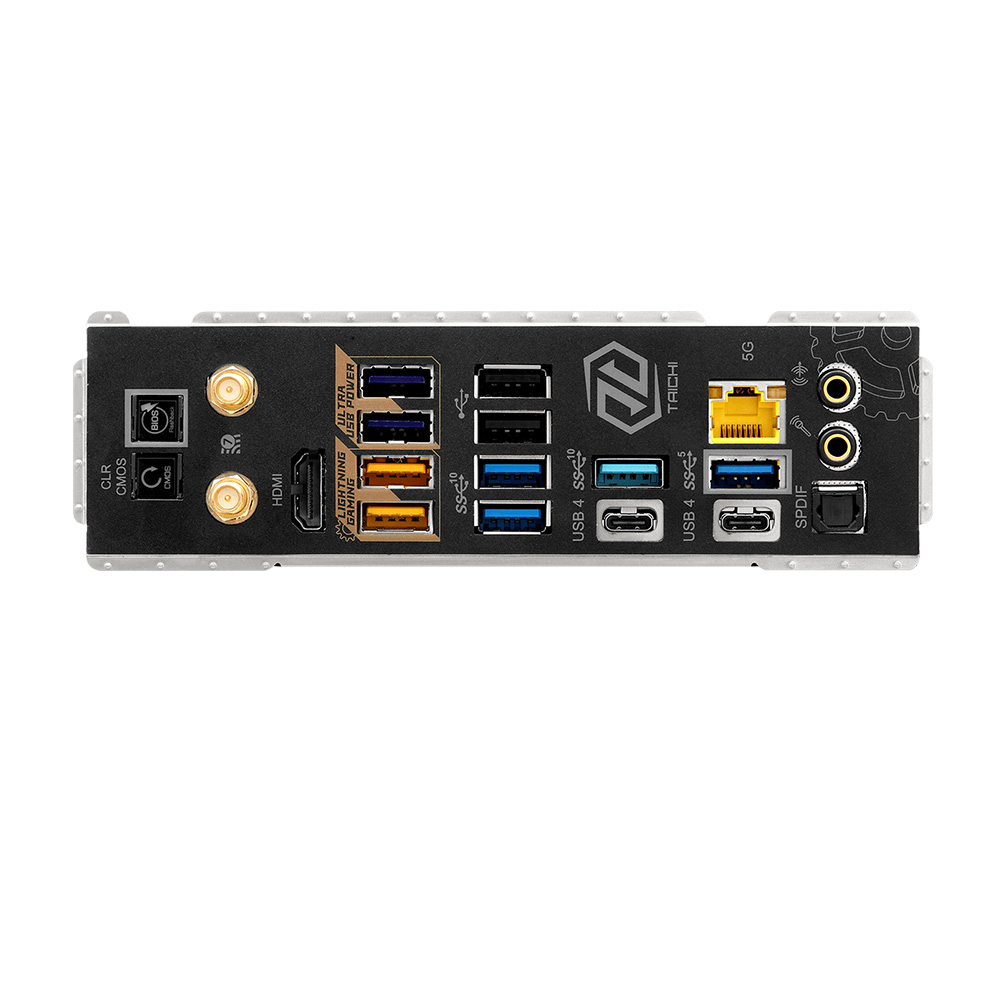

Cổng kết nối (Back Panel) - 2 x Antenna Ports- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB4 Type-C Ports (40 Gb/s)*- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x Clear CMOS Button- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)

LAN / Wireless - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s- Realtek RTL8126- 802.11be 2x2 Wi-Fi 7 Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be- Supports 2.4GHz/5GHz/6GHz* frequency band- Supports 160MHz channel bandwidth with 6GHz* frequency band- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.4- Supports MU-MIMO

Kích cỡ - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm- 8 Layer PCB- 2oz Copper PCB

Mainboard Asrock X870E Taichi Lite DDR5 (Wifi+Bluetooth)
