Name: Mainboard Asus ROG STRIX B860-G GAMING WIFI DDR5 (Thunderbolt4+Bluetooth)
Brand: ASUS
SKU: 1231
Price: 7899000 VND
Availability: InStock
Rating: 4 (8 reviews)

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ Support Intel Core Ultra Processors (Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel B860 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 256GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)

Đồ họa 1 x DisplayPort 1 x HDM port 1 x Intel Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs

Khe cắm mở rộng Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot

Ổ cứng hỗ trợ Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2230/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

ETHERNET 1 x Intel 2.5Gb Ethernet ASUS LANGuard

USB Rear USB (Total 10 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps ports (1 x USB Type-C) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports

Cổng kết nối (Internal) Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header

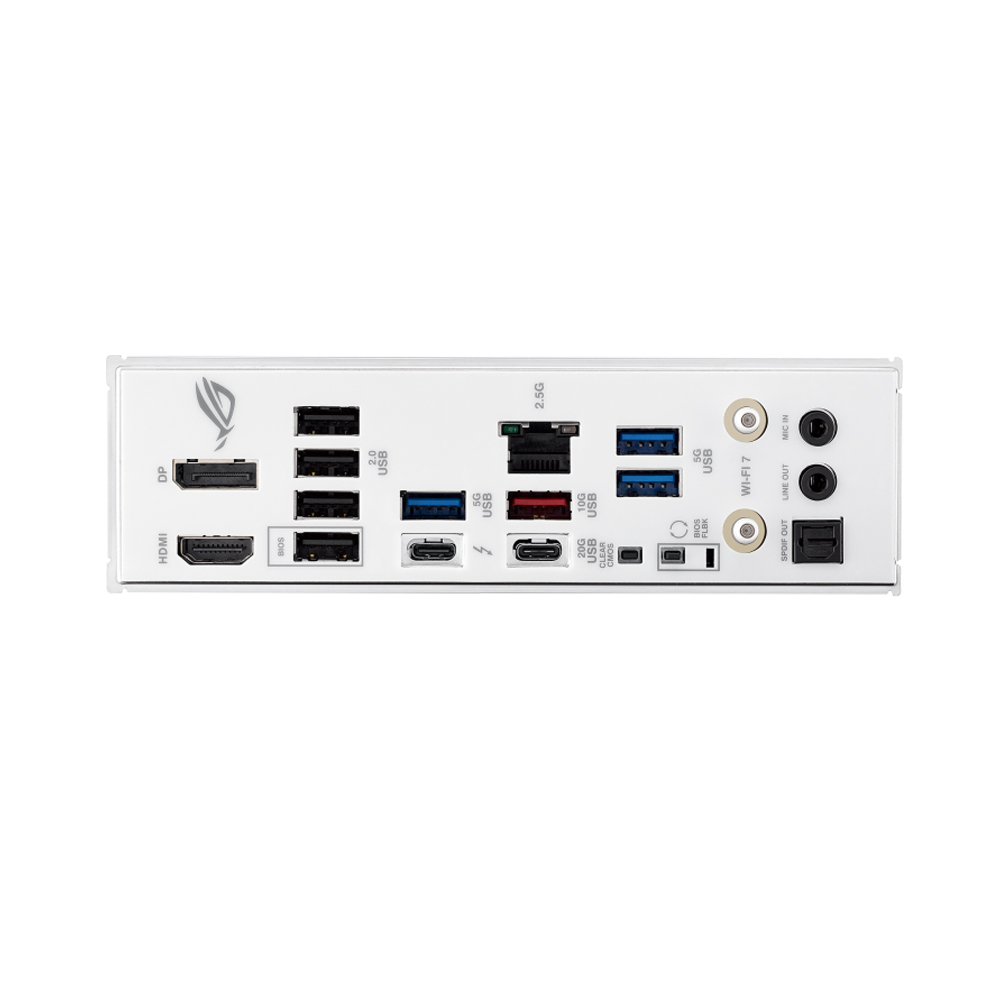

Cổng kết nối (Back Panel) 1 x Thunderbolt 4 USB Type-C port(s) 1 x USB 20Gbps port(s) (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port(s) (1 x Type-A) 3 x USB 5Gbps port(s) (3 x Type-A) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

LAN / Wireless Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4

Âm thanh Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover

Kích cỡ micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Mainboard Asus ROG STRIX B860-G GAMING WIFI DDR5 (Thunderbolt4+Bluetooth)
