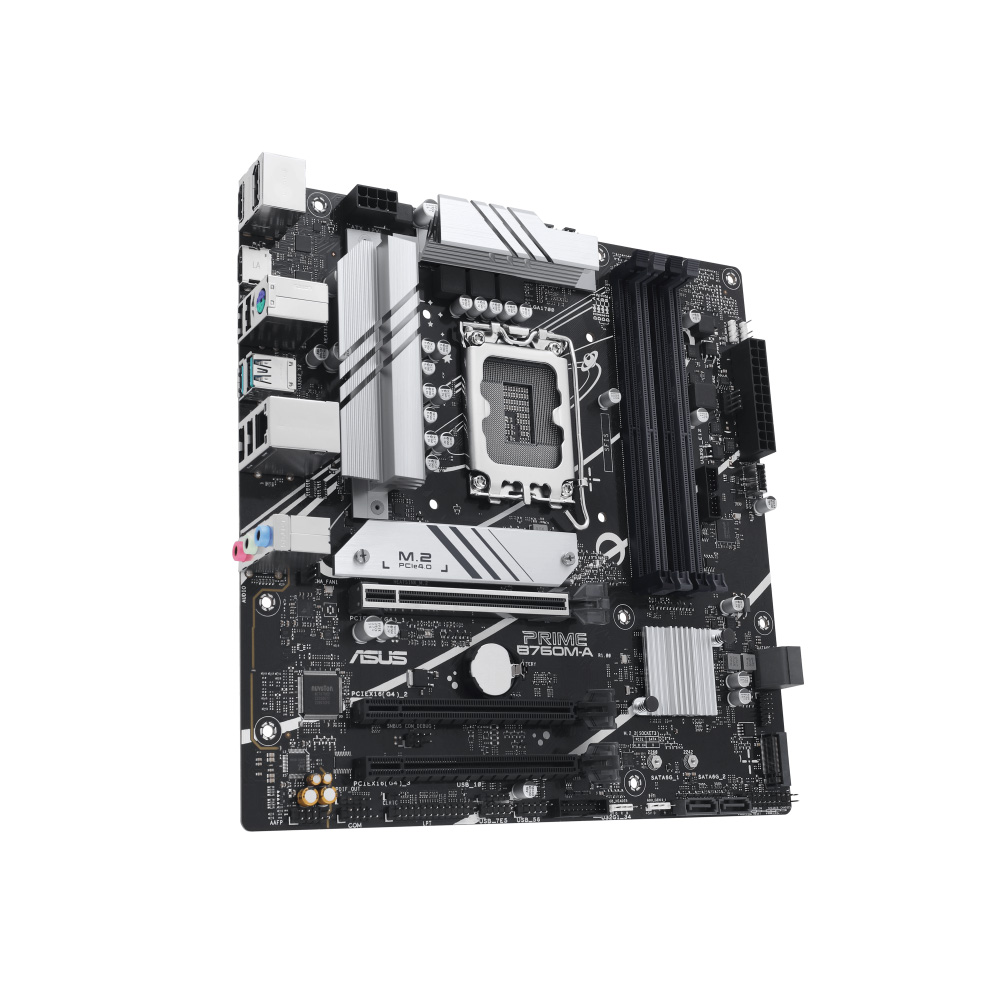

Name: Mainboard Asus Prime B760M-A DDR5
Brand: ASUS
SKU: 1879
Price: 3299000 VND
Availability: InStock
Rating: 3 (61 reviews)

Mainboard Asus Prime B760M-A DDR5

Mã SP: SP1879

3 đánh giá Lượt xem: 61

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13, 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)

Khe cắm ổ cứng: 2 x M.2 slots and 4x SATA 6Gb/s ports

Giá niêm yết:

Giá khuyến mại:

3,299,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus Prime B760M-A DDR5

3,299,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model PRIME B760M-A

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ 4 x DIMM slots, Max. 256GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng Intel®14th &13th& 12thGen Processors 1 x PCIe 4.0 x16 slot Intel®B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Ổ cứng hỗ trợ Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel®13th& 12thGen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

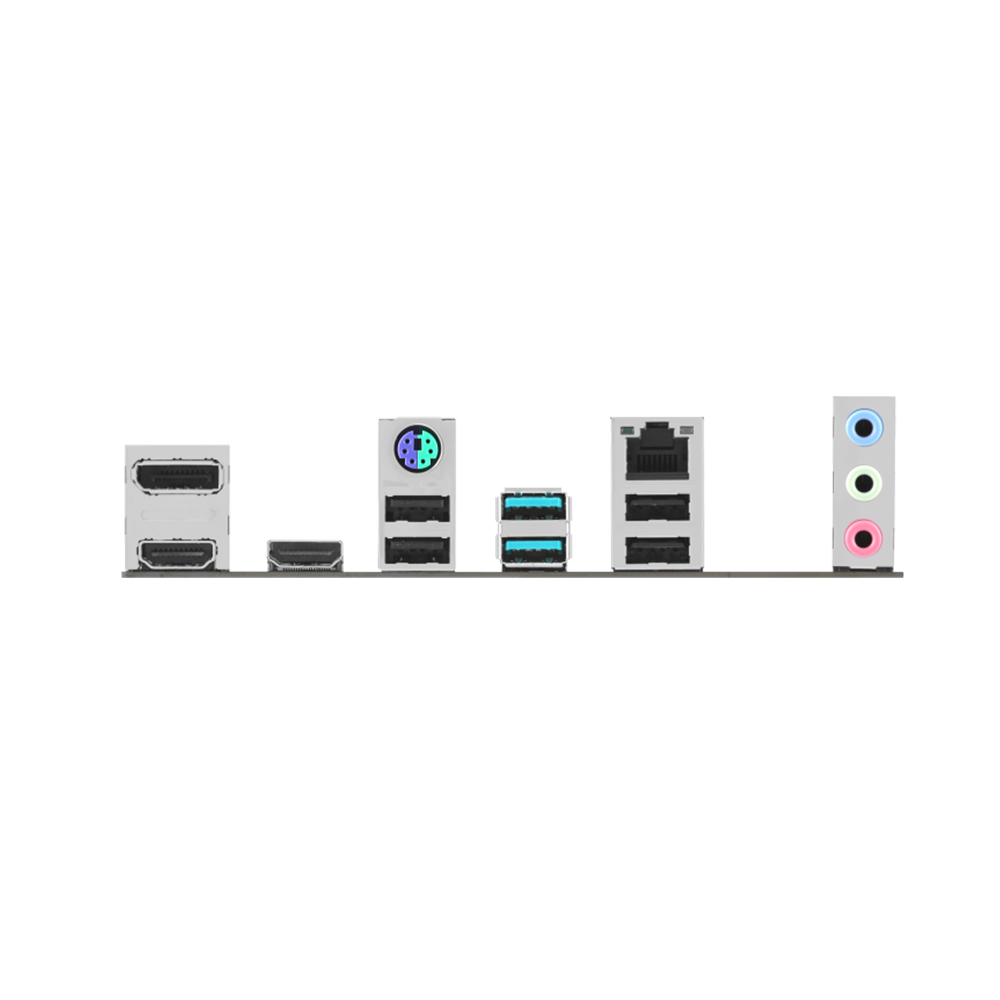

Cổng kết nối (Back Panel) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITMports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless 1 x Realtek 2.5Gb Ethernet

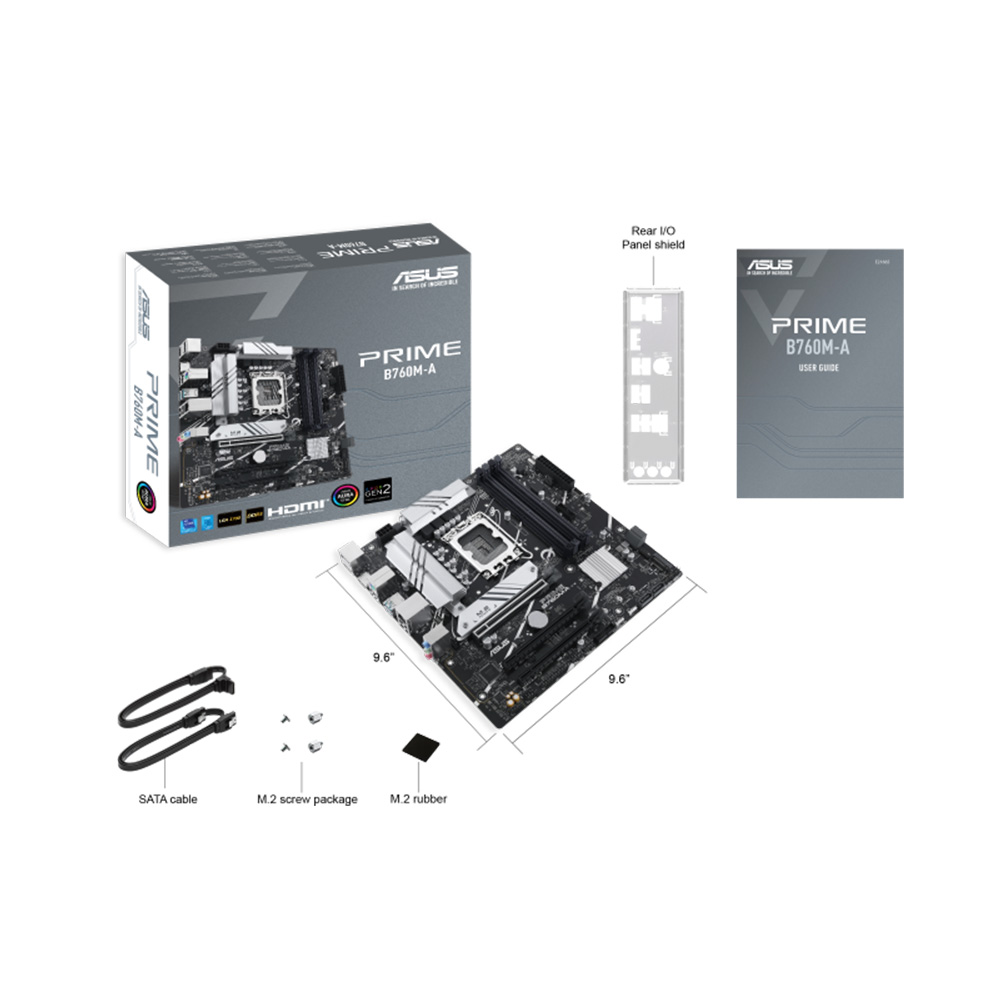

Kích cỡ mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
