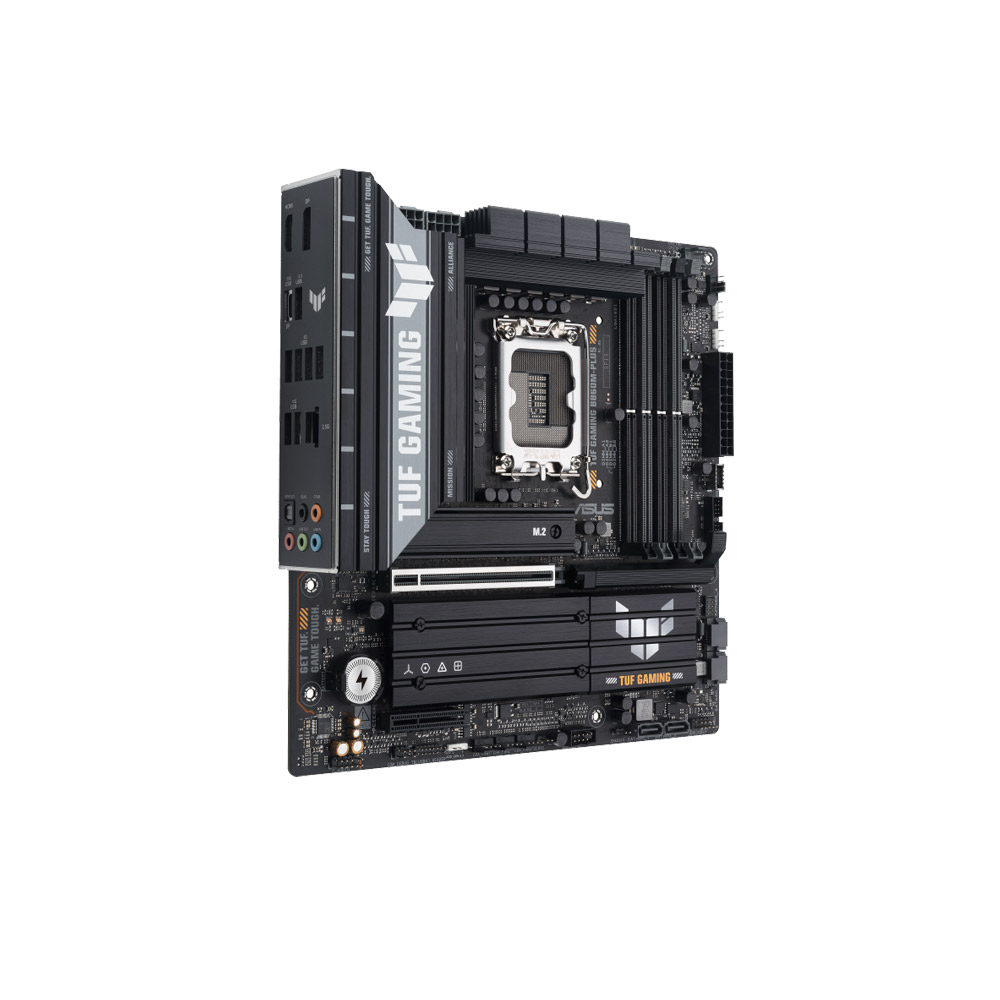

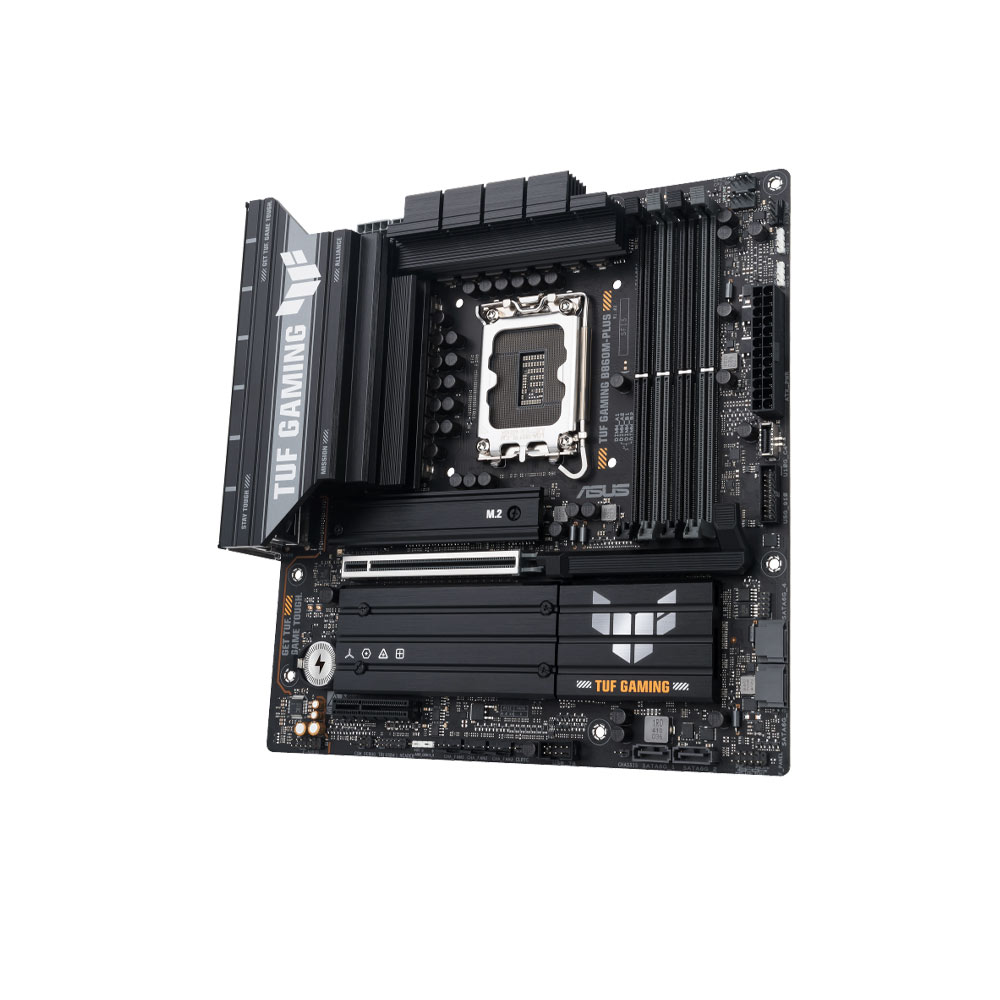

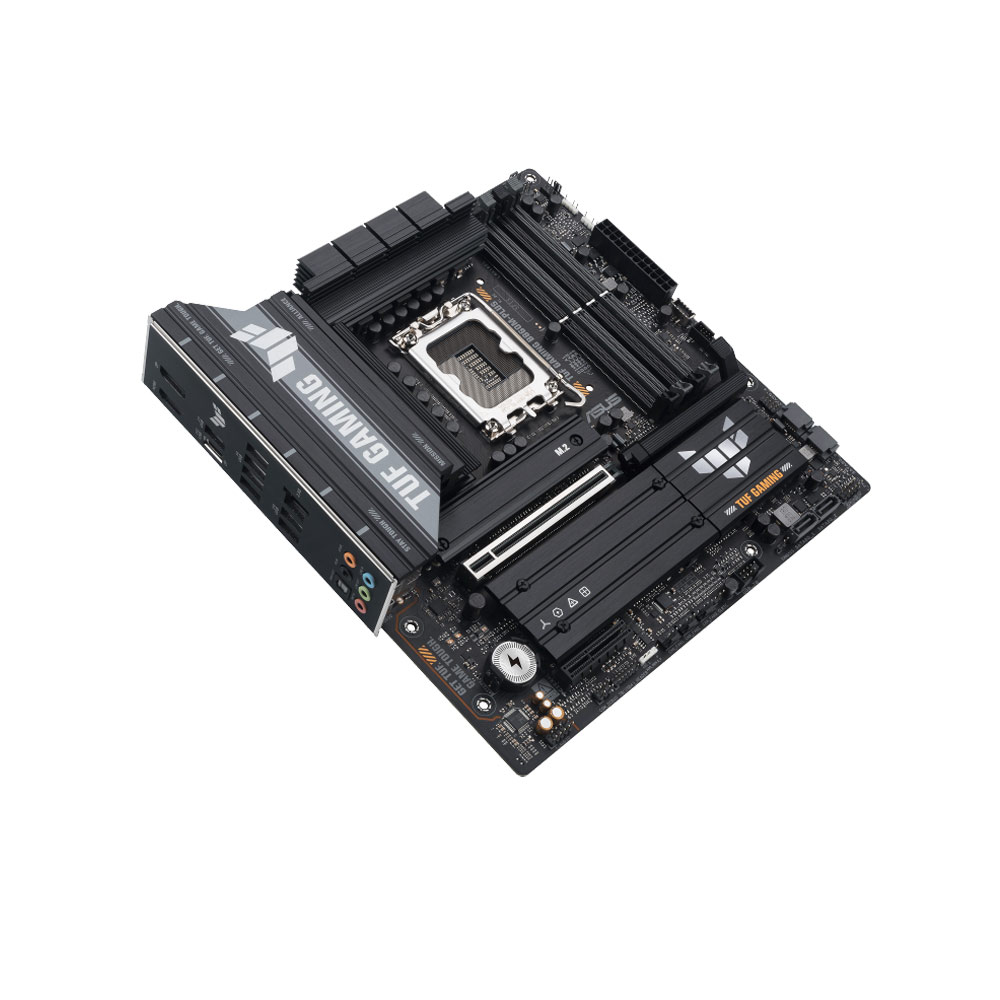

Name: Mainboard Asus TUF GAMING B860M-PLUS DDR5
Brand: ASUS
SKU: 2257
Price: 6499000 VND
Availability: InStock
Rating: 3 (136 reviews)

Mainboard Asus TUF GAMING B860M-PLUS DDR5

Mã SP: SP2257

3 đánh giá Lượt xem: 136

Chipset: Intel B860

Kích thước: mATX

Khe cắm RAM: 4 x DIMM slots, max. 256GB, DDR5

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot

Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports

Hệ điều hành: Windows 11, Windows 10 64-bit

Giá niêm yết: ~~7,149,000 đ~~

Giá khuyến mại:

6,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus TUF GAMING B860M-PLUS DDR5

6,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel B860 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)

Đồ họa 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output

Khe cắm mở rộng Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x4 slot

Ổ cứng hỗ trợ Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

ETHERNET 1 x Realtek 2.5Gb Ethernet TUF LANGuard

USB Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 ports (1 x Type-A) Front USB (Total 8 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports

Cổng kết nối (Internal) Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header

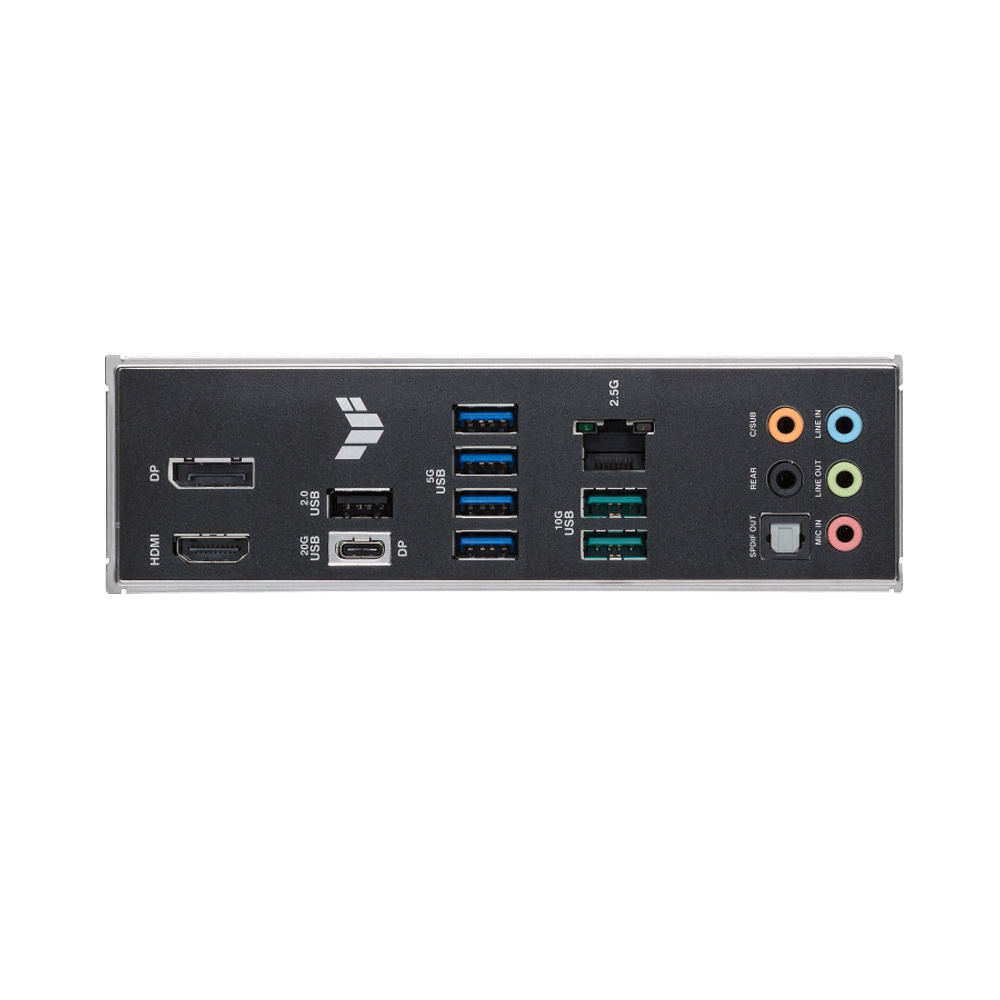

Cổng kết nối (Back Panel) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Âm thanh Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers

Kích cỡ mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Mainboard Asus TUF GAMING B860M-PLUS DDR5
