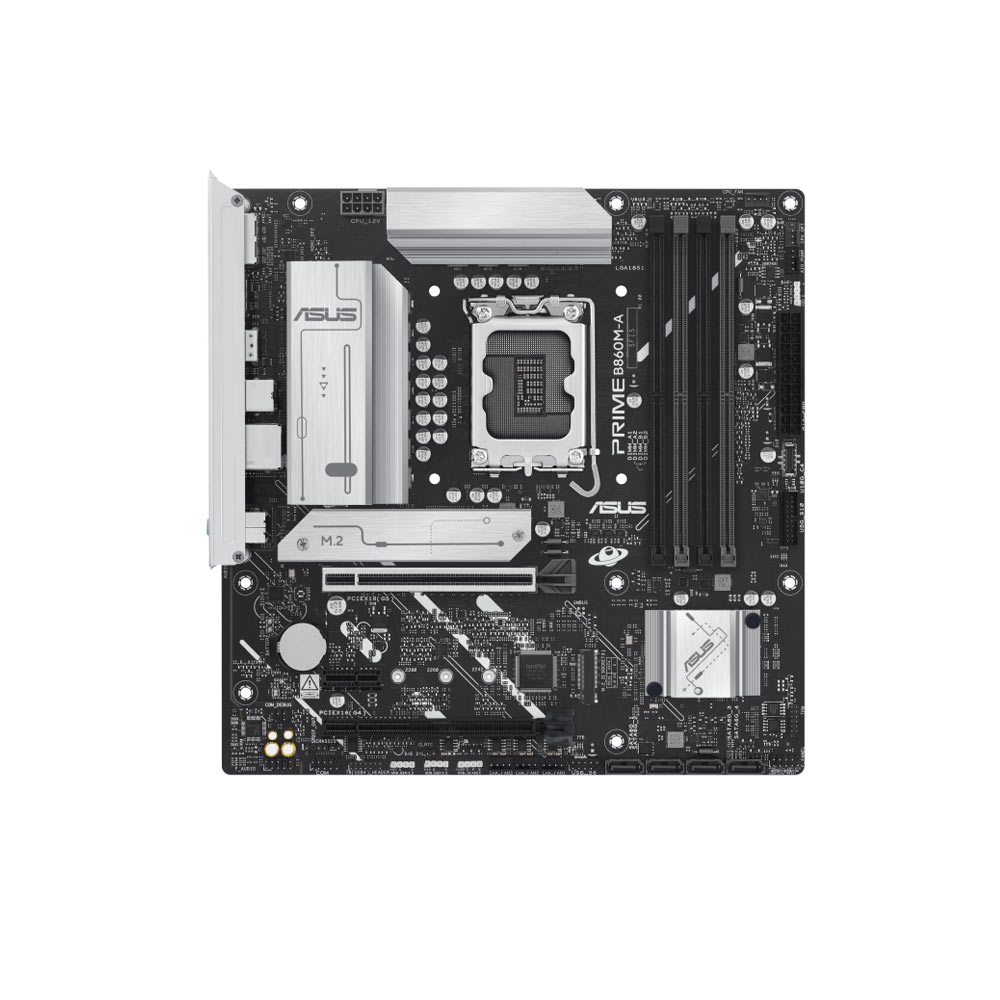

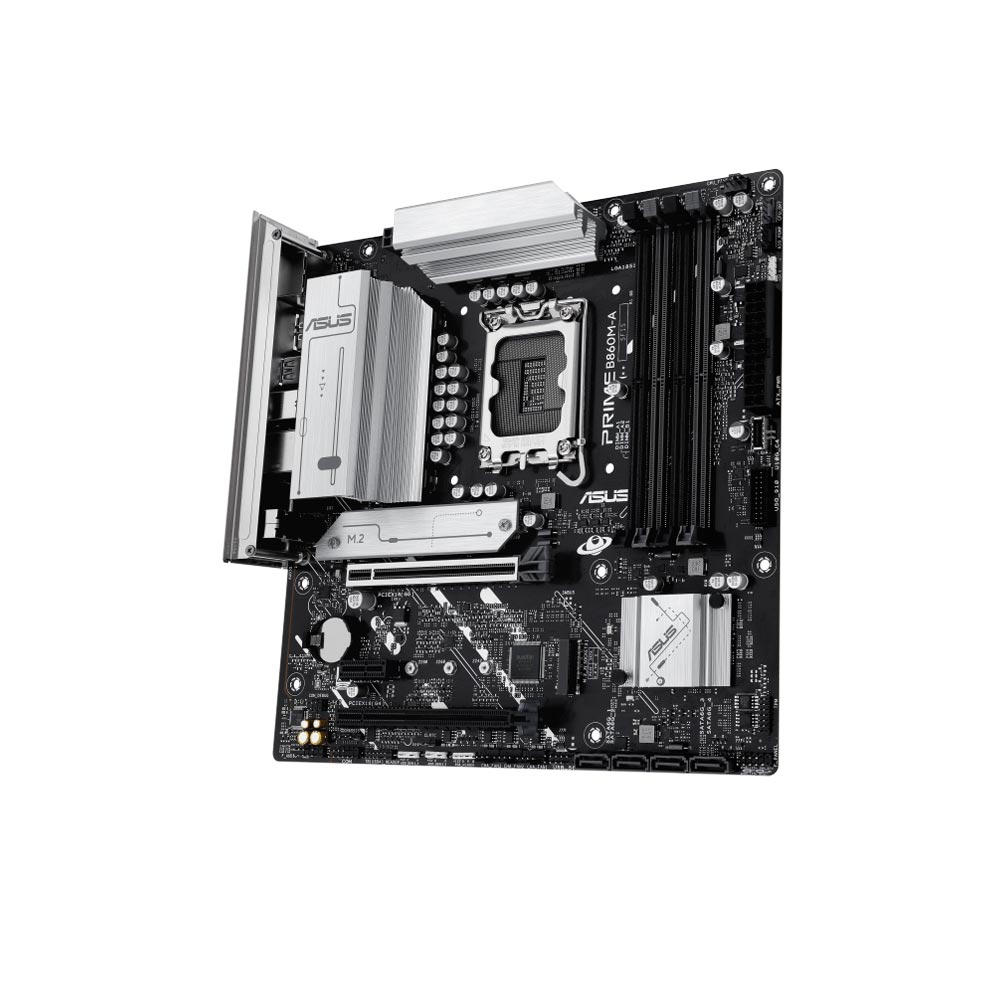

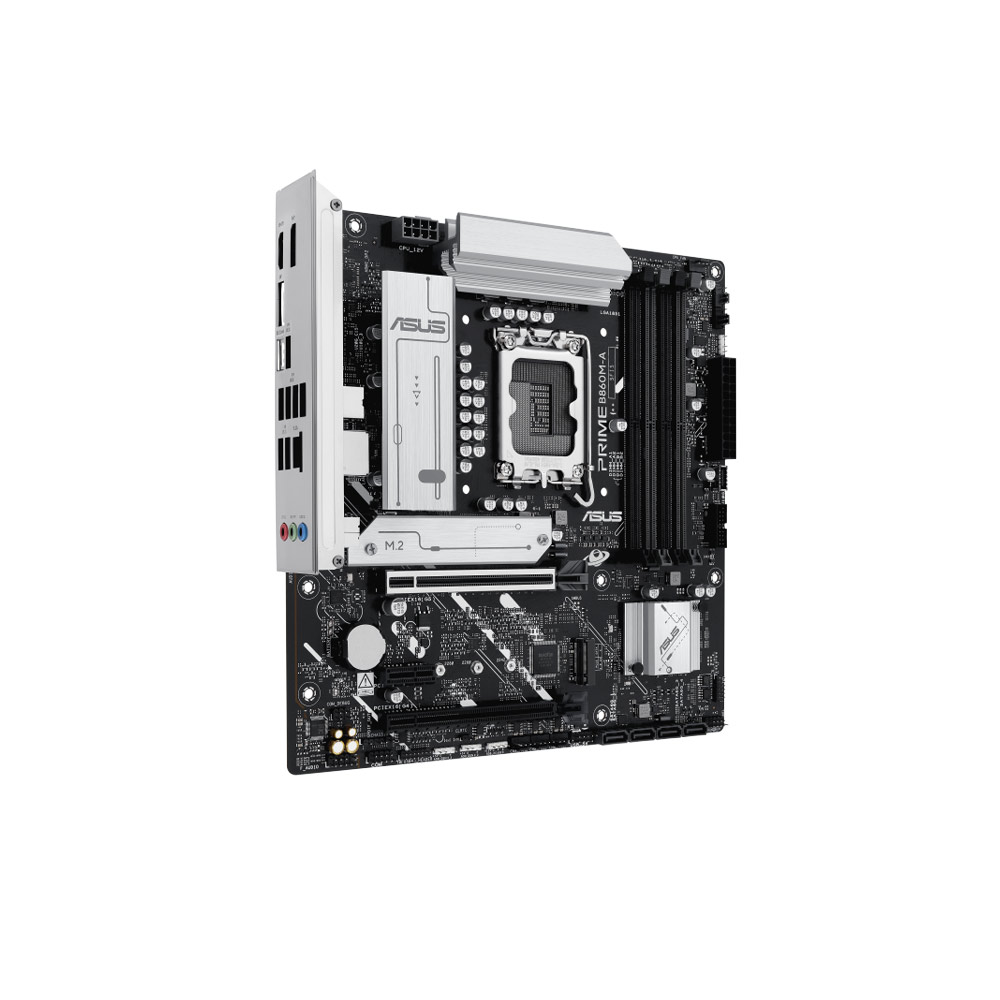

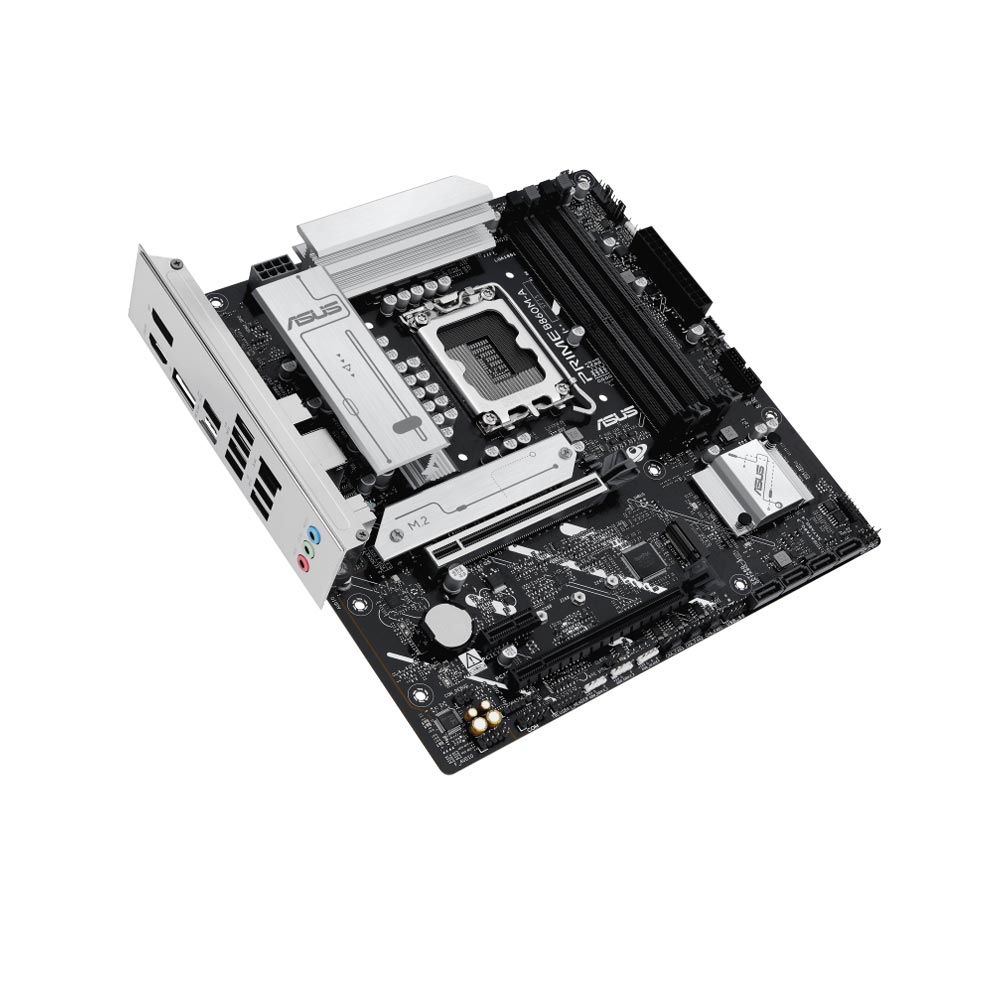

Name: Mainboard Asus PRIME B860M-A-CSM DDR5
Brand: ASUS
SKU: 1839
Price: 5299000 VND
Availability: InStock
Rating: 4 (860 reviews)

Mainboard Asus PRIME B860M-A-CSM DDR5

Mã SP: SP1839

4 đánh giá Lượt xem: 860

Chipset: Intel B860

Kích thước: micro-ATX

Khe cắm RAM: 4 x DIMM slots, max. 256GB, DDR5

Khe cắm mở rộng: 1 x PCIe 5.0 x16 slot; 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Hệ điều hành: Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Giá niêm yết: ~~5,829,000 đ~~

Giá khuyến mại:

5,299,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PRIME B860M-A-CSM DDR5

5,299,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset Intel B860 Chipset

RAM hỗ trợ 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII)

Đồ họa 2 x DisplayPort 1 x HDMI port

Khe cắm mở rộng Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports

ETHERNET 1 x Realtek 2.5Gb Ethernet TUF LANGuard

USB Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Cổng kết nối (Internal) Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header

Cổng kết nối (Back Panel) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks

LAN / Wireless Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4

Âm thanh Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Kích cỡ micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Mainboard Asus PRIME B860M-A-CSM DDR5
