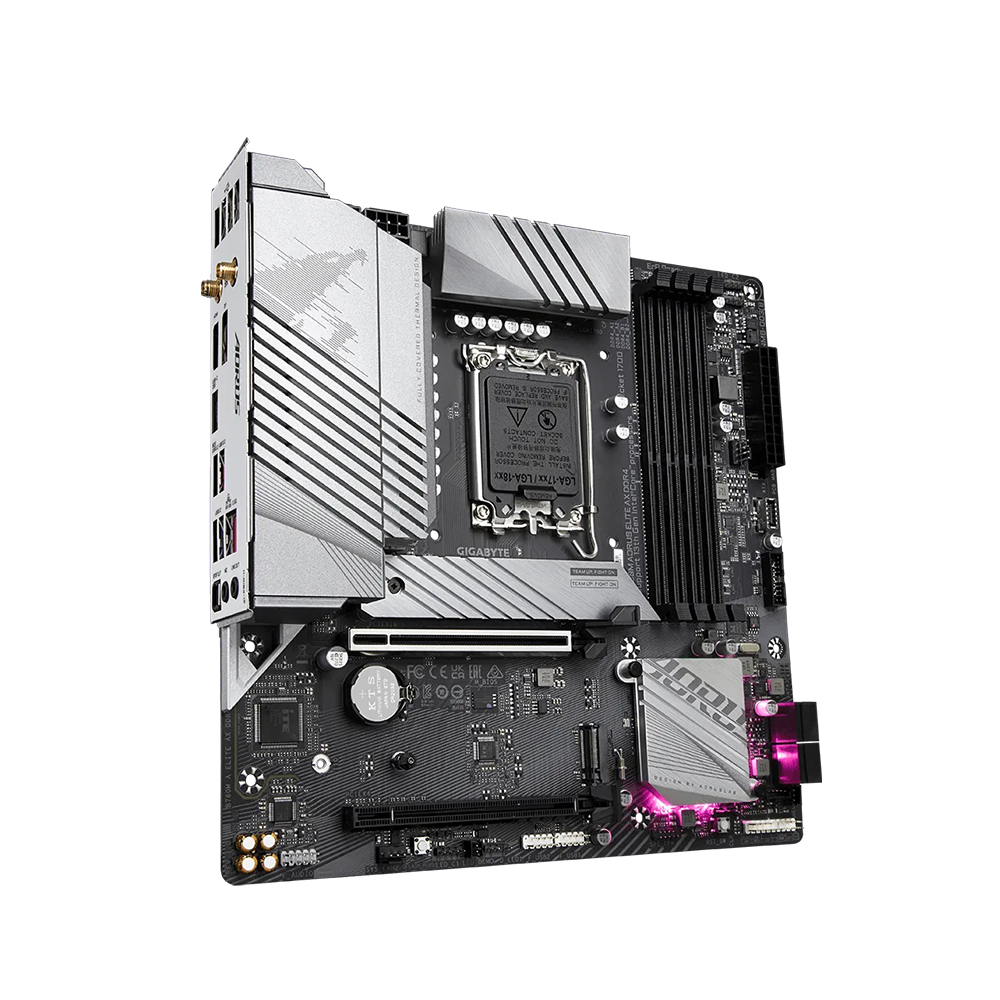

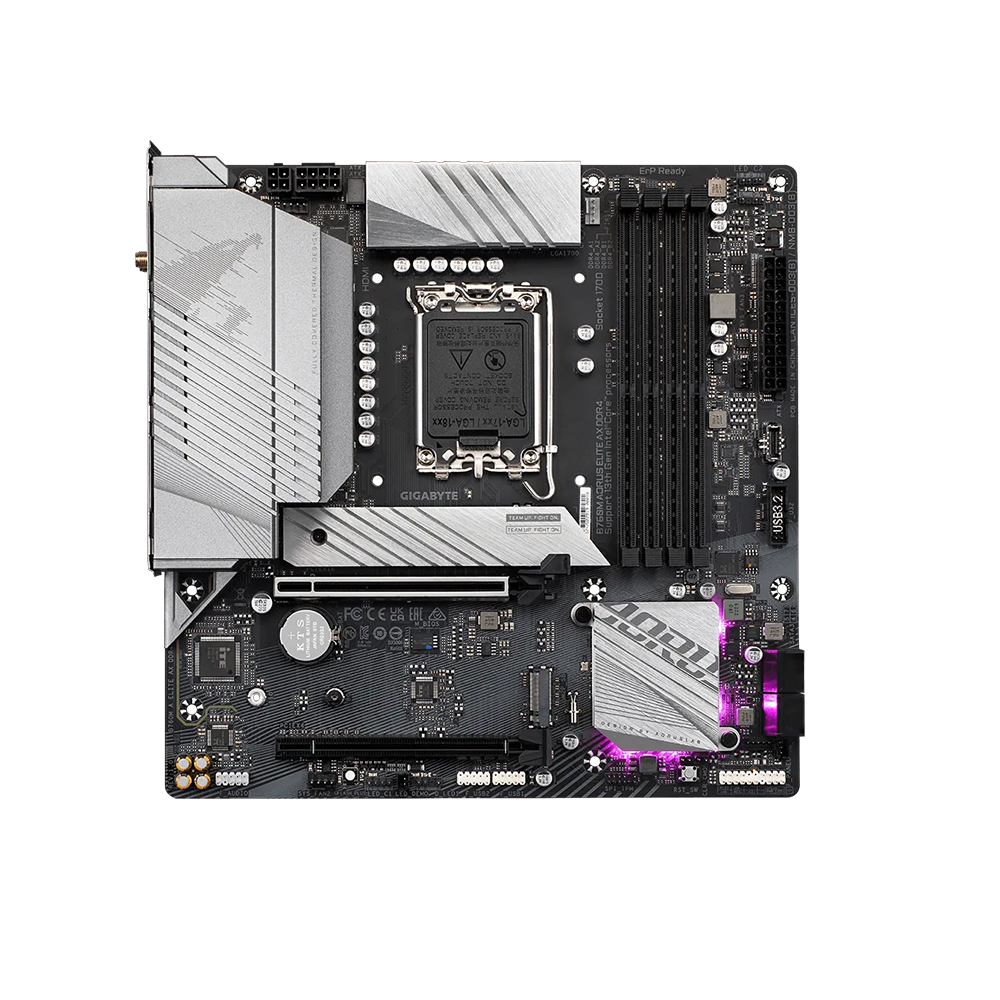

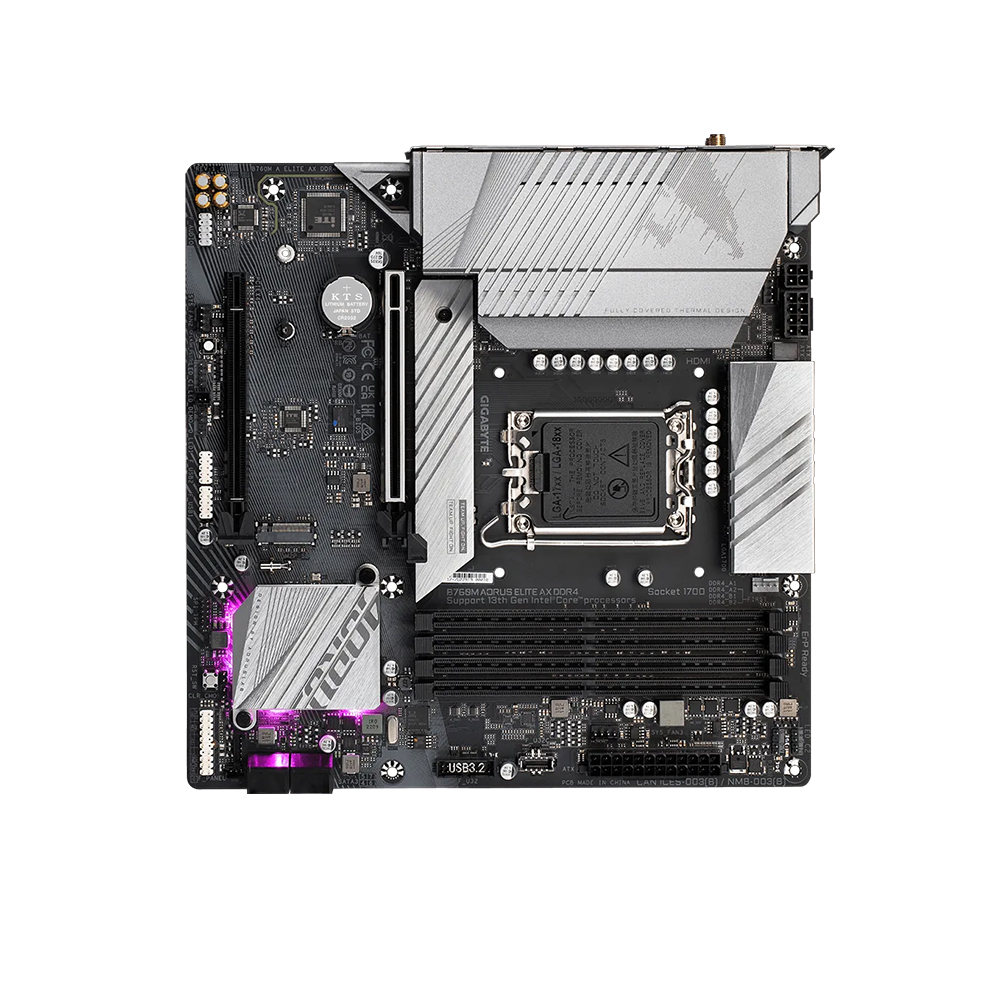

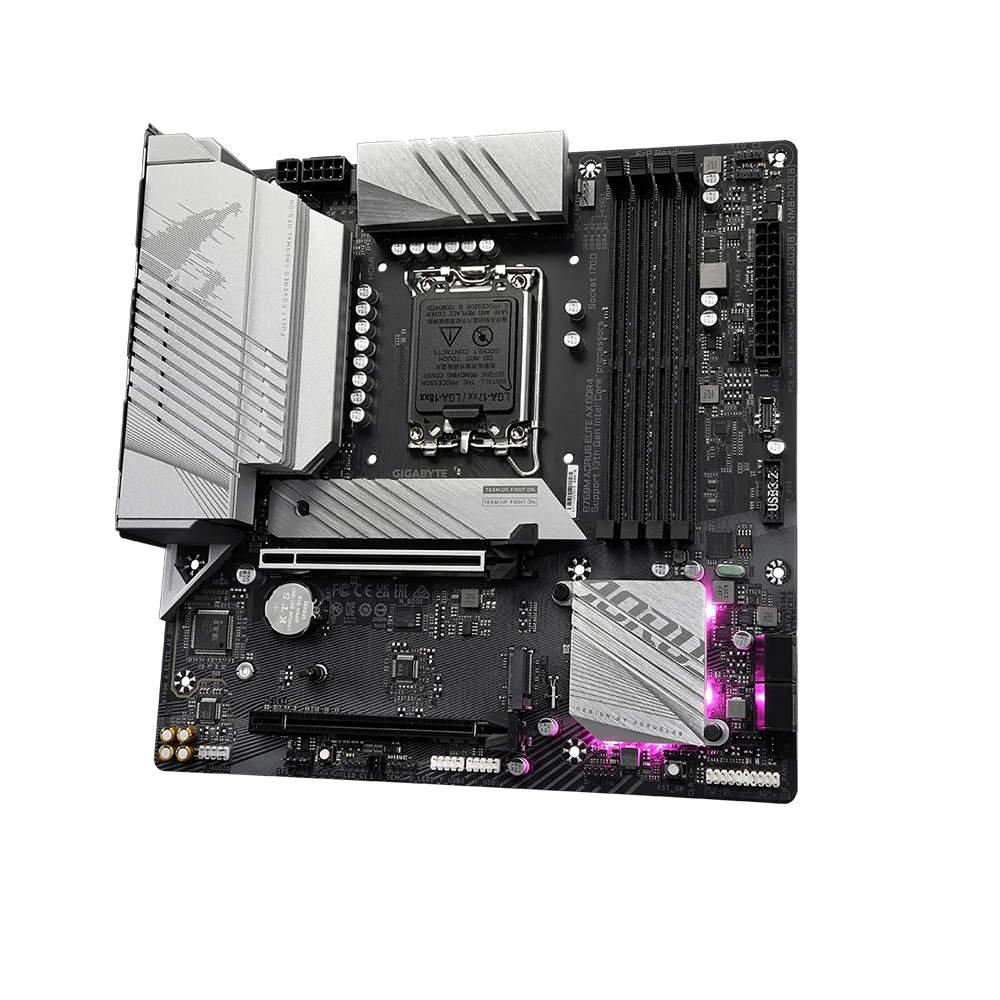

Name: Mainboard Gigabyte B760M Aorus ELITE AX DDR4 (Wifi+Bluetooth)
Brand: Gigabyte
SKU: 1900
Price: 3779000 VND
Availability: InStock
Rating: 4 (654 reviews)

Mainboard Gigabyte B760M Aorus ELITE AX DDR4 (Wifi+Bluetooth)

Mã SP: SP1900

4 đánh giá Lượt xem: 654

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot

Khe cắm ổ cứng: 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Giá niêm yết: ~~5,199,000 đ~~

Giá khuyến mại:

3,779,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte B760M Aorus ELITE AX DDR4 (Wifi+Bluetooth)

3,779,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

Model B760M AORUS ELITE AX DDR4

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFireX™ technology

Ổ cứng hỗ trợ CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C®header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Cổng kết nối (Back Panel) 2 x SMA antenna connectors (2T2R) 1 x USB Type-C®port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

LAN / Wireless Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel®Wi-Fi 6E AX211 (For PCB rev. 1.0 / 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard Realtek®Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard

Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm
