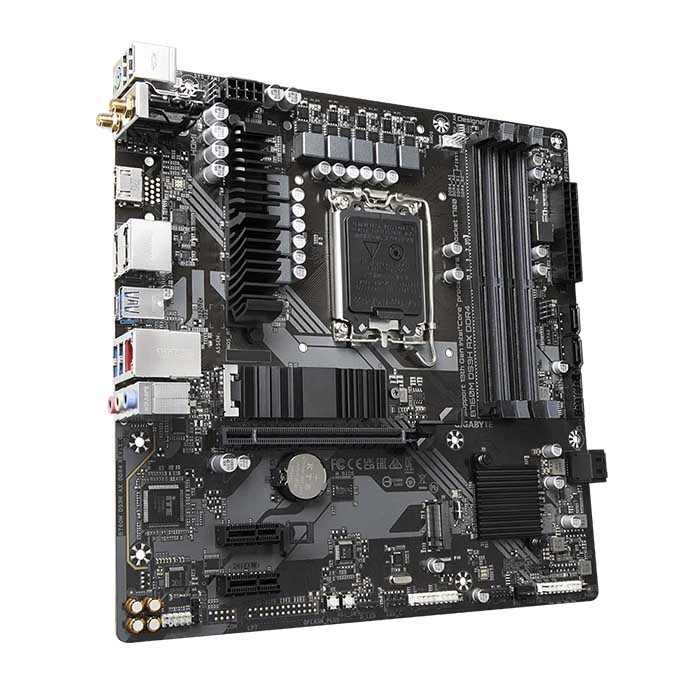

Name: Mainboard Gigabyte B760M DS3H AX DDR4 (Wifi+Bluetooth)
Brand: Gigabyte
SKU: 155
Price: 3499000 VND
Availability: InStock
Rating: 5 (332 reviews)

Mainboard Gigabyte B760M DS3H AX DDR4 (Wifi+Bluetooth)

Mã SP: SP155

5 đánh giá Lượt xem: 332

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 2 x PCI Express x1 slots

Khe cắm ổ cứng: 1 x M.2 connectors, 4 x SATA 6Gb/s connectors

Giá niêm yết: ~~4,999,000 đ~~

Giá khuyến mại:

3,499,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte B760M DS3H AX DDR4 (Wifi+Bluetooth)

3,499,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

Model B760M DS3H AX DDR4

CPU hỗ trợ Intel

Chipset B760

RAM hỗ trợ Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Cổng kết nối (Back Panel) 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C®port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks

LAN / Wireless Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm
