Name: Mainboard MSI B760M GAMING PLUS WIFI DDR5
Brand: MSI
SKU: 1894
Price: 3899000 VND
Availability: InStock
Rating: 4 (275 reviews)

Mainboard MSI B760M GAMING PLUS WIFI DDR5

Mã SP: SP1894

4 đánh giá Lượt xem: 275

Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 & 13, 14, Pentium Gold and Celeron

Kích thước: mATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 2x PCI-E x16 slot, 1x PCI-E x1 slot

Khe cắm ổ cứng: 2x M.2, 4x SATA 6G

Giá niêm yết: ~~4,999,000 đ~~

Giá khuyến mại:

3,899,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI B760M GAMING PLUS WIFI DDR5

3,899,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng MSI

Model B760M GAMING PLUS WIFI DDR5

CPU hỗ trợ Intel

Chipset INTEL B760

RAM hỗ trợ 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Khe cắm mở rộng 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G

Cổng kết nối (Internal) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports

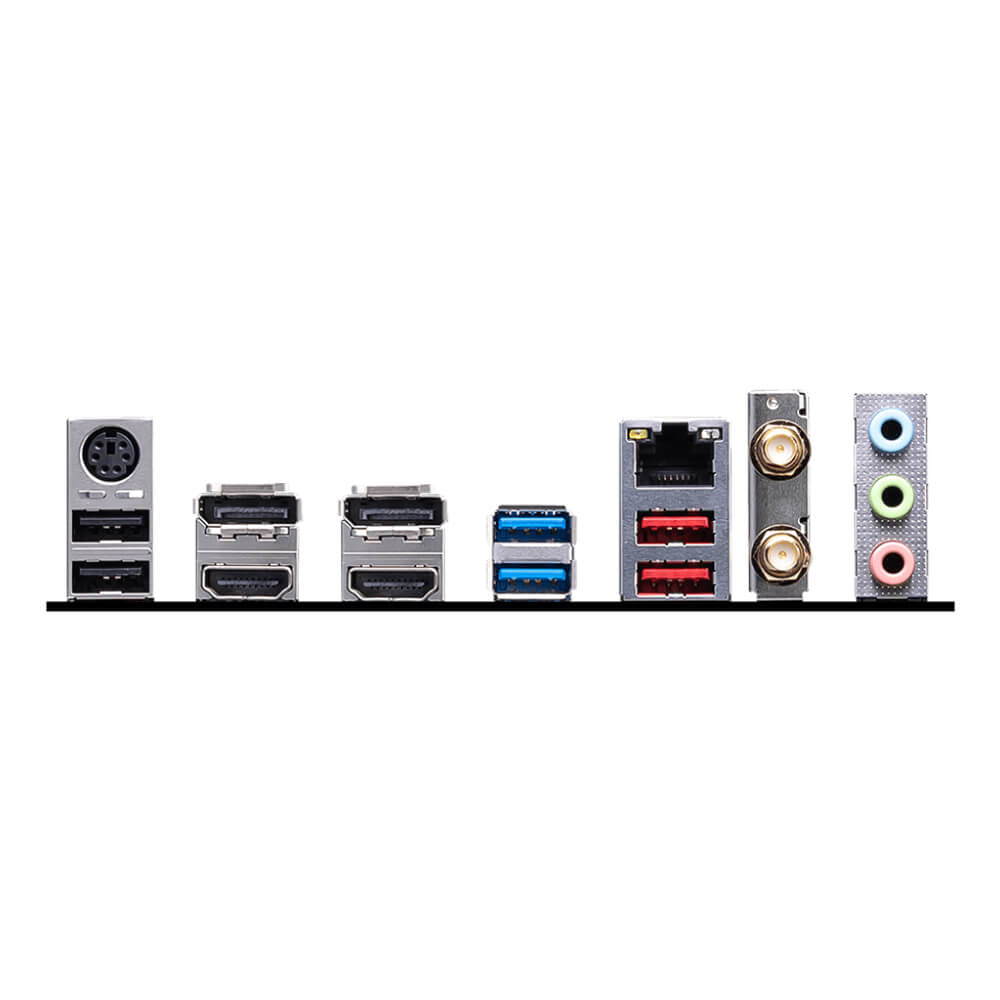

Cổng kết nối (Back Panel) Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors

LAN / Wireless Realtek® RTL8125BG 2.5G LAN Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA

Kích cỡ mATX 243.84mmx243.84mm
