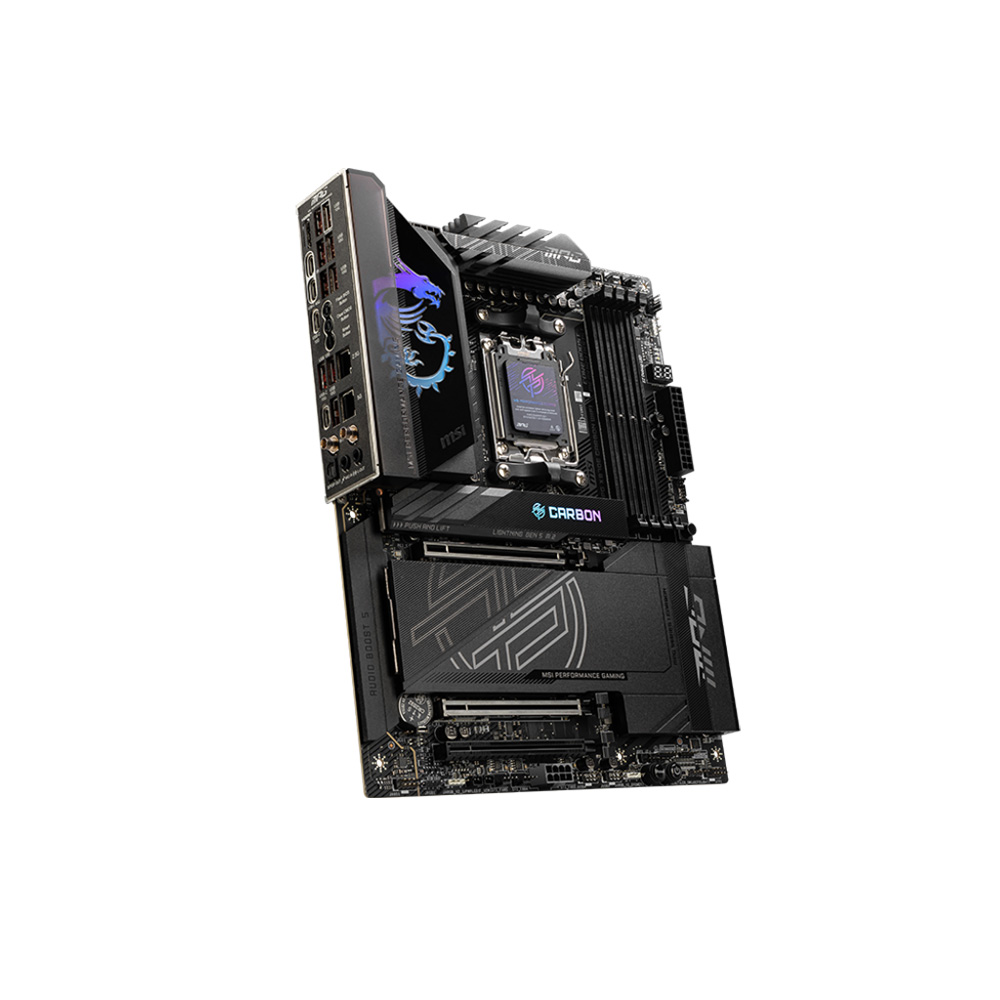

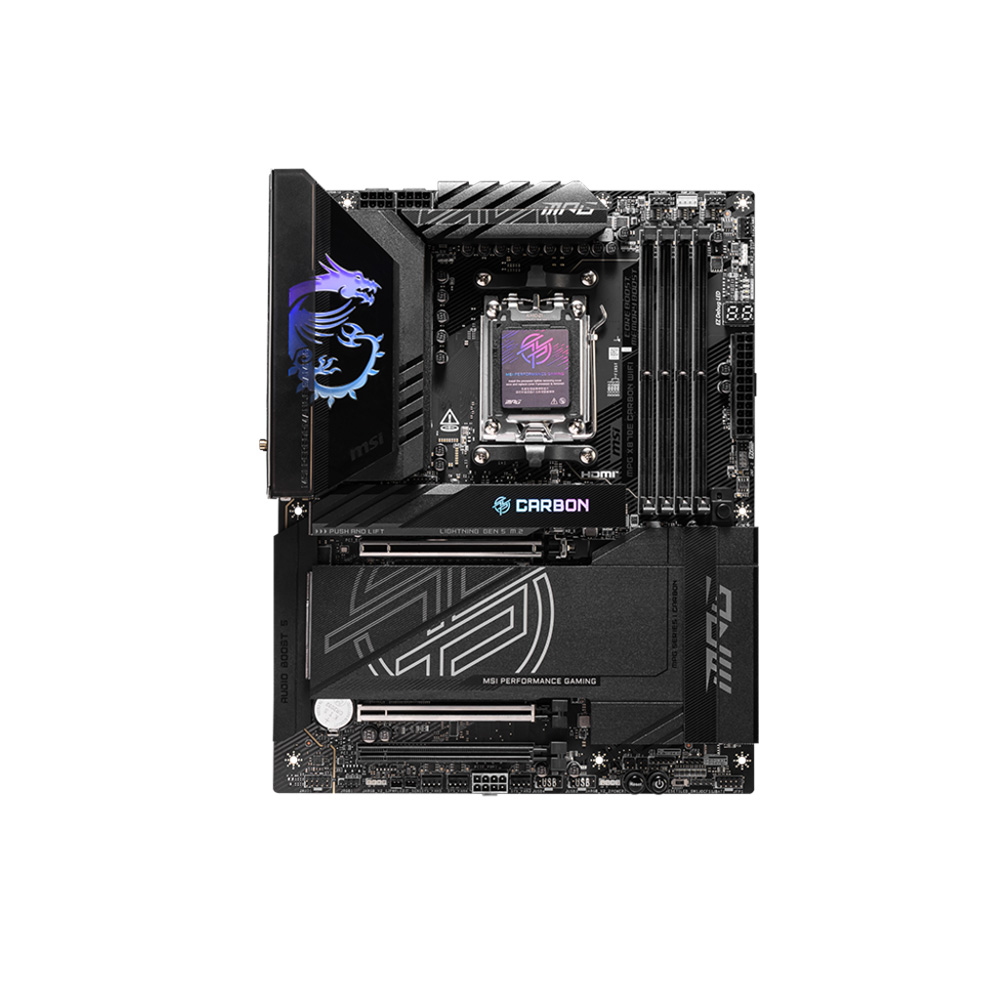

Name: Mainboard MSI MPG X870E CARBON WIFI DDR5
Brand: MSI
SKU: 1693
Price: 14999000 VND
Availability: InStock
Rating: 4 (772 reviews)

Mainboard MSI MPG X870E CARBON WIFI DDR5

Mã SP: SP1693

4 đánh giá Lượt xem: 772

Socket: Socket AM5 Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 3x PCI-E x16 slot, PCI_E1 & PCI_E2 slots

Khe cắm ổ cứng: 4x M.2, 4x SATA 6G

Giá niêm yết: ~~16,899,000 đ~~

Giá khuyến mại:

14,999,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard MSI MPG X870E CARBON WIFI DDR5

14,999,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng MSI

Model Mainboard MSI MPG X870E CABNON WIFI DDR5

CPU hỗ trợ AMD

Chipset AMD X870

RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s

Khe cắm mở rộng 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4

Ổ cứng hỗ trợ 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Cổng kết nối (Internal) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports

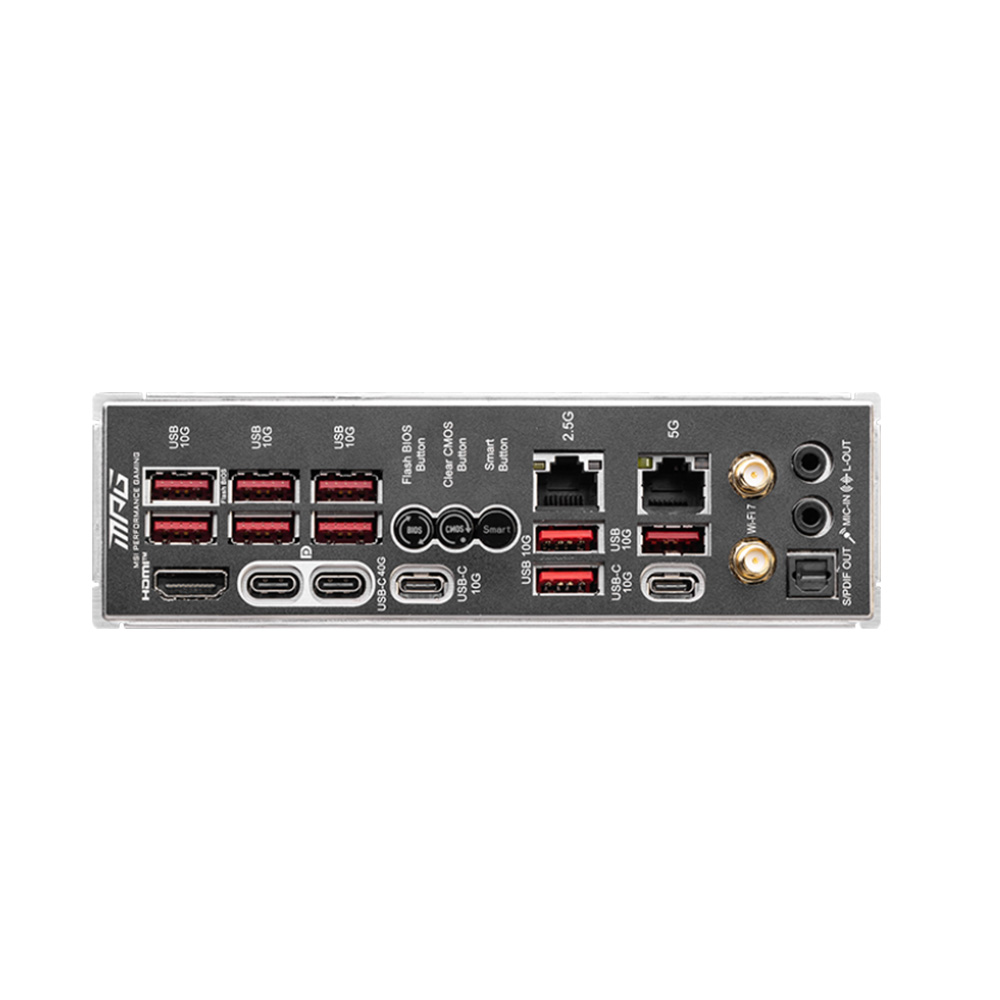

BACK PANEL USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out

LAN / Wireless 1x Realtek®8126 5G LAN 1x Realtek®8125 2.5G LAN Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth®5.4**, MLO, 4KQAM

Kích cỡ ATX 243.84mmx304.8mm

Mainboard MSI MPG X870E CARBON WIFI DDR5
