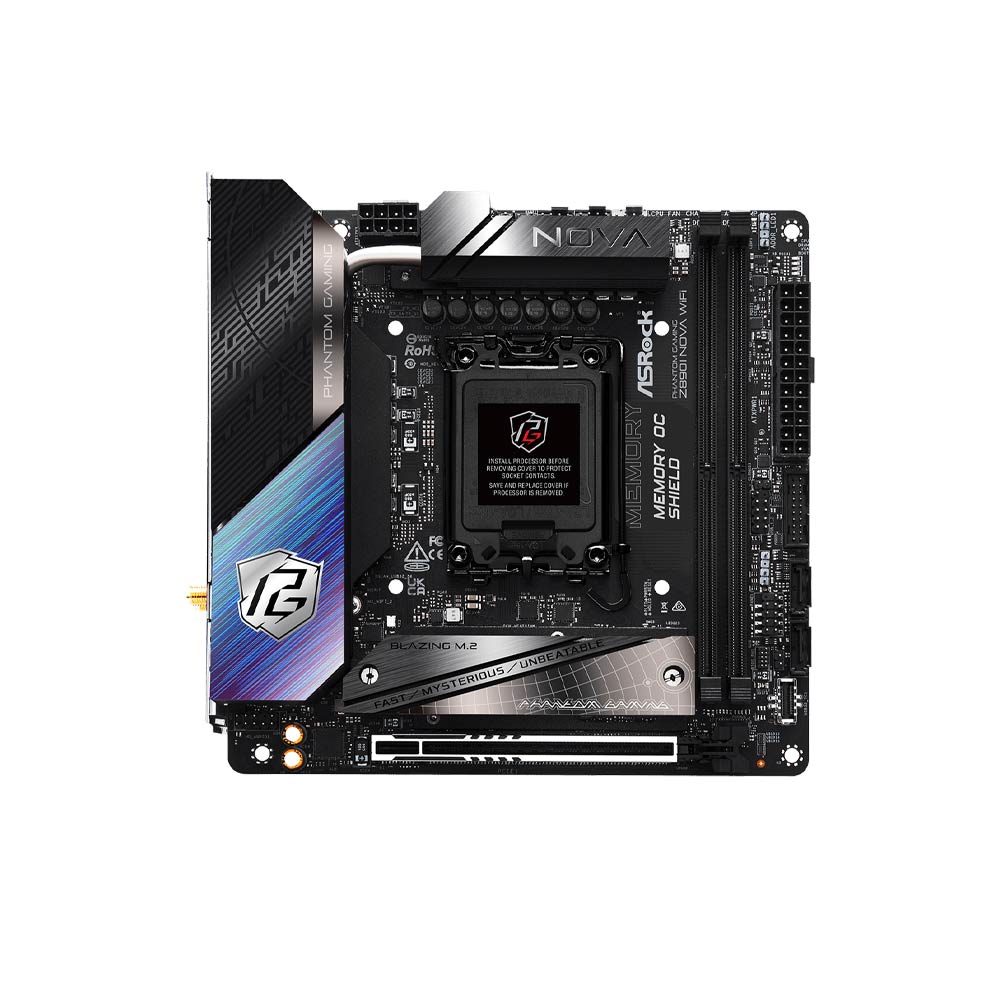

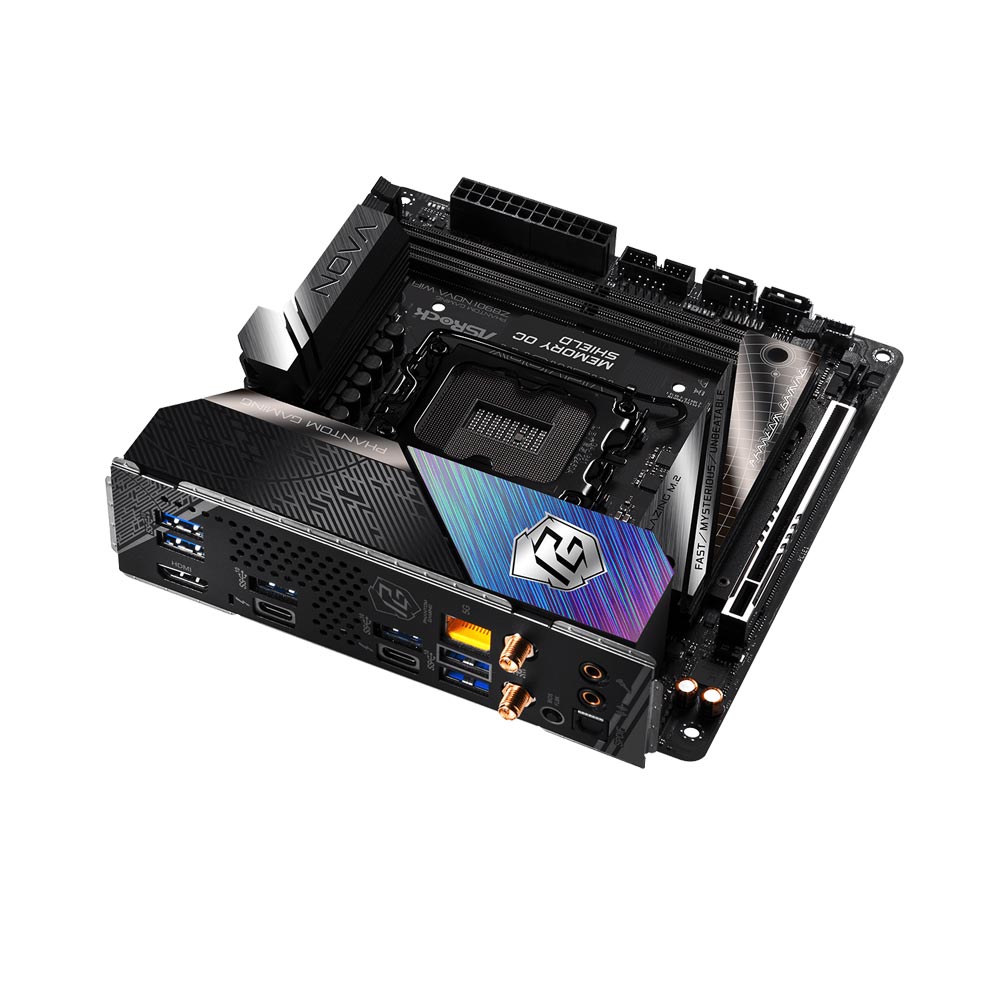

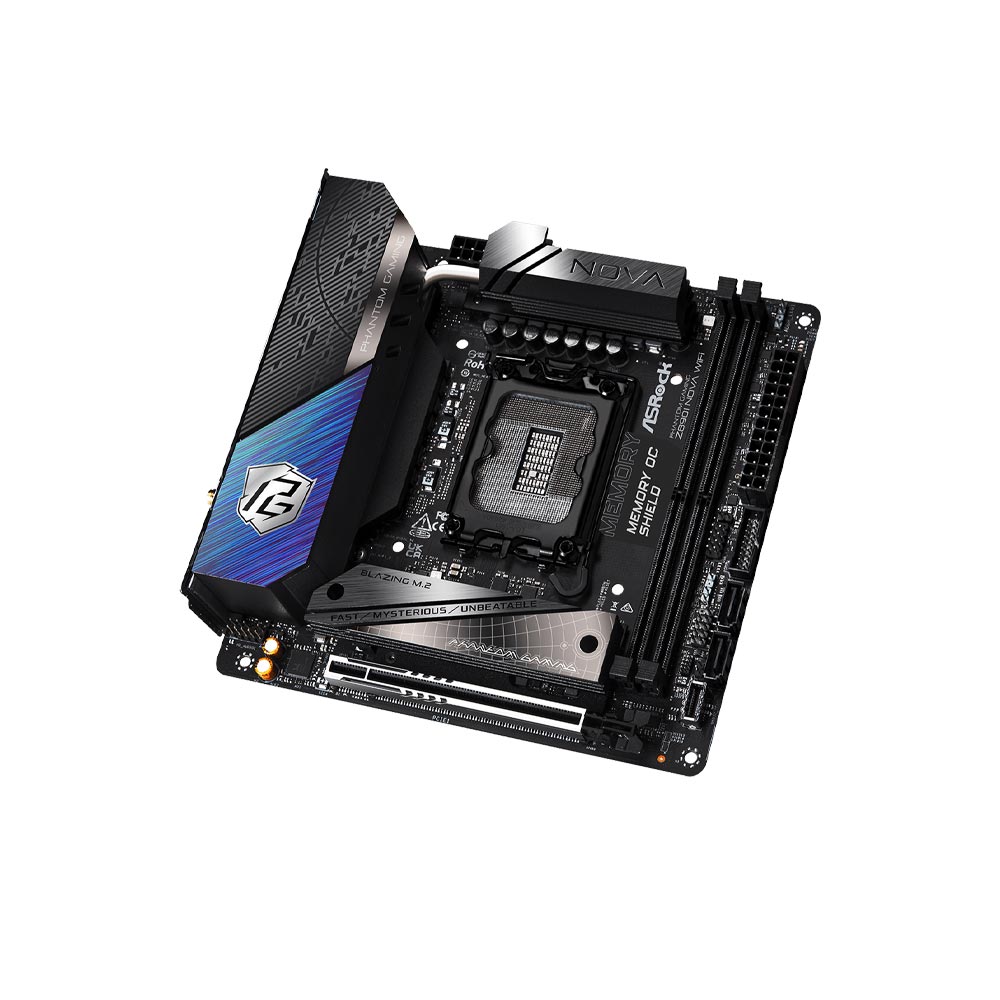

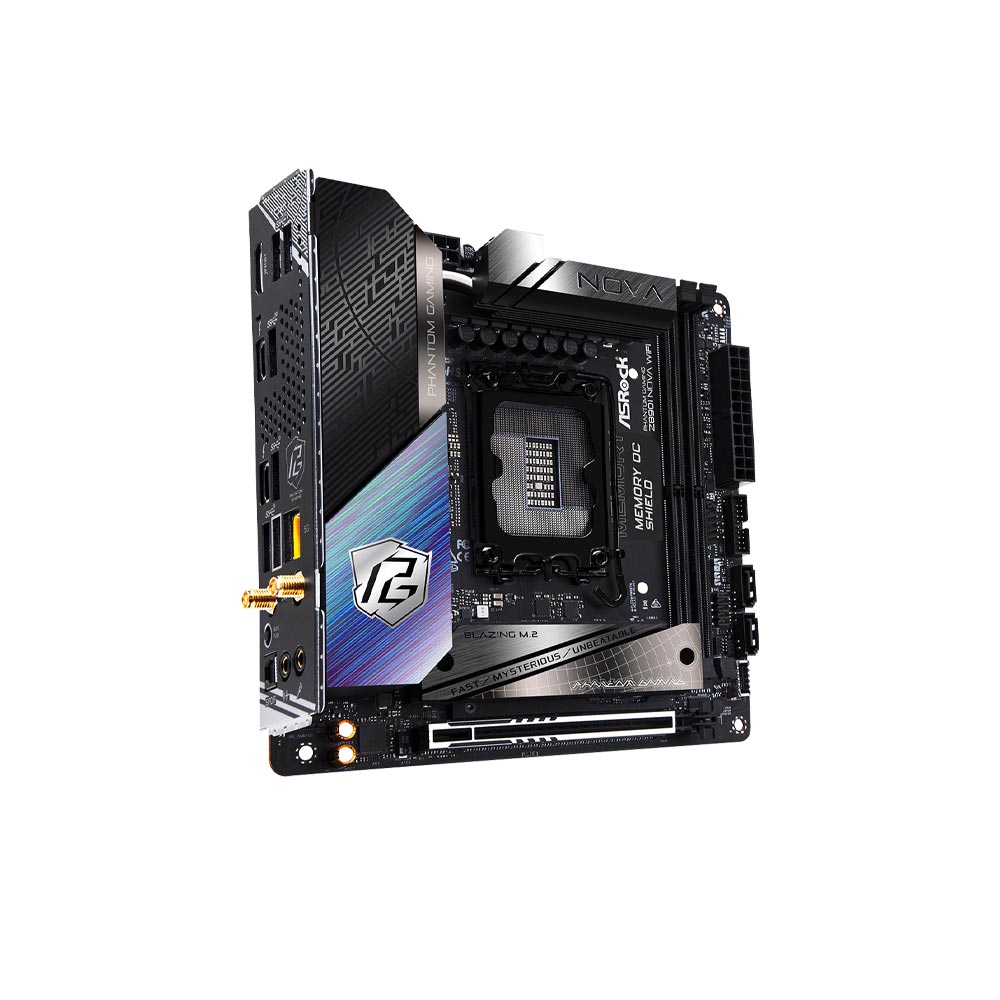

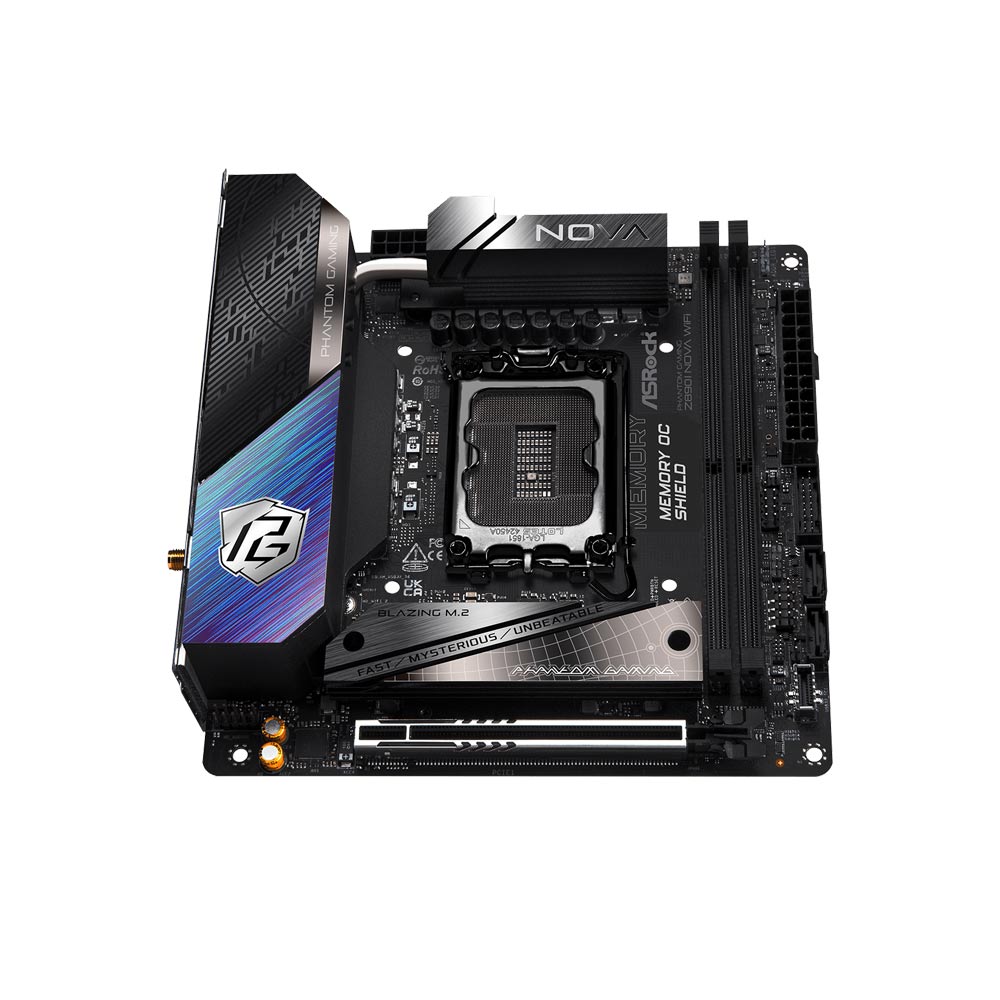

Name: Mainboard Asrock Z890I Nova WiFi DDR5 (Wifi+Bluetooth+Thunderbolt 4)
Brand: Intel
SKU: 1415
Availability: InStock
Rating: 4 (860 reviews)

Mainboard Asrock Z890I Nova WiFi DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Mã SP: SP1415

4 đánh giá Lượt xem: 860

CPU: Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM); Supports Intel Hybrid Technology; Supports Intel Turbo Boost Max 3.0 Technology; Supports Intel Thermal Velocity Boost (TVB); Supports Intel Adaptive Boost Technology (ABT); Integrated NPU for dedicated AI acceleration

Kích thước: Mini-ITX

Khe cắm RAM: 2 khe (Tối đa 128GB)

Khe cắm mở rộng: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Khe cắm ổ cứng: 3 x M.2 slots and 2 x SATA3 6Gb/s ports

Giá niêm yết:

Giá khuyến mại:

Liên hệ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asrock Z890I Nova WiFi DDR5 (Wifi+Bluetooth+Thunderbolt 4)

Liên hệ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asrock

CPU - Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration

Chipset Intel Z890

RAM hỗ trợ - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 9466+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB* - Supports Intel® Extreme Memory Profile (XMP) 3.0x

Khe cắm mở rộng CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Ổ cứng hỗ trợ CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 2 x SATA3 6.0 Gb/s Connectors

Connector - 1 x Thermistor Cable Header - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Headers (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

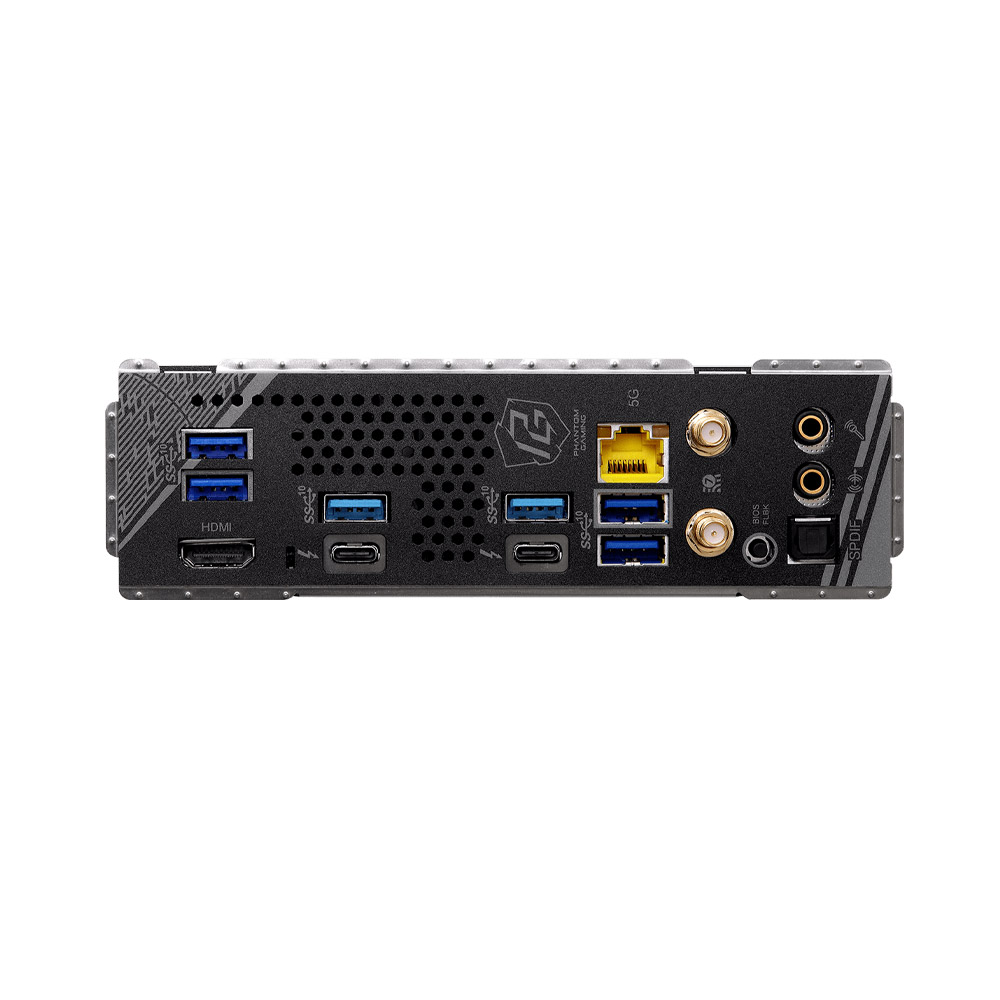

Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol) - 1 x Optical SPDIF Out Port - 6 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)

LAN - Wireless LAN LAN: - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 Wireless LAN: - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 320MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO

Kích cỡ - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 10 Layer PCB - 2oz Copper PCB
