Name: Mainboard Asus PRO WS WRX90E-SAGE SE DDR5
Brand: ASUS
SKU: 2300
Price: 35999000 VND
Availability: InStock
Rating: 3 (183 reviews)

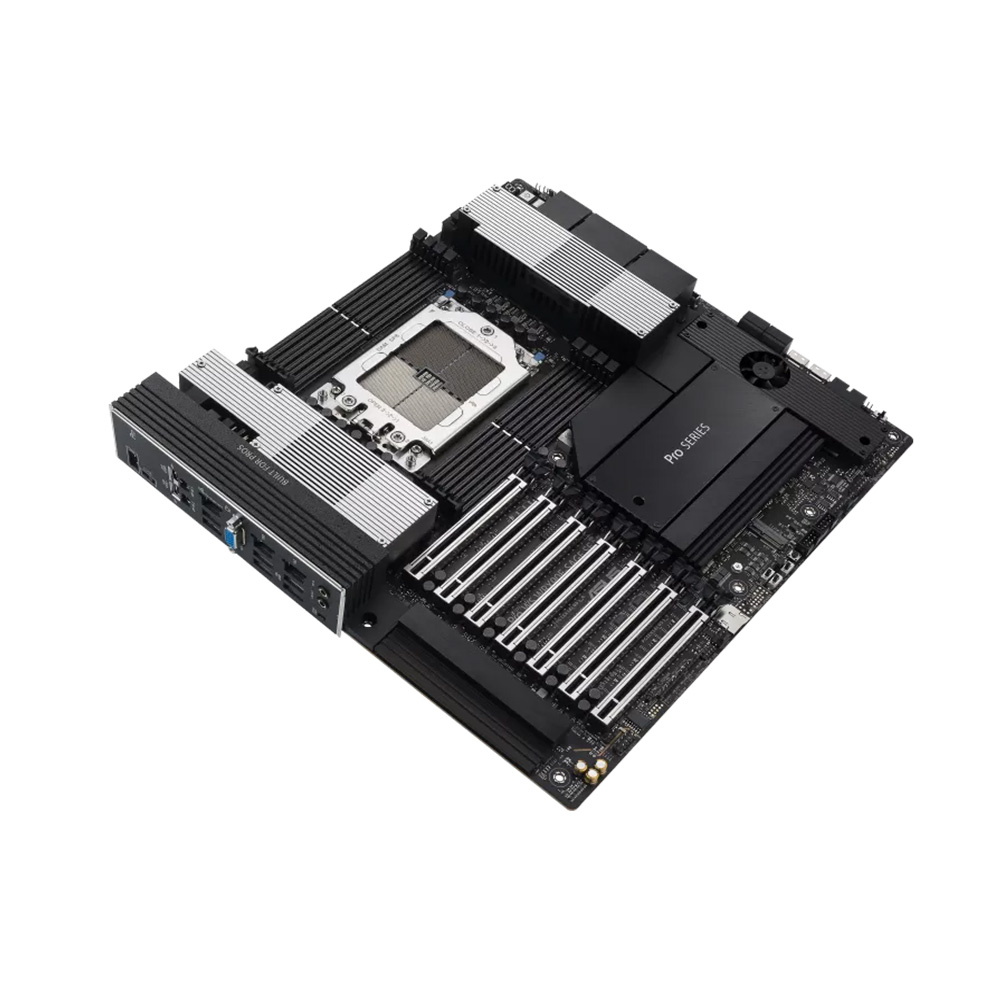

Mainboard Asus PRO WS WRX90E-SAGE SE DDR5

Mã SP: SP2300

3 đánh giá Lượt xem: 183

Socket: AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series

Kích thước: EEB Form Factor

Khe cắm RAM: 8 x DIMM slots, DDR5, chỉ hỗ trợ ram ECC Registered Memory

Khe cắm mở rộng: 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode)

Khe cắm ổ cứng: 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~39,999,000 đ~~

Giá khuyến mại:

35,999,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PRO WS WRX90E-SAGE SE DDR5

35,999,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Asus

Model Pro WS WRX90E-SAGE SE

CPU hỗ trợ AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*

Chipset AMD WRX90 Chipset

RAM hỗ trợ 8 x DIMM slots, DDR5, ECC Registered Memory* 8 Channel Memory Architecture

Khe cắm mở rộng AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode)

Ổ cứng hỗ trợ Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header

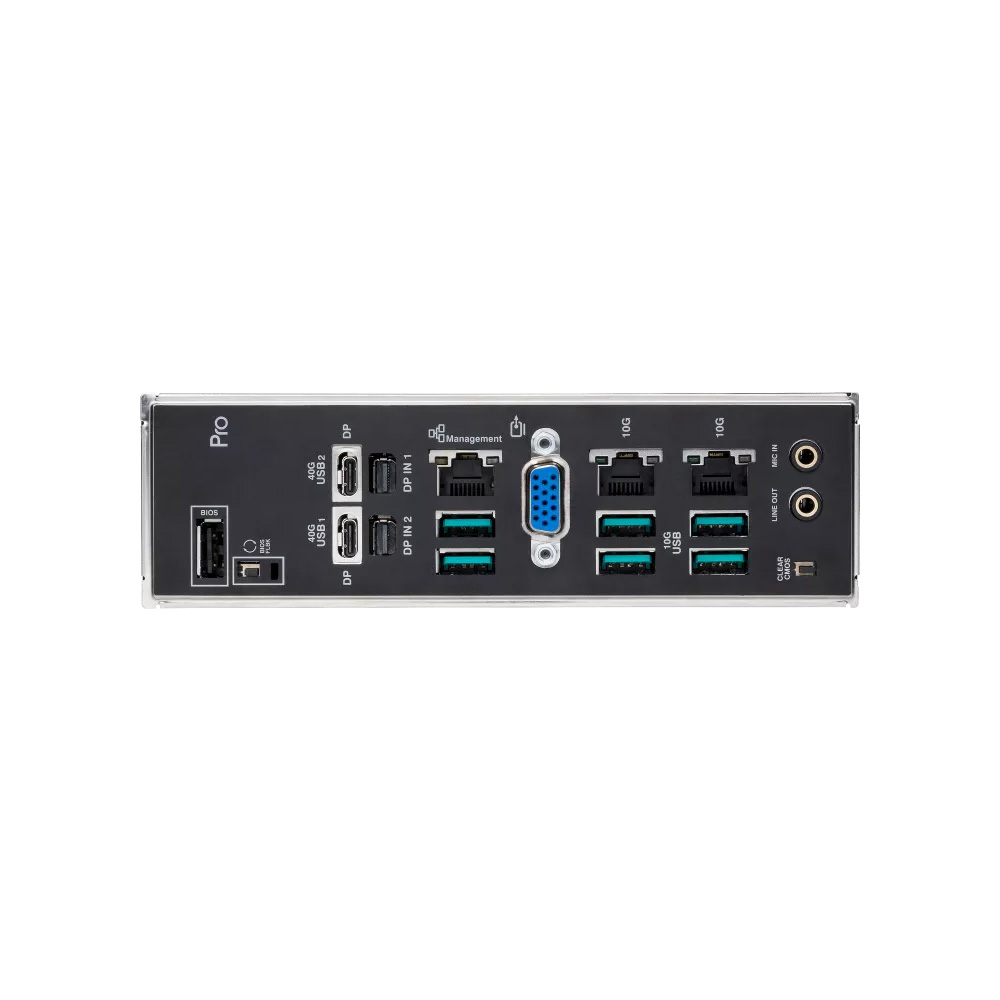

Cổng kết nối (Back Panel) 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel®dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button

LAN / Wireless 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel dual 10Gb Ethernet ASUS LANGuard

Kích cỡ EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)

Mainboard Asus PRO WS WRX90E-SAGE SE DDR5
