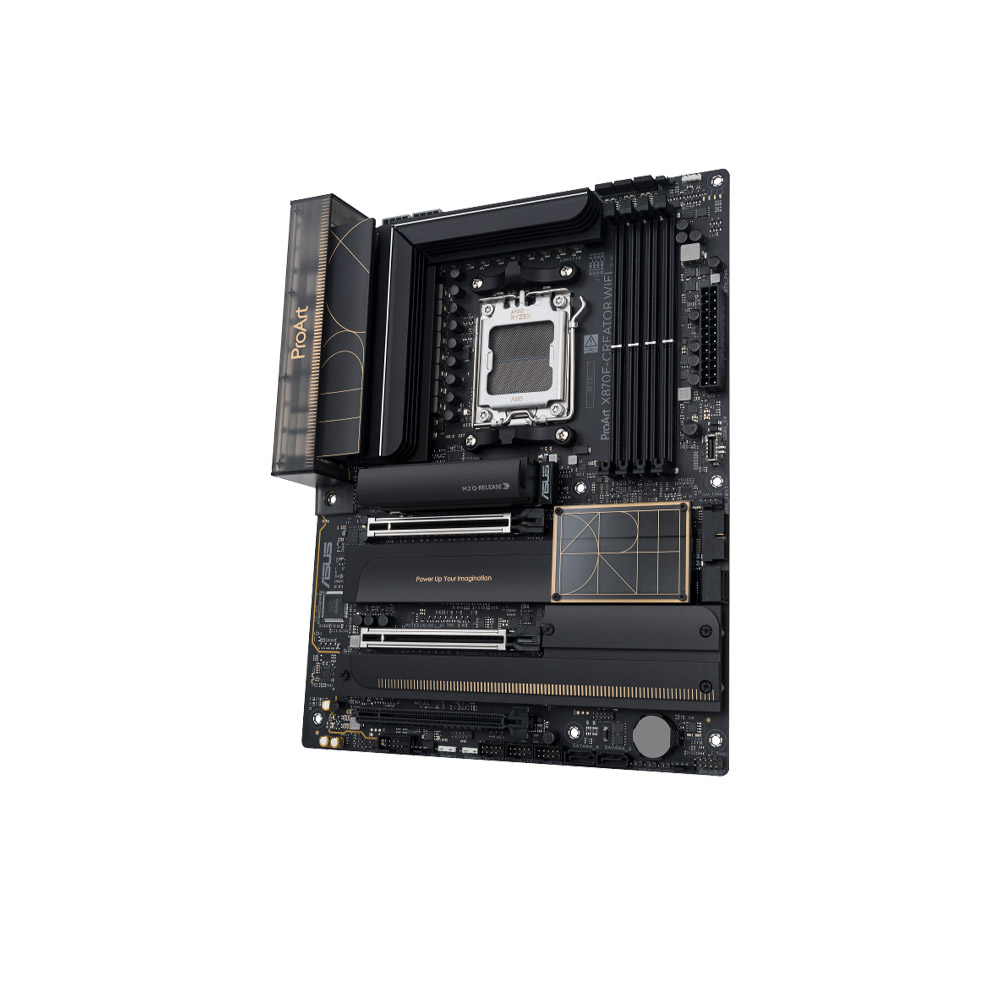

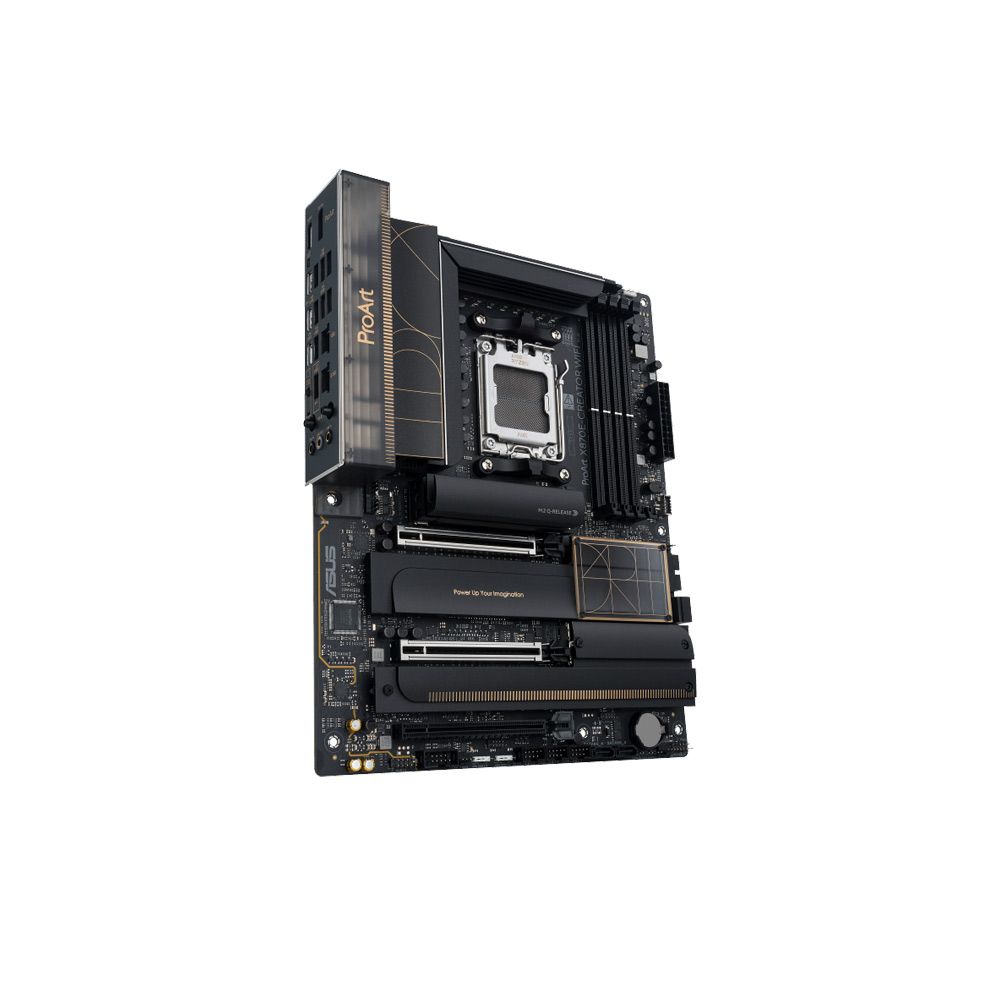

Name: Mainboard Asus PROART X870E-CREATOR WIFI DDR5
Brand: ASUS
SKU: 1701
Price: 14999000 VND
Availability: InStock
Rating: 5 (239 reviews)

Mainboard Asus PROART X870E-CREATOR WIFI DDR5

Mã SP: SP1701

5 đánh giá Lượt xem: 239

Socket: AMD Socket AM5 for AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 192GB)

Khe cắm mở rộng: 2 x PCIe 5.0 x 16 slot (supports x16 or x8/x8 or x8/x4/x4), 1 x PCIe 4.0 x16 slot (supports x8 mode), 1 x PCIe 4.0 x16 slot (supports x4 mode)

Khe cắm ổ cứng: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Giá niêm yết: ~~16,599,000 đ~~

Giá khuyến mại:

14,999,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Asus PROART X870E-CREATOR WIFI DDR5

14,999,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ AMD

Chipset AMD X870E

RAM hỗ trợ 4 x DIMM slots, max. 192GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™)

Khe cắm mở rộng AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)

Ổ cứng hỗ trợ Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports

Cổng kết nối (Internal) Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

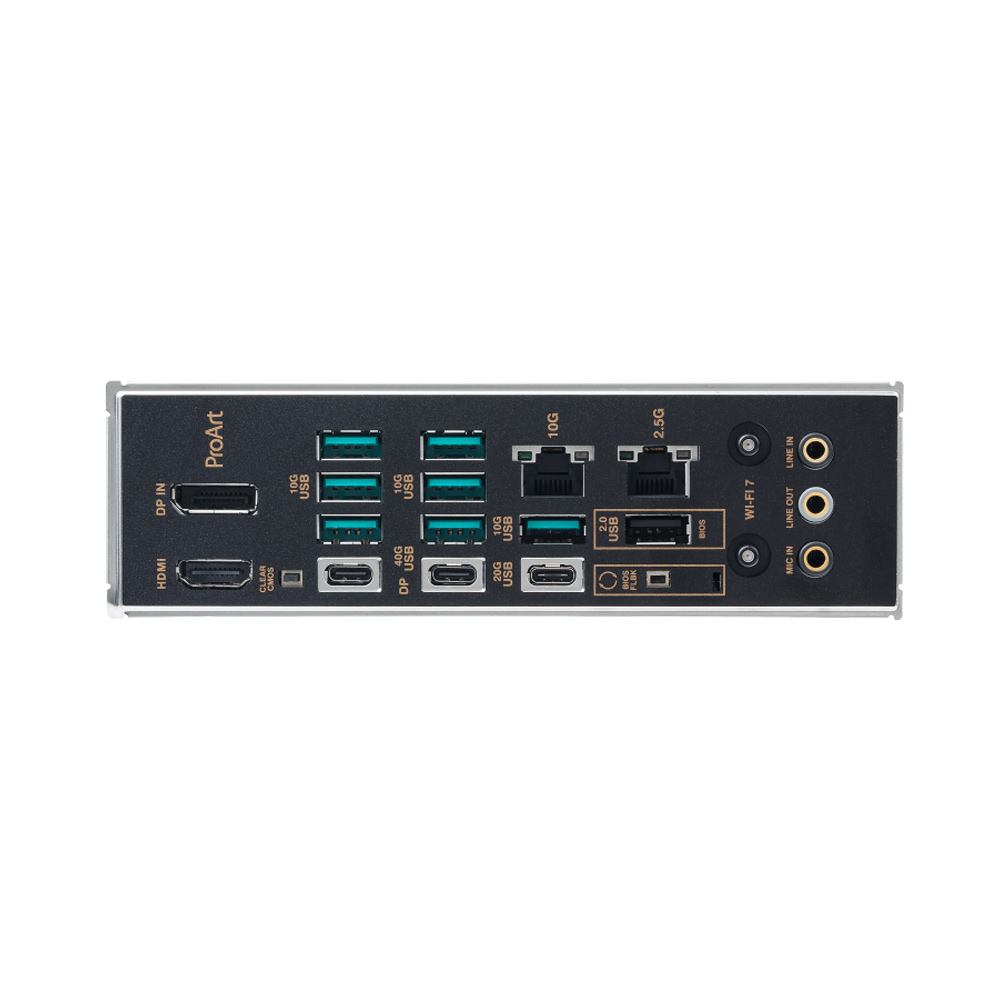

Cổng kết nối (Back Panel) 2 x USB4®(40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell®AQtion 10Gb Ethernet 1 x Intel®2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button

LAN / Wireless 1 x Marvell®AQtion 10Gb Ethernet 1 x Intel®2.5Gb Ethernet ASUS LANGuard Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth®v5.4***

Kích cỡ ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Mainboard Asus PROART X870E-CREATOR WIFI DDR5
