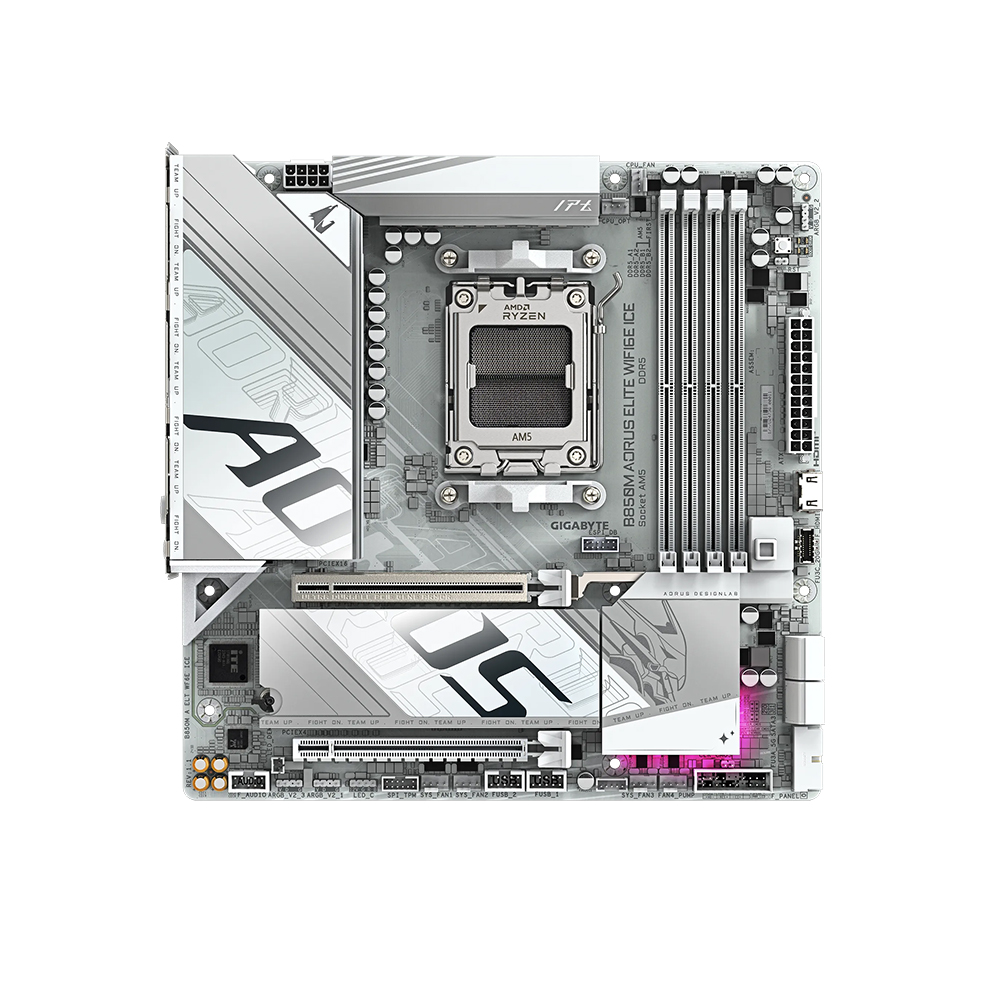

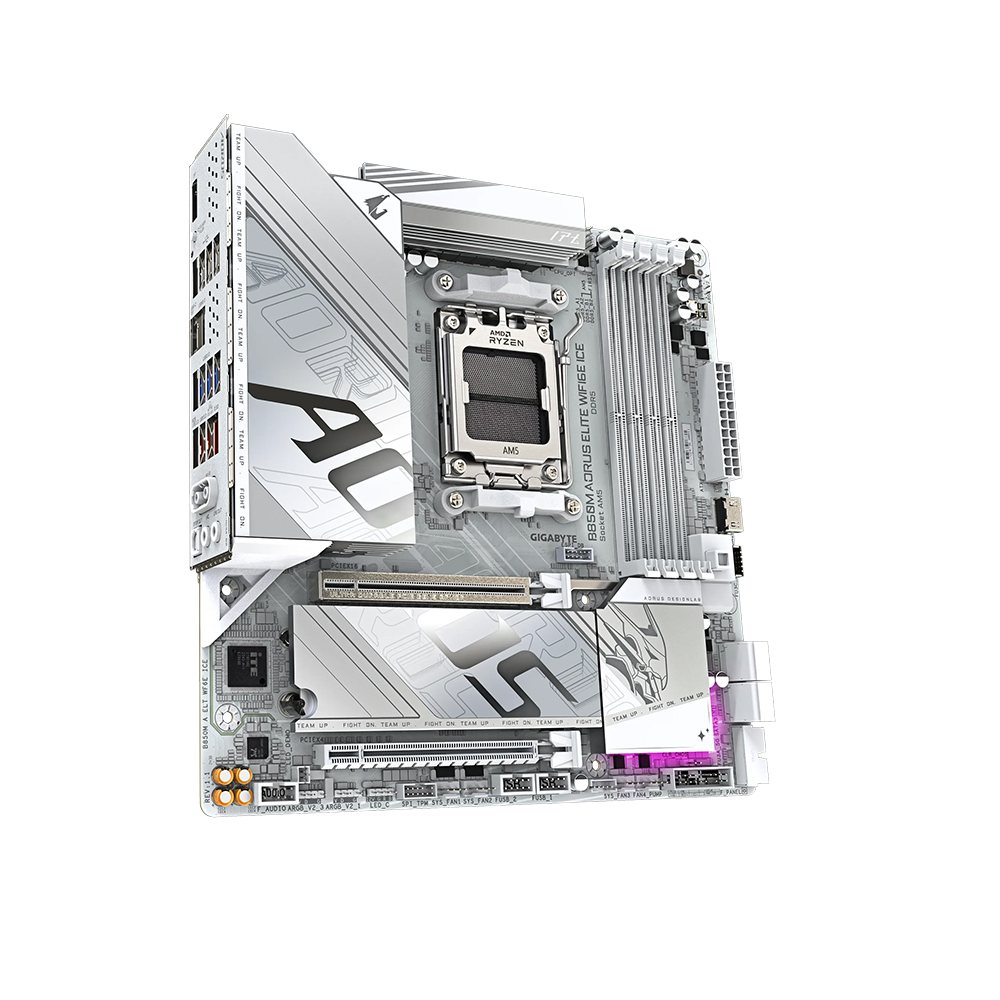

Name: Mainboard Gigabyte B850M AORUS ELITE WIFI 6E ICE DDR5
Brand: Gigabyte
SKU: 1606
Price: 6799000 VND
Availability: InStock
Rating: 4 (805 reviews)

Mainboard Gigabyte B850M AORUS ELITE WIFI 6E ICE DDR5

Mã SP: SP1606

4 đánh giá Lượt xem: 805

Socket: AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 256GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot

Khe cắm ổ cứng: 2 x M.2 slots and 4 x SATA 6Gb/s connectors

Giá niêm yết: ~~7,479,000 đ~~

Giá khuyến mại:

6,799,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte B850M AORUS ELITE WIFI 6E ICE DDR5

6,799,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng ASUS

CPU hỗ trợ AMD

Chipset AMD B850

RAM hỗ trợ Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Khe cắm mở rộng 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x reset button1 x reset jumper1 x Clear CMOS jumper

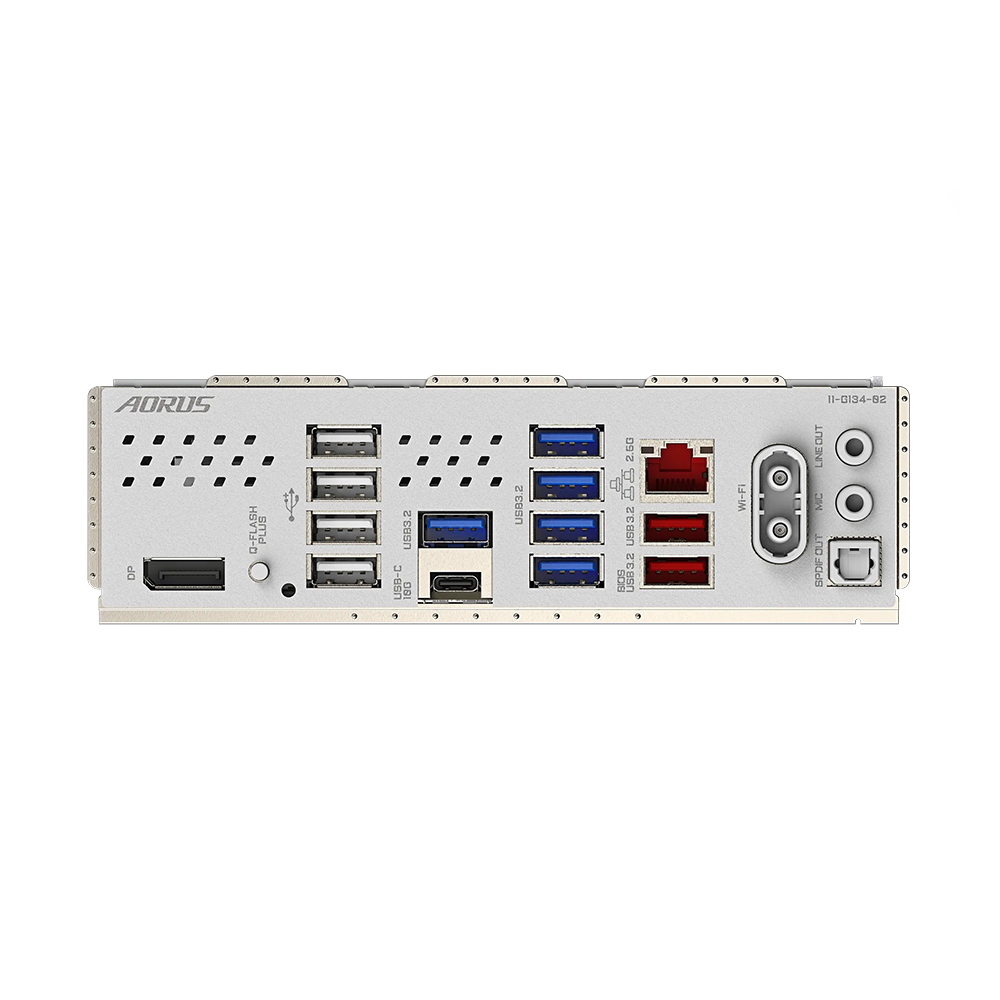

Cổng kết nối (Back Panel) 1 x DisplayPort (Note)1 x Q-Flash Plus button4 x USB 2.0/1.1 ports5 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector

LAN / Wireless Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Realtek® Wi-Fi 6E RTL8852CE- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)

Kích cỡ Micro ATX Form Factor; 24.4cm x 24.4cm

Mainboard Gigabyte B850M AORUS ELITE WIFI 6E ICE DDR5
