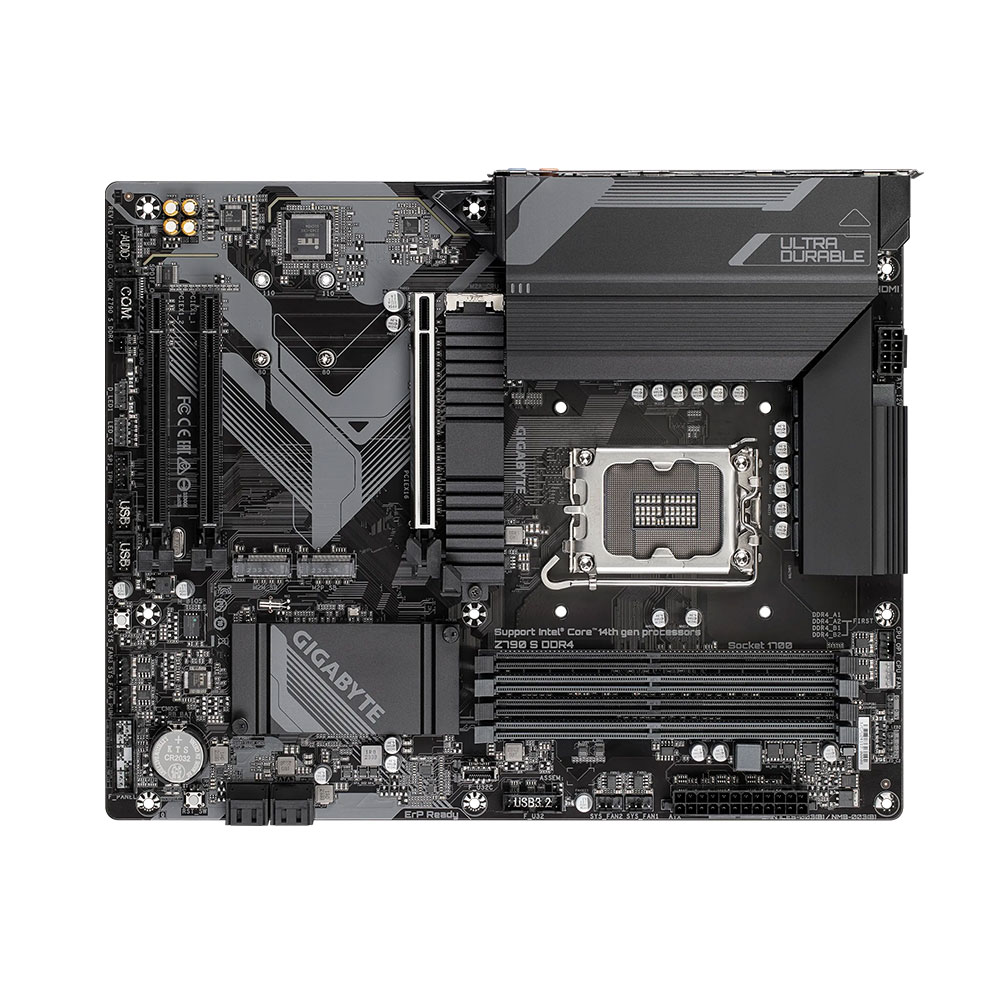

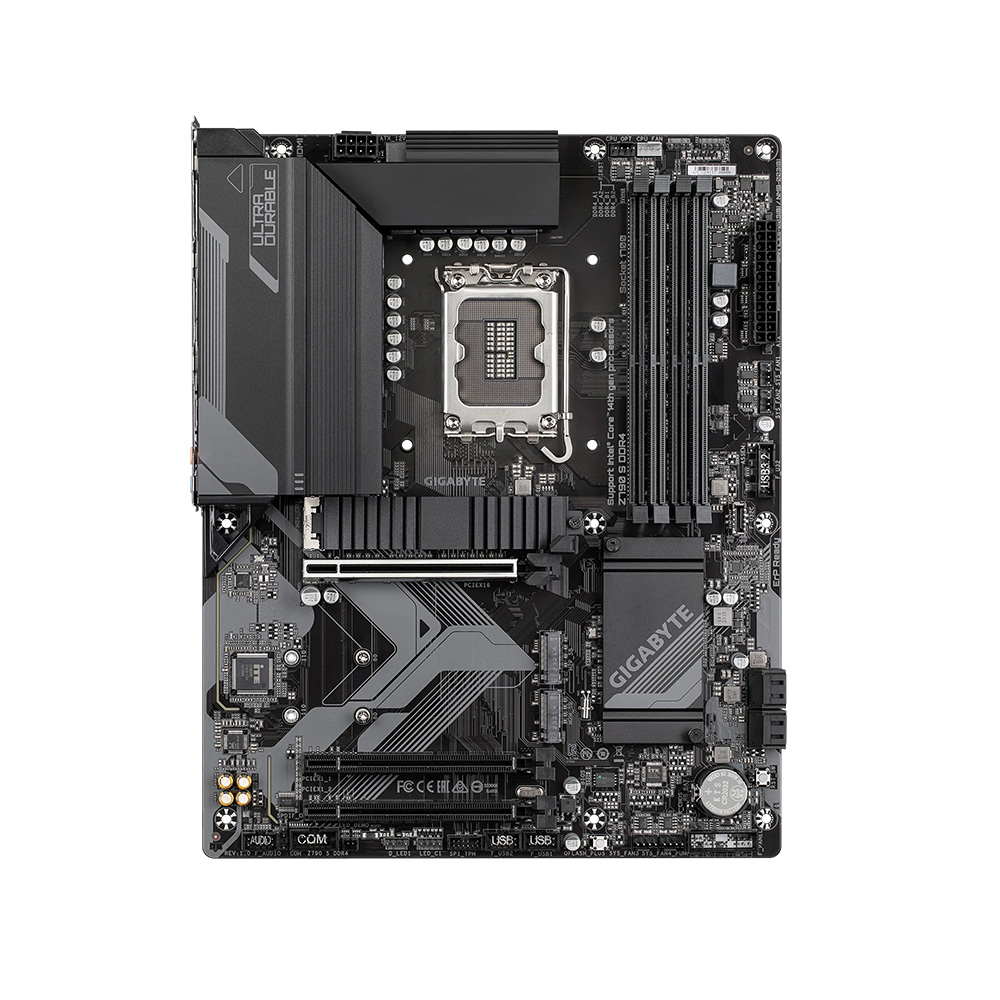

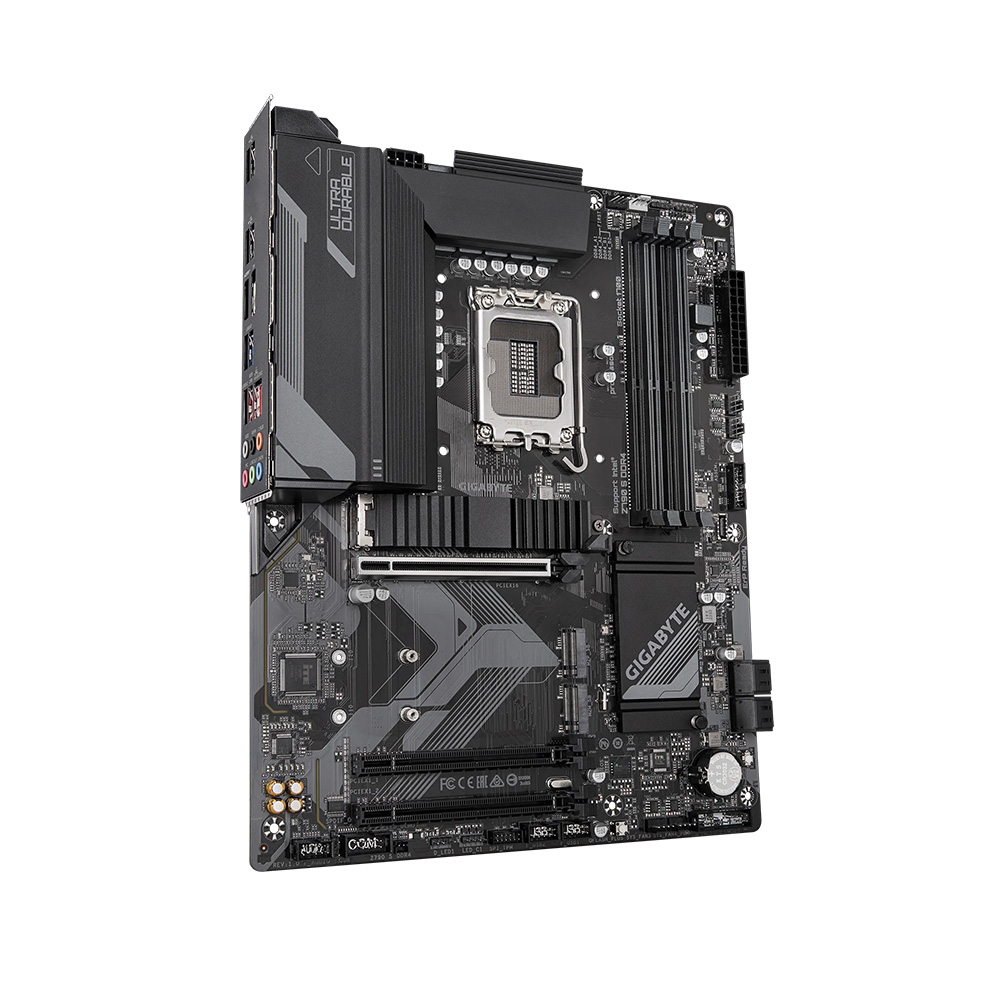

Name: Mainboard Gigabyte Z790 S DDR4
Brand: Gigabyte
SKU: 1716
Price: 4899000 VND
Availability: InStock
Rating: 5 (350 reviews)

Mainboard Gigabyte Z790 S DDR4

Mã SP: SP1716

5 đánh giá Lượt xem: 350

Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14

Kích thước: ATX

Khe cắm RAM: 4 khe (Tối đa 128 GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 2 x PCI Express x16 slots

Khe cắm ổ cứng: 1 x M.2 connector, 2 x M.2 connectors, 4 x SATA 6Gb/s connectors

Giá niêm yết: ~~5,799,000 đ~~

Giá khuyến mại:

4,899,000 đ [Giá đã có VAT]

Tuỳ chọn thuộc tính

Mainboard Gigabyte Z790 S DDR4

4,899,000 đ

Mô tả

Sản phẩm Bo mạch chủ

Tên Hãng Gigabyte

CPU hỗ trợ Intel

Chipset Z790

RAM hỗ trợ 4 x DDR4 DIMM sockets supporting up to 128 GB

Khe cắm mở rộng CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Ổ cứng hỗ trợ CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

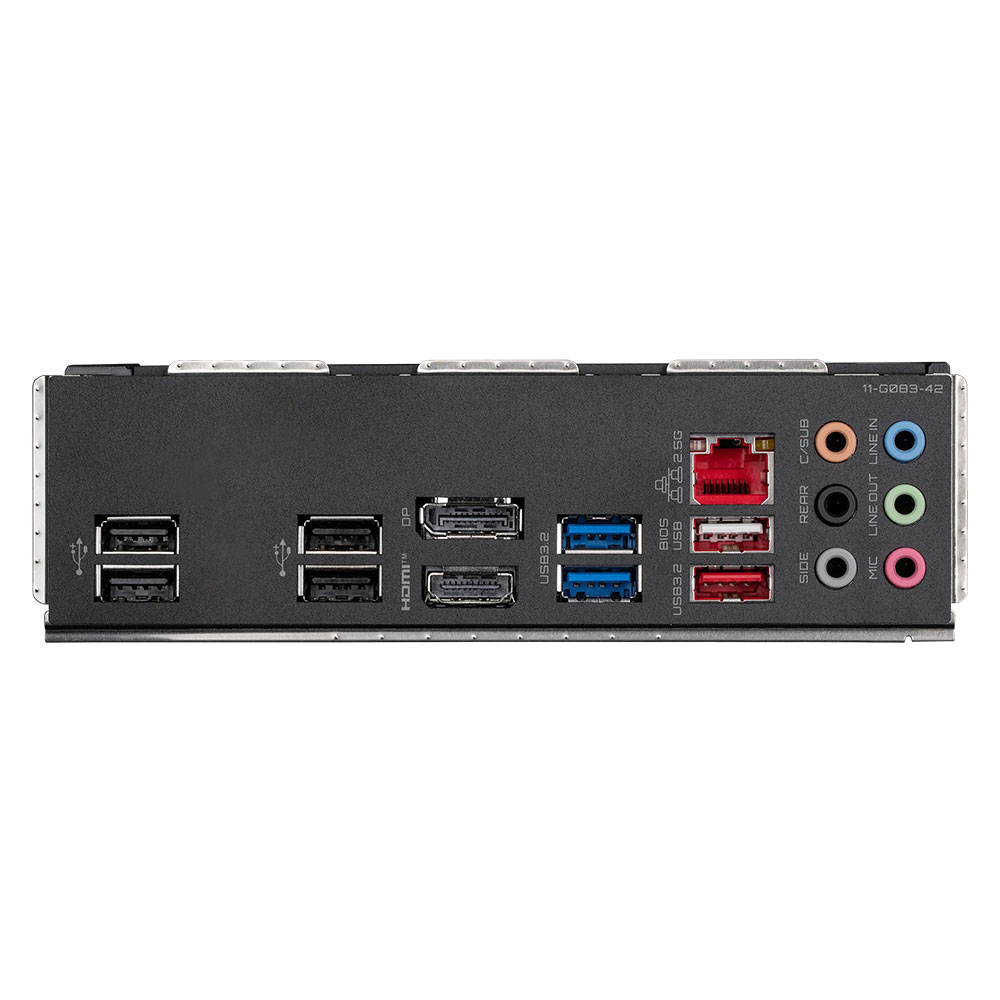

Cổng kết nối (Back Panel) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks

LAN / Wireless Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ ATX Form Factor; 30.5cm x 24.4cm

Mainboard Gigabyte Z790 S DDR4
